DEF Lines and Pump, 15.0 L Engine ( - 800140)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	3	Flange Nut	M8
2	03M7295	3	Bolt	M8 X 90
3	R184060	1	Cover	-
4	R184066	1	Clamp	-
5	R184863	4	Hose Clamp	-
6	19M7798	3	Screw	M8 X 40
7	T184924	4	Hose Clamp	-
8	R202160	8	Clamp	-
9	38H5002	1	Adapter Fitting	-
10	H121163	2	Strap	-
11	H128515	6	Clamp	-
12	19M7800	4	Screw	M8 X 50
13	38H5004	2	Adapter Fitting	-
14	38H5017	2	Elbow Fitting	-
15	RE572217	1	Reservoir	-
16	R543495	1	Fitting	-
17	51M7043	3	O-Ring	15.300 X 2.200 mm
18	19M7866	4	Screw	M8 X 20
19	RE223627	1	Hose Fitting	-
20	38H5016	2	Elbow Fitting	INCLUDES 51M7041
21	51M7041	3	O-Ring	11.300 X 2.200 mm
22	T77613	4	O-Ring	-
23	38H5145	1	Elbow Fitting	-
24	R542898	1	Manifold	-
25	R551016	1	Hose	DEF Doser Coolant
26	H216169	1	Breather	-
27	H216170	1	Fitting	-
28	R551084	1	Hose	DEF Vent
29	19M7865	3	Screw	M8 X 16
30	T269641	1	Clamp	-
31	RE581139	1	DEF Line	DEF Fluid Pressure Line INCLUDES 57M9731, SUB FOR RE572877, ALSO ORDER (4) L156247 AND (3) 19M7865
32	RE572613	1	Line	Doser Coolant, ATD Upper
33	R545614	1	Line	Doser Coolant, ATD Lower
34	R551014	1	Hose	DEF Doser Coolant
35	REC432946900	1	DEF Dosing Unit Pump	ORDER DZ117135; SUB FOR RE569815
35	DZ117135	1	DEF Dosing Unit Pump	-
36	RE572141	1	DEF Line	Suction INCLUDES 57M9776
37	RE572142	1	DEF Line	Backflow INCLUDES 57M9778
38	28H3390	1	Spacer	0.364" X 0.540" X 1"
39	57M9940	3	Elec. Connector Accessory	-
40	E53830	5	Clamp	-
41	57M10233	5	Tie Band	-
42	Z75620	1	Clamp	-
43	28H3470	1	Spacer	0.364" X 0.540" X 2"
44	19M7803	1	Screw	M8 X 70
45	RE575356	1	Line	Coolant DEF Tank To Manifold Undercab ORDER RE579562
46	R552817	1	Hose	Coolant Undercab To Doser
47	RE575355	1	Line	ORDER RE579561
47	RE579561	1	Line	Coolant Manifold To DEF Tank Undercab
48	R552818	1	Hose	Coolant Doser To Undercab
49	28H3392	1	Washer	0.364" X 0.540" X 5/16"
50	19M7897	2	Screw	M8 X 35
51	DZ100304	1	Filter	-
52	N410902	1	Clamp	-
53	R554296	1	Hose	Coolant Filter To DEF Header
54	R554295	1	Hose	Coolant Undercab To Filter
55	R554297	1	Hose	DEF Header Coolant Return
56	RE580047	1	Bracket	-
56	RE576951	1	Bracket	ORDER RE580047
57	RE576870	1	Line	ORDER RE579563
57	RE579563	1	Line	Coolant Manifold To Doser
58	RE576871	1	Line	ORDER RE579564
58	RE579564	1	Line	Coolant Doser To Manifold
59	51M7045	3	O-Ring	19.300 X 2.200 mm
60	T77932	2	O-Ring	-
61	T77857	2	O-Ring	-
62	57M9778	1	Elec. Connector Housing	-
63	REC288029900	1	Adapter Fitting	-
64	REC288030000	1	Adapter Fitting	-
65	REC550621800	1	Adapter Fitting	SUB FOR REC432947100
66	REC288039600	1	Cap	-
67	DZ114640	1	Filter Kit	DEF Supply Module Filter SUB FOR RE554498
68	57M9777	1	Elec. Connector Housing	USE WITH RE572877
68	57M9731	1	Elec. Connector Housing	USE WITH RE581139
69	57M9776	1	Elec. Connector Housing	-
70	RE579562	1	Line	Coolant DEF Tank To Manifold Undercab
71	REC288030200	3	O-Ring	-

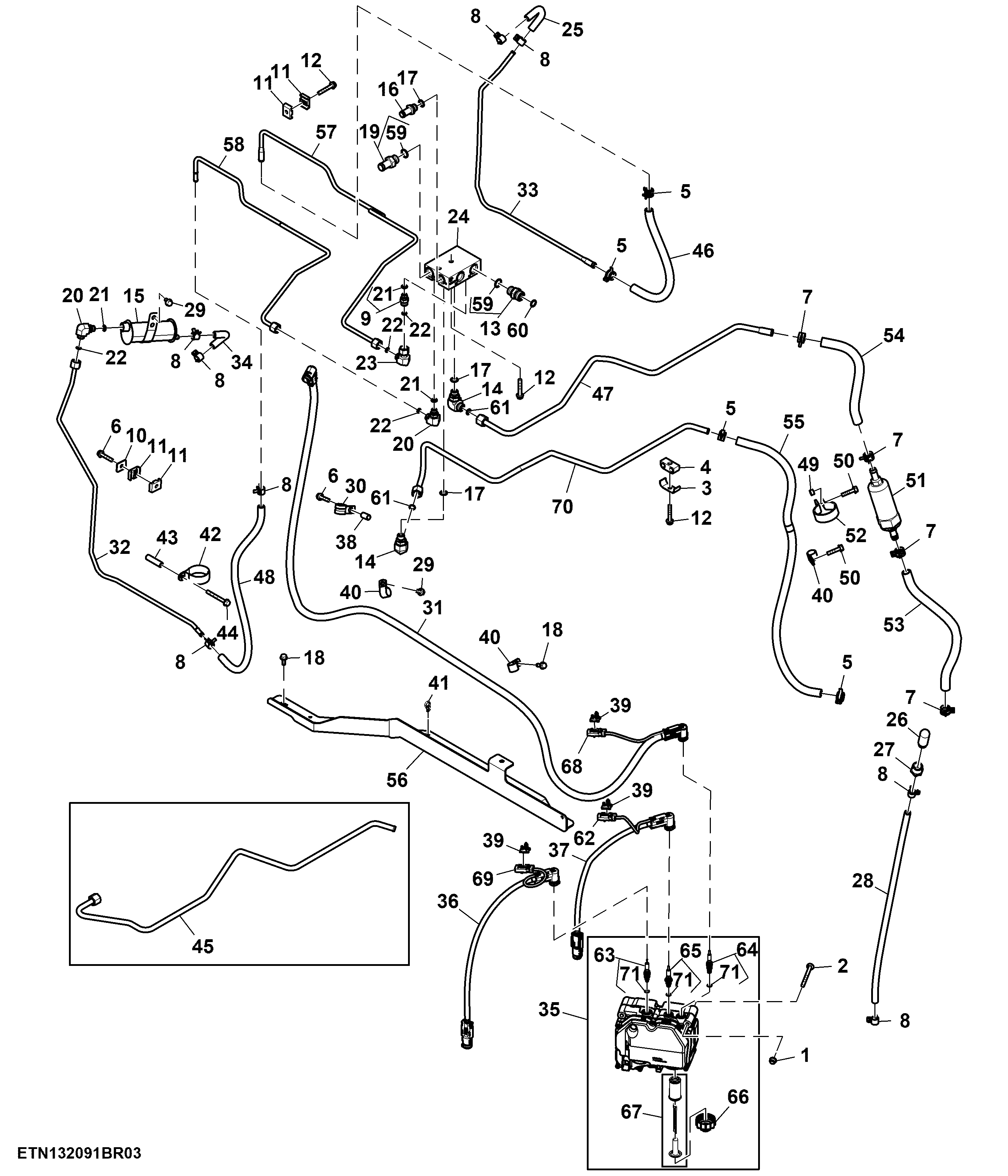

DEF Lines and Pump, 15.0 L Engine ( - 800140)
