Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (4/5) (804101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587339	1	Chassis Wiring Harness	-
1	RE584674	1	Chassis Wiring Harness	-
1	RE595029	1	Chassis Wiring Harness	-
1	RE591765	1	Chassis Wiring Harness	-
2	57M8919	1	Elec. Connector Housing	Front Right Wheel Angle Sensor B264
2	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
3	57M9772	1	Elec. Connector Housing	Fuel Level Sensor B692
3	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
4	57M8924	1	Elec. Connector Housing	Rear Differential Lock Solenoid Y666
4	57M8633	1	Elec. Connector Accessory	-
4	RWA11097	1	Repair Wire Assembly	Cavity A, B
5	57M8016	1	Elec.Connect Locking Device	-
5	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
5	57M10530	1	Elec. Connector Housing	Implement CAN X219
6	57M14213	1	Elec. Connector Housing	Implement Connector X221
6	57M8884	1	Elec. Connector Accessory	-
6	RWA10820	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
7	57M9514	1	Elec. Connector Housing	Front Chassis To Fender Lights X321A
7	RWA11058	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16, 17, 20, 21, 22, 23, 27, 28, 29, 30, 31
8	RWA11118	1	Repair Wire Assembly	Cavity 1, 3, 4
8	RWA11053	1	Repair Wire Assembly	Cavity 18, 20, 23, 24, 27, 29
8	57M8795	1	Elec. Connector Housing	Front Chassis To Rear Chassis-2 X320A
8	RWA11058	1	Repair Wire Assembly	Cavity 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 19, 21, 22, 25, 26, 28
9	57M9383	3	Elec. Connector Accessory	-
10	57M8919	1	Elec. Connector Housing	Wheel Angle Sensor B252
10	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
11	57M12676	1	Elec. Connector Terminal	Chassis Ground 3 XGND4C
12	57M9406	1	Elec. Connector Accessory	Ground Splice Pack SPK01
12	57M8326	1	Electrical Connector Assy	-
12	57M10432	1	Elec.Connect Locking Device	-
12	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
13	57M8611	1	Electrical Connector Assy	-
14	R44302	3	Tie Band	-
15	57M7262	1	Elec. Connector Housing	Radar Sensor B921
15	CB01489384	1	Elec. Connector Accessory	-
15	RWA11083	1	Repair Wire Assembly	Cavity C, E, F
16	57M8625	1	Elec. Connector Housing	DR Axle Supply Pressure B711
16	57M8624	1	Elec.Connect Locking Device	-
16	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
16	57M11529	1	Elec. Connector Accessory	Cap B711A
17	RWA11082	1	Repair Wire Assembly	Cavity A, B
17	57M7985	1	Electrical Connector Assy	Hyd Oil Filter Restriction Switch S551
18	57M9556	2	Elec. Connector Accessory	-
19	RWA11082	1	Repair Wire Assembly	Cavity A, B
19	57M7985	1	Electrical Connector Assy	Axle Filter Restrict Switch S555
20	57M7328	1	Elec. Connector Housing	Axle Filter Restrict Switch S555A
21	57M10302	1	Elec. Connector Housing	Power Module X570
21	RWA11136	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6
22	57M9512	1	Elec. Connector Housing	Step Interconnect X340A_15L
22	RWA11056	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31
23	57M9236	1	Clip	-
24	57M8035	1	Nut	-
25	57M9780	1	Elec. Connector Housing	Step Interconnect X339A_15L
25	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
26	57M9838	1	Elec. Connector Accessory	ORDER 57M15917
26	57M15917	1	Elec. Connector Accessory	-
27	57M9190	1	Clip	-
28	57M8897	1	Elec. Connector Terminal	Chassis Ground XGND4B
29	57M12124	1	Clamp	-
30	RE258807	12	Tie Band	-
31	57M10233	21	Tie Band	-
32	57M8910	1	Clip	-
33	57M12128	3	Clamp	-
34	57M7265	1	Elec. Connector Housing	Radar Sensor B921A
34	57M12072	1	Elec. Connector Accessory	-
35	57M10517	1	Elec. Connector Housing	Water In Fuel Sensor B5600-15L
35	57M8022	1	Elec.Connect Locking Device	-
35	RWA11116	1	Repair Wire Assembly	Cavity 1, 2
36	57M9779	1	Elec. Connector Housing	Battery Disconnect E502_15L
36	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
37	57M9837	1	Elec. Connector Accessory	ORDER 57M15493
37	57M15493	1	Elec. Connector Accessory	-
38	57M9775	1	Elec. Connector Housing	Cap E502A_15L
39	57M8873	1	Elec. Connector Terminal	Power KSW1-X3
40	57M8873	1	Elec. Connector Terminal	Ground KSW1-X4
41	57M8869	1	Elec. Connector Terminal	Ground Pick-Up XM101
42	57M8872	1	Elec. Connector Terminal	Fuel Neck Ground XGND3
43	57M8897	1	Elec. Connector Terminal	Chassis Ground 1 XGND4A
44	57M9780	1	Elec. Connector Housing	Interconnect To Transmission Harness USE WITH RE587339 OR RE591765 OR RE595029, XX331A
45	57M10156	1	Elec. Connector Accessory	USE WITH RE587339 OR RE591765 OR RE595029
46	57M10615	1	Elec. Connector Housing	Health Sensor Controller USE WITH RE587339 OR RE591765 OR RE595029, A401-J1
47	57M10613	1	Elec. Connector Housing	USE WITH RE587339 OR RE591765 OR RE595029

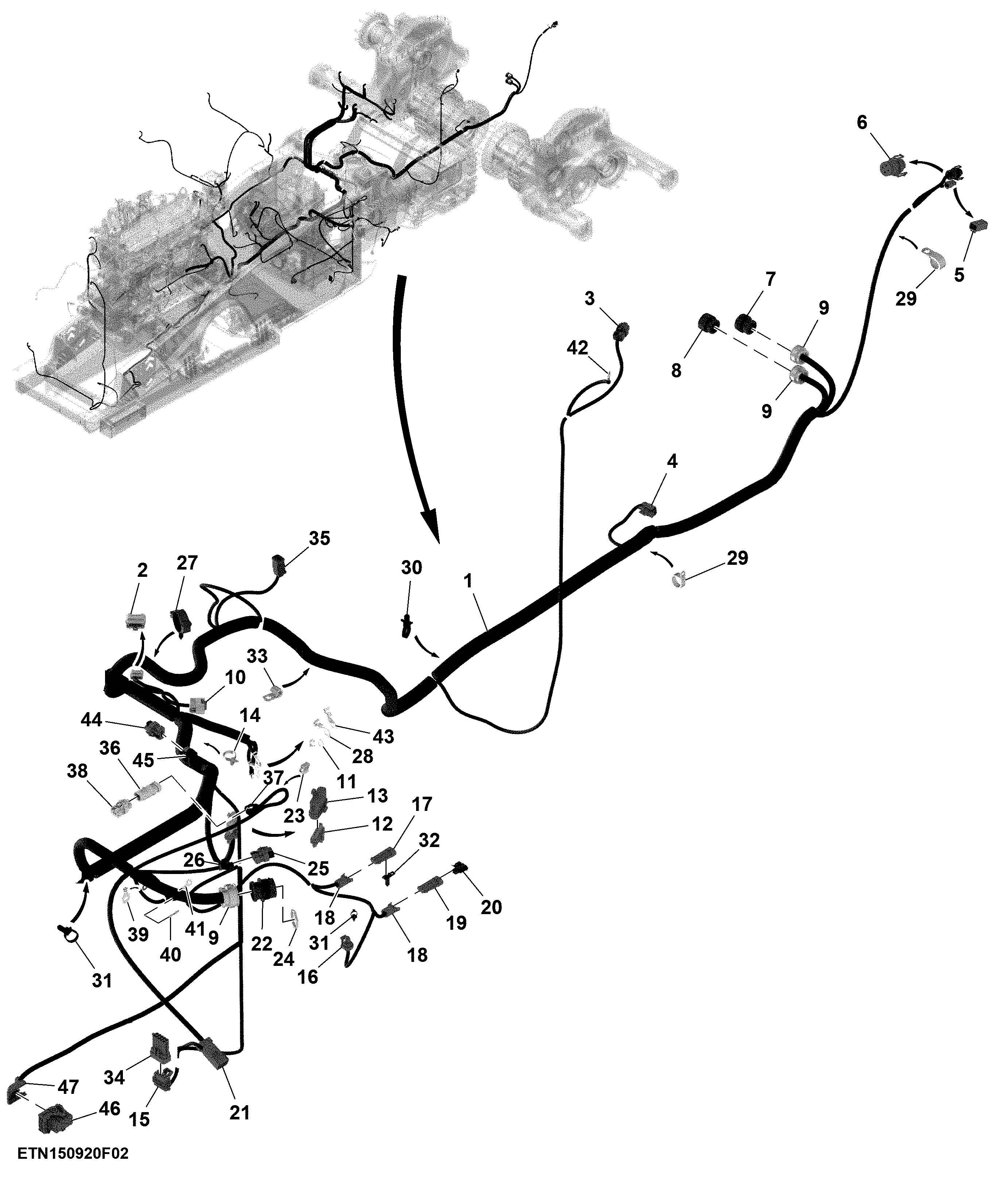

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (4/5) (804101 - )
