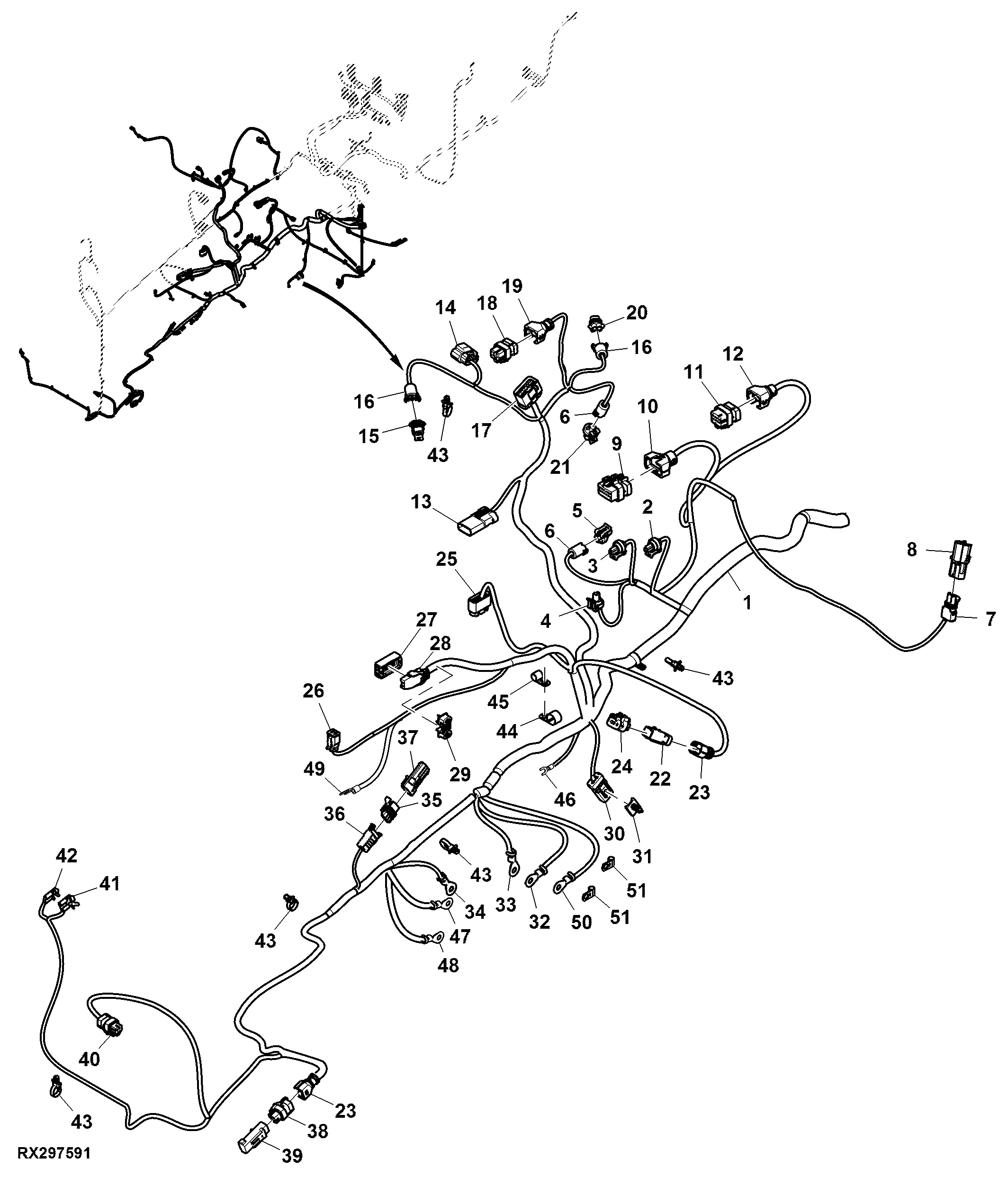

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (4/4) (802000 - 804100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580198	1	Chassis Wiring Harness	-
2	57M8625	1	Elec. Connector Housing	B261
2	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
2	57M8624	1	Elec.Connect Locking Device	-
3	57M8625	1	Elec. Connector Housing	B262
3	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
3	57M8624	1	Elec.Connect Locking Device	-
4	57M8625	1	Elec. Connector Housing	B263
4	57M8624	1	Elec.Connect Locking Device	-
4	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
5	57M8625	1	Elec. Connector Housing	B717
5	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
6	57M11405	2	Elec. Connector Accessory	-
7	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
7	57M9776	1	Elec. Connector Housing	X132A
8	R78053	1	Electrical Connector Assy	-
9	57M9800	1	Elec. Connector Housing	X982A
9	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
10	57M12116	1	Elec. Connector Accessory	-
11	57M9792	1	Elec. Connector Housing	B249
11	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 5, 7, 8
12	57M9842	1	Elec. Connector Accessory	-
13	57M11783	1	Elec. Connector Housing	X5049
13	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
14	57M11979	1	Elec. Connector Housing	B5509
14	57M11980	1	Elec. Connector Accessory	-
14	RWA10919	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	57M7254	1	Elec. Connector Housing	B5010_15L
15	RWA11083	1	Repair Wire Assembly	Cavity A, B
16	57M9556	2	Elec. Connector Accessory	-
17	57M10297	1	Elec. Connector Housing	X180A
17	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 9, 10, 11, 12, 13, 14
18	57M9817	1	Elec. Connector Housing	X055A
18	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
19	57M9839	1	Elec. Connector Accessory	-
20	57M7254	1	Elec. Connector Housing	B5009_15L
20	RWA11083	1	Repair Wire Assembly	Cavity A, B
21	57M8625	1	Elec. Connector Housing	B307_15L
21	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M9776	1	Elec. Connector Housing	A912-15L
23	57M9837	2	Elec. Connector Accessory	-
24	57M11134	1	Elec. Connector Housing	Cap
25	RWA10975	1	Repair Wire Assembly	Cavity 21, 22
25	57M11781	1	Elec. Connector Housing	X5047_15L
25	RWA11137	1	Repair Wire Assembly	Cavity 23, 24
26	57M10517	1	Elec. Connector Housing	Y5016
26	57M8022	1	Elec.Connect Locking Device	-
26	57M10486	1	Elec. Connector Accessory	-
26	RWA10904	1	Repair Wire Assembly	Cavity 1, 2
27	57M11553	1	Elec. Connector Housing	A5505-15L
27	RWA10898	1	Repair Wire Assembly	Cavity 1, 3, 5, 6, 7, 8, 11, 12, 13, 16, 22, 24, 25, 26, 27, 28, 32, 38, 39, 40, 41, 42, 46, 49, 50, 51, 52, 53, 54, 57, 58, 59, 62, 69, 73, 74, 77, 78, 79, 80, 81, 82, 84, 85, 96,
28	57M11997	1	Elec. Connector Accessory	-
29	57M11998	1	Elec. Connector Accessory	-
30	57M9784	1	Elec. Connector Housing	X122
30	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
30	57M9838	1	Elec. Connector Accessory	-
31	57M9939	1	Elec. Connector Accessory	-
32	57M12676	1	Elec. Connector Terminal	XGND1C
33	57M12676	1	Elec. Connector Terminal	XGND1B
34	57M12676	1	Elec. Connector Terminal	XGND11C
35	57M7255	1	Elec. Connector Housing	X289A
35	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
36	57M8219	1	Elec. Connector Terminal	-
37	57M7257	1	Elec. Connector Housing	Cap
38	57M9772	1	Elec. Connector Housing	X040A
38	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
39	57M11333	1	Elec. Connector Accessory	-
40	57M9775	1	Elec. Connector Housing	X034A
40	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
41	57M9238	1	Elec. Connector Terminal	B924-1-15L
41	RWA11113	1	Repair Wire Assembly	-
42	RWA11113	1	Repair Wire Assembly	-
42	57M9238	1	Elec. Connector Terminal	B924-2-15L
43	57M10233	15	Tie Band	-
44	57M9856	1	Clamp	-
45	57M9860	1	Clamp	-
46	-	1	Part 77	M301-X3-15L
47	57M8867	1	Elec. Connector Terminal	XGND11A
48	57M8897	1	Elec. Connector Terminal	XGND11B
49	57M9195	1	Elec. Connector Terminal	XGND13
50	57M8867	1	Elec. Connector Terminal	XGND1A
51	T102934	2	Clamp	-
