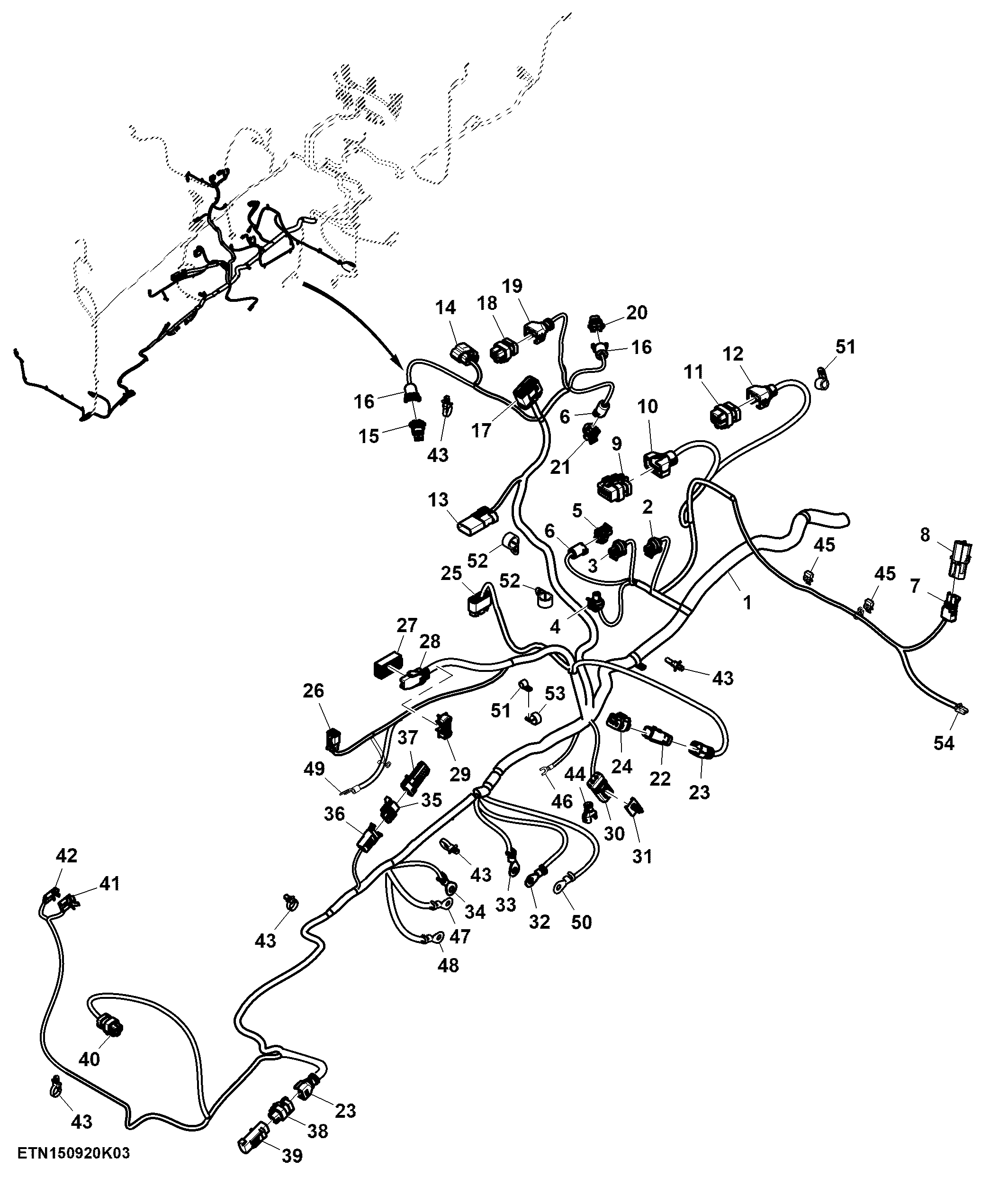

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (3/5) (804101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE587339	1	Chassis Wiring Harness	-
1	RE584674	1	Chassis Wiring Harness	-
1	RE595029	1	Chassis Wiring Harness	-
1	RE591765	1	Chassis Wiring Harness	-
2	57M8625	1	Elec. Connector Housing	Main Hydraulic Pump Pressure Sensor 1 B261
2	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
2	57M8624	1	Elec.Connect Locking Device	-
3	57M8625	1	Elec. Connector Housing	Main Hydraulic Pump Pressure Sensor 2 B262
3	57M8624	1	Elec.Connect Locking Device	-
3	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
4	57M8625	1	Elec. Connector Housing	Backup Hydraulic Pump Pressure Sensor B263
4	57M8624	1	Elec.Connect Locking Device	-
4	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
5	57M8625	1	Elec. Connector Housing	Hydraulic Charge Pump Pressure Sensor B717
5	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
6	57M11405	2	Elec. Connector Accessory	-
7	57M9776	1	Elec. Connector Housing	Left Extremity Light X132A
7	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
8	R78053	1	Electrical Connector Assy	-
9	57M9800	1	Elec. Connector Housing	Tracks Steering Valve Assembly X982A
9	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
10	57M12116	1	Elec. Connector Accessory	ORDER 57M15923
10	57M15923	1	Elec. Connector Accessory	-
11	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 5, 7, 8
11	57M9792	1	Elec. Connector Housing	Brake Pedal Sensor/SW B249
12	57M9842	1	Elec. Connector Accessory	ORDER 57M15921
12	57M15921	1	Elec. Connector Accessory	-
13	57M11783	1	Elec. Connector Housing	TBAP Interconnect X5049
13	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
14	57M11979	1	Elec. Connector Housing	Air Pressure Sensor B5509
14	57M11980	1	Elec. Connector Accessory	-
14	RWA11176	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	57M7254	1	Elec. Connector Housing	Coolant Level B5010_15L
15	RWA11083	1	Repair Wire Assembly	Cavity A, B
16	57M9556	2	Elec. Connector Accessory	-
17	57M10297	1	Elec. Connector Housing	Hood Harness X180A
17	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 9, 10, 11, 12, 13, 14
18	57M9817	1	Elec. Connector Housing	15L Inter Cooler Outlet Temp-Int X055A
18	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
19	57M9839	1	Elec. Connector Accessory	ORDER 57M15918
19	57M15918	1	Elec. Connector Accessory	-
20	57M7254	1	Elec. Connector Housing	Coolant Loss B5009_15L
20	RWA11083	1	Repair Wire Assembly	Cavity A, B
21	57M8625	1	Elec. Connector Housing	Air Filter Restriction Sensor B307_15L
21	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M9776	1	Elec. Connector Housing	CAN Terminator A912-15L
23	57M15493	1	Elec. Connector Accessory	-
23	57M9837	3	Elec. Connector Accessory	ORDER 57M15493
24	57M11134	1	Elec. Connector Housing	Cap A912-15LA
25	57M11781	1	Elec. Connector Housing	OEM Crossover X5047_15L
25	RWA11145	1	Repair Wire Assembly	Cavity 21, 22
25	RWA11137	1	Repair Wire Assembly	Cavity 23, 24
26	57M10517	1	Elec. Connector Housing	Fan Solenoid Y5016
26	57M8022	1	Elec.Connect Locking Device	-
26	57M10486	1	Elec. Connector Accessory	-
26	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
27	57M11553	1	Elec. Connector Housing	ECU A5505-15L
27	RWA11094	1	Repair Wire Assembly	Cavity 1, 3, 5, 6, 7, 8, 11, 12, 13, 16, 22, 24, 25, 26, 27, 28, 32, 38, 39, 40, 41, 42, 46, 49, 50, 51, 52, 53, 54, 57, 58, 59, 62, 69, 73, 74, 77, 78, 79, 80, 81, 82, 84, 85, 96
28	57M11997	1	Elec. Connector Accessory	-
29	57M11998	1	Elec. Connector Accessory	-
30	57M9784	1	Elec. Connector Housing	4 Track Tension Left Hand Side X122
30	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
31	57M9939	1	Elec. Connector Accessory	-
32	57M12676	1	Elec. Connector Terminal	Chassis Ground 9 XGND1C
33	57M12676	1	Elec. Connector Terminal	Chassis Ground 6 XGND1B
34	57M12676	1	Elec. Connector Terminal	Chassis Ground 9 XGND11C
35	57M7255	1	Elec. Connector Housing	Diagnostic Pressure X289A
35	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
36	57M8219	1	Elec. Connector Terminal	-
37	57M7290	1	Elec. Connector Accessory	-
37	57M7257	1	Elec. Connector Housing	Diagnostic Pressure X289AA
38	57M9772	1	Elec. Connector Housing	Rear Light Bar Extension X040A
38	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
39	57M11333	1	Elec. Connector Accessory	-
40	57M9775	1	Elec. Connector Housing	Cooling Package Interconnect X034A
40	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
41	57M9238	1	Elec. Connector Terminal	Horn (+) B924-1-15L
42	57M9238	1	Elec. Connector Terminal	Horn (+) B924-2-15L
43	57M10233	25	Tie Band	-
44	57M15917	1	Elec. Connector Accessory	-
44	57M9838	1	Elec. Connector Accessory	ORDER 57M15917
45	57M9236	2	Clip	-
46	57M8937	1	Elec. Connector Terminal	Starter Solenoid M301-X3-15L
47	57M8867	1	Elec. Connector Terminal	Chassis Ground 7 XGND11A
48	57M8897	1	Elec. Connector Terminal	Chassis Ground 8 XGND11B
49	57M9195	1	Elec. Connector Terminal	Engine Block Ground XGND13
50	57M8867	1	Elec. Connector Terminal	Chassis Ground 4 XGND1A
51	57M12129	2	Clamp	-
52	57M12124	3	Clamp	-
53	57M12125	1	Clamp	-
54	57M14930	1	Elec. Connector Housing	LH Side Marker USE WITH RE595029, E128

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (3/5) (804101 - )
