Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (2/4) ( - 801999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580560	1	Chassis Wiring Harness	-
2	57M8924	1	Elec. Connector Housing	Y683_15L
2	RWA11097	2	Repair Wire Assembly	-
3	57M11380	1	Elec. Connector Accessory	-
4	57M9784	1	Elec. Connector Housing	X123
4	RWA11025	3	Repair Wire Assembly	-
5	57M8924	1	Elec. Connector Housing	Y750
5	57M8633	1	Elec. Connector Accessory	-
5	RWA11097	2	Repair Wire Assembly	-
6	57M9210	1	Elec. Connector Housing	Y751
6	57M8633	1	Elec. Connector Accessory	-
6	RWA11097	2	Repair Wire Assembly	-
7	57M9210	1	Elec. Connector Housing	Y752
7	57M8633	1	Elec. Connector Accessory	-
7	RWA11097	2	Repair Wire Assembly	-
8	57M8633	1	Elec. Connector Accessory	-
8	RWA11097	2	Repair Wire Assembly	-
8	57M8924	1	Elec. Connector Housing	Y753
9	57M9210	1	Elec. Connector Housing	Y754
9	57M8633	1	Elec. Connector Accessory	-
9	RWA11097	2	Repair Wire Assembly	-
10	57M9210	1	Elec. Connector Housing	Y755
10	57M8633	1	Elec. Connector Accessory	-
10	RWA11097	2	Repair Wire Assembly	-
11	57M9780	1	Elec. Connector Housing	B760
11	RWA11029	3	Repair Wire Assembly	-
12	57M9780	1	Elec. Connector Housing	B761
12	RWA11029	3	Repair Wire Assembly	-
13	57M9780	1	Elec. Connector Housing	B762
13	RWA11029	3	Repair Wire Assembly	-
14	RWA11029	3	Repair Wire Assembly	-
14	57M9780	1	Elec. Connector Housing	B763
15	57M8924	1	Elec. Connector Housing	B694
15	RWA11097	2	Repair Wire Assembly	-
15	57M8633	1	Elec. Connector Accessory	-
16	RE12363	1	Electrical Connector Assy	X133A
16	RWA11025	2	Repair Wire Assembly	-
17	R78053	1	Electrical Connector Assy	Cap
18	57M9789	1	Elec. Connector Housing	X563A
18	RWA11025	6	Repair Wire Assembly	-
19	57M11265	1	Elec. Connector Accessory	-
20	57M9786	1	Elec. Connector Housing	Cap
21	57M9940	2	Elec. Connector Accessory	-
22	57M7262	1	Elec. Connector Housing	X116A
22	57M7281	1	Elec.Connect Locking Device	-
22	RWA11083	10	Repair Wire Assembly	-
23	57M7265	1	Elec. Connector Housing	Cap
24	57M9555	1	Clip	-
25	57M9800	1	Elec. Connector Housing	X330A
25	RWA10614	9	Repair Wire Assembly	Cavity 3, 4, 6, 7, 8, 9, 10, 11, 12
25	RWA10612	1	Repair Wire Assembly	Cavity 1
25	57M12116	1	Elec. Connector Accessory	-
26	57M10614	1	Elec. Connector Housing	A570-J1
26	RWA11030	21	Repair Wire Assembly	Cavity A1, A3, A4, B1, B2, B3, B4, C1, D1, E1, E4, F1, F4, G1, G2, H1, H2, J1, J3, K1, K2
26	RWA11032	8	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
27	57M10613	3	Elec. Connector Housing	-
28	57M10367	1	Elec. Connector Housing	A570-J2
28	RWA11032	6	Repair Wire Assembly	Cavity 6, 18, 29, 41, 42, 53
28	RWA11030	19	Repair Wire Assembly	Cavity 7, 9, 11, 12, 13, 14, 20, 21, 22, 23, 24, 25, 26, 34, 35, 37, 38, 39, 40
28	RWA11034	5	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
29	57M10401	1	Elec. Connector Accessory	-
30	57M11524	1	Elec. Connector Housing	X500
30	RWA11118	4	Repair Wire Assembly	Cavity 1, 2, 27, 28
30	RWA10614	20	Repair Wire Assembly	Cavity 3, 6, 7, 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
31	57M11523	1	Elec. Connector Housing	X501
31	RWA11118	2	Repair Wire Assembly	Cavity 24, 25
31	RWA10614	16	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 15, 16, 19, 20, 23, 26
31	RWA11118	3	Repair Wire Assembly	Cavity 1, 27, 28
32	57M11528	2	Elec. Connector Accessory	-
33	57M10605	1	Elec. Connector Housing	A985-J1
33	RWA11030	5	Repair Wire Assembly	Cavity A2, B2, C2, C4, F3
33	RWA11032	4	Repair Wire Assembly	Cavity G1, G4, H3, H4
34	57M10604	4	Elec. Connector Housing	-
35	57M10614	1	Elec. Connector Housing	A985-J2
35	RWA11030	17	Repair Wire Assembly	Cavity A1, A2, A4, B1, C2, C3, F1, F4, G1, G3, H1, H3, H4, J1, K1, K2, K4
35	RWA11032	8	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
36	RWA11032	4	Repair Wire Assembly	Cavity G1, G2, H1, H2
36	RWA11030	14	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
36	57M10611	1	Elec. Connector Housing	A985-J3
37	57M7261	1	Elec. Connector Housing	X505A
37	57M7296	1	Elec. Connector Accessory	-
37	RWA11083	5	Repair Wire Assembly	Cavity A, B, C, D, E
38	57M9800	1	Elec. Connector Housing	X506A
38	RWA10614	2	Repair Wire Assembly	-
39	57M10605	1	Elec. Connector Housing	A986-J1
39	RWA11030	12	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E4, F1, F3, F4
39	RWA11032	4	Repair Wire Assembly	Cavity G1, G4, H3, H4
40	57M10614	1	Elec. Connector Housing	A986-J2
40	RWA11030	29	Repair Wire Assembly	Cavity A1, A2, A3, A4, B1, B4, C2, C3, D3, D4, E1, E2, F1, F2, F4, G1, G2, G3, G4, H1, H3, J1, J2, J3, J4, K1, K2, K3, K4
40	RWA11032	8	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
41	RWA11032	4	Repair Wire Assembly	Cavity G2, G3, H1, H2
41	57M10611	1	Elec. Connector Housing	A986-J3
41	RWA11030	16	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, E4, F1, F3, F4
42	57M7261	1	Elec. Connector Housing	X504A
42	57M7296	1	Elec. Connector Accessory	-
42	RWA11083	5	Repair Wire Assembly	Cavity A, B, C, D, E
43	57M9800	1	Elec. Connector Housing	X503A
43	RWA10614	2	Repair Wire Assembly	-
43	57M12116	1	Elec. Connector Accessory	-
44	57M9792	1	Elec. Connector Housing	X780
44	57M9842	1	Elec. Connector Accessory	-
44	RWA11029	7	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
45	57M9772	1	Elec. Connector Housing	A100-X4
45	RWA11029	2	Repair Wire Assembly	-
46	RE336303	1	Relay Module	INCLUDES 57M10797 AND 57M12929
47	RE574020	1	Wiring Harness	-
48	57M8866	1	Elec. Connector Terminal	A100-X1
49	57M8865	1	Elec. Connector Terminal	X008A
50	T102934	1	Clamp	-
51	57M12137	1	Clamp	SUB FOR 57M10837
52	57M10233	7	Tie Band	-
53	57M9855	2	Clamp	-
54	57M10477	1	Elec. Connector Accessory	-
55	57M7309	1	Elec. Connector Housing	S501-15L
55	RWA11089	2	Repair Wire Assembly	-
56	57M9804	1	Elec. Connector Housing	X342A_15L
56	RWA11025	10	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
57	57M8872	1	Elec. Connector Terminal	A100-X3
58	57M11530	1	Elec. Connector Terminal	A100-X2
59	57M8873	1	Elec. Connector Terminal	G301-D-15L
60	57M12929	1	Fuse	-
61	57M10797	1	Fuse	-

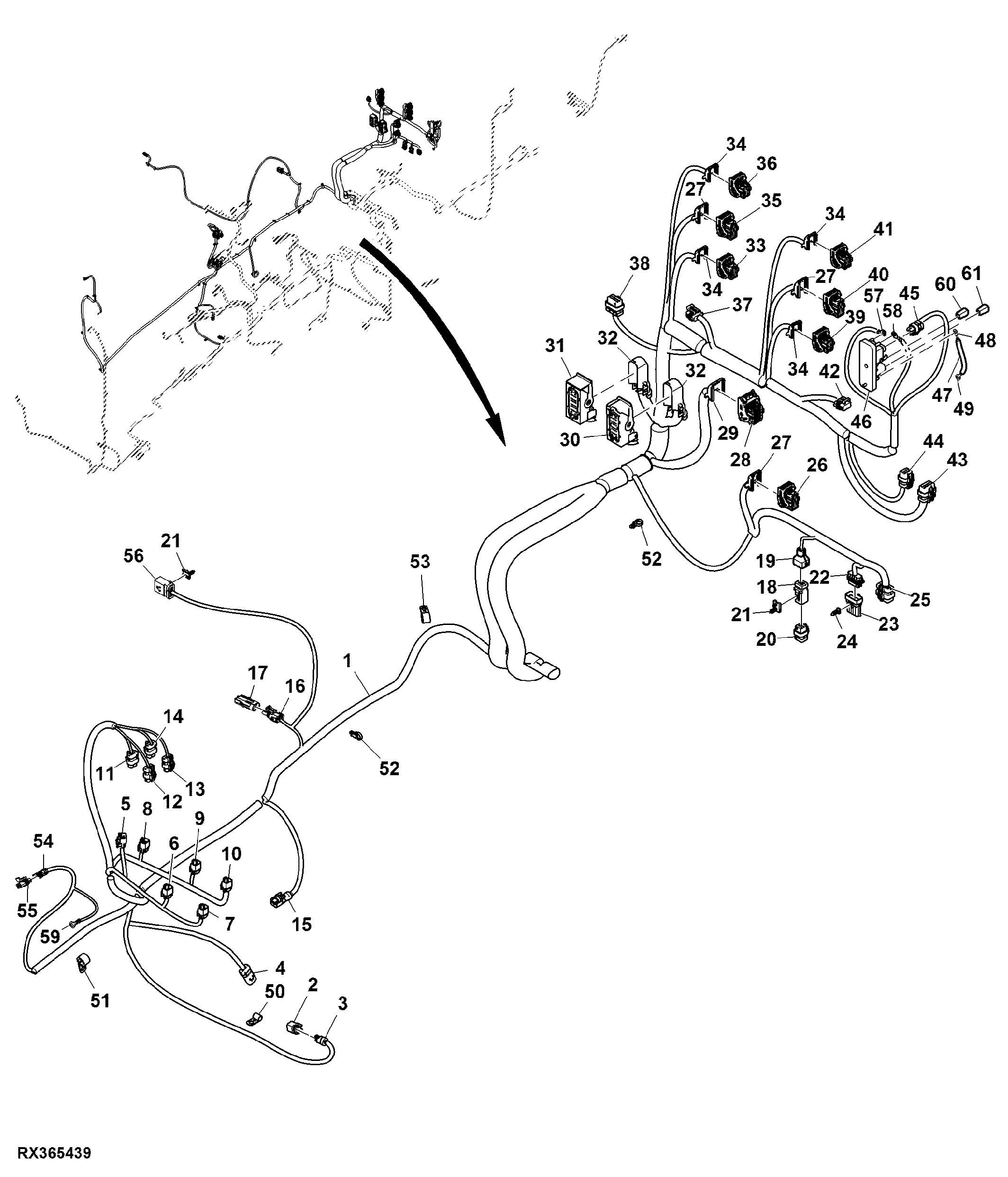

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (2/4) ( - 801999)
