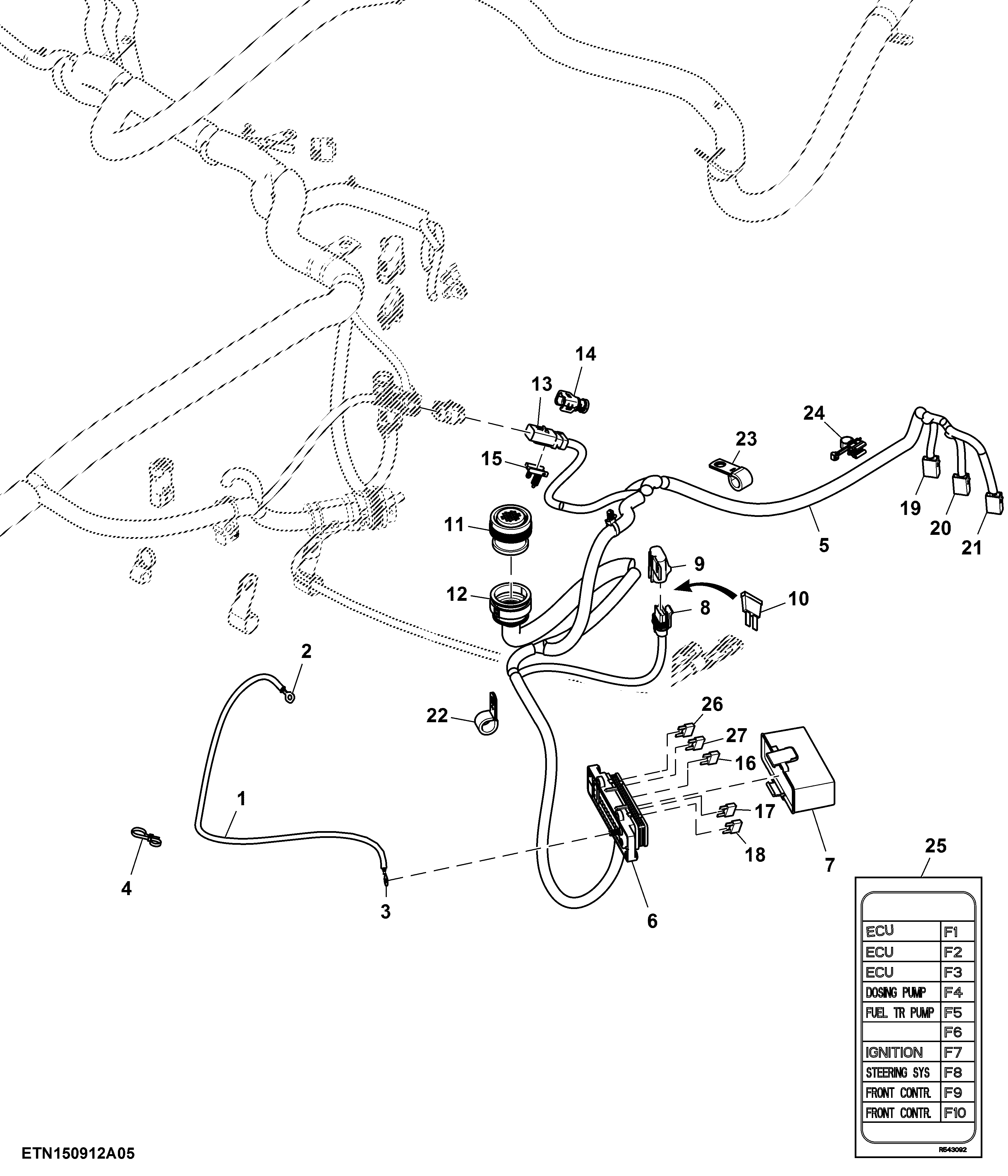

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 13.5 L, T2 / T3 Engine (5/5) (804101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575979	1	Wiring Harness	-
2	57M8866	1	Elec. Connector Terminal	KSW2, Alternator/Battery Relay
3	57M11530	1	Elec. Connector Terminal	FEXX-L1, Load Center Power
4	57M10421	1	Elec. Connector Accessory	-
5	RE583611	1	Chassis Wiring Harness	-
6	RE554429	1	Fuse Holder	FEXX, Front Load Center Panel—Fuses
6	RWA11045	1	Repair Wire Assembly	Cavity B10, B4, B5, B7, B9
7	RE554428	1	Cover	-
8	57M8267	1	Elec. Connector Housing	FE12, Alternator Fuse
8	RWA11093	1	Repair Wire Assembly	Cavity A, B
9	57M8487	1	Electrical Connector Cap	-
10	57M7125	1	Fuse	5 A
11	57M9514	1	Elec. Connector Housing	X340B, Chassis Interconnect
11	RWA11058	1	Repair Wire Assembly	Cavity 4, 5, 6, 7, 15, 21, 22, 23, 27
12	57M9383	1	Elec. Connector Accessory	-
13	57M9784	1	Elec. Connector Housing	X339B, Chassis to Left Steps Harness Interconnect 1
13	RWA11025	1	Repair Wire Assembly	Cavity 2, 3
14	57M9838	1	Elec. Connector Accessory	-
15	57M9940	1	Elec. Connector Accessory	-
16	57M7689	1	Fuse	10 A, F5, Fuel Transfer Pump
17	57M7689	1	Fuse	10 A, F7, Key Switch
18	57M7690	1	Fuse	15 A, F8, Steering Controller
19	57M7144	1	Elec. Connector Housing	M03, Right Washer Pump
19	RWA11076	1	Repair Wire Assembly	Cavity A, B
20	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
20	RWA11076	1	Repair Wire Assembly	Cavity A, B
21	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
21	RWA11076	1	Repair Wire Assembly	Cavity A, B
22	57M12137	2	Clamp	-
23	57M13293	1	Clamp	-
24	AH225363	1	Clip	-
25	R543092	1	Label	External Load Center
26	57M7691	1	Fuse	20 A, F2, ECU
27	57M7691	1	Fuse	20 A, F3, ECU

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 13.5 L, T2 / T3 Engine (5/5) (804101 - )
