Battery Cable, W/O Back Up Pump, 13.5 L Engine ( - 802435)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7084	1	Screw	M8 X 25
2	57M9855	5	Clamp	-
3	57M9856	5	Clamp	-
4	H112567	4	Plate	-
5	R553472	1	Bracket	-
6	RE239622	1	Junction Block	-
7	RE304437	1	Battery Cable	(Cab Controller)
8	RE306703	1	Battery Cable	(Power Cable)
9	RE574057	1	Ground Cable	(Starter)
10	RE575299	1	Battery Cable	(Cab Power)
11	RE575300	1	Battery Cable	+ ve
12	RE597671	1	Battery Cable	Negative SUB FOR RE574062 OR RE581087
13	RE580383	1	Battery Cable	(Alternator Cable) ORDER RE588463; SUB FOR RE577274
13	RE588463	1	Battery Cable	(Alternator Cable)
14	RE594427	1	Battery Cable	(Roof Power Cable) INCLUDES (4) 57M9229; SUB FOR RE575307
15	T252445	1	Clamp	-
16	19M7867	11	Screw	M8 X 25
17	19M7786	1	Screw	M10 X 30
18	19M7785	1	Screw	M10 X 25
19	R136052	1	Stud	-
20	14M7400	1	Lock Nut	M10
21	19M7775	2	Screw	M6 X 16
22	57M9858	3	Clamp	-
23	19M7868	1	Screw	M8 X 30
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm
25	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
26	19M7866	7	Screw	M8 X 20
27	19M7801	2	Screw	M8 X 60
28	R543182	1	Clamp	-
29	RE285712	1	Nut	-
30	14M7299	2	Flange Nut	M12
31	14M7298	6	Flange Nut	M8
32	H115379	8	Clamp	-
33	T102934	2	Clamp	-
34	RE575513	1	Battery Cable	(Power Module Ground)
35	57M9923	1	Elec. Connector Accessory	150 A
36	57M9229	4	Clip	-
37	57M8901	1	Elec. Connector Terminal	-
38	42M7034	2	Stud	-
39	R244801	1	Spacer	9 X 18 X 15 mm (0.354" X 0.709" X 0.591")
40	57M10901	1	Clamp	-
41	T120536	1	Clamp	-
42	R343208	1	Clamp	-

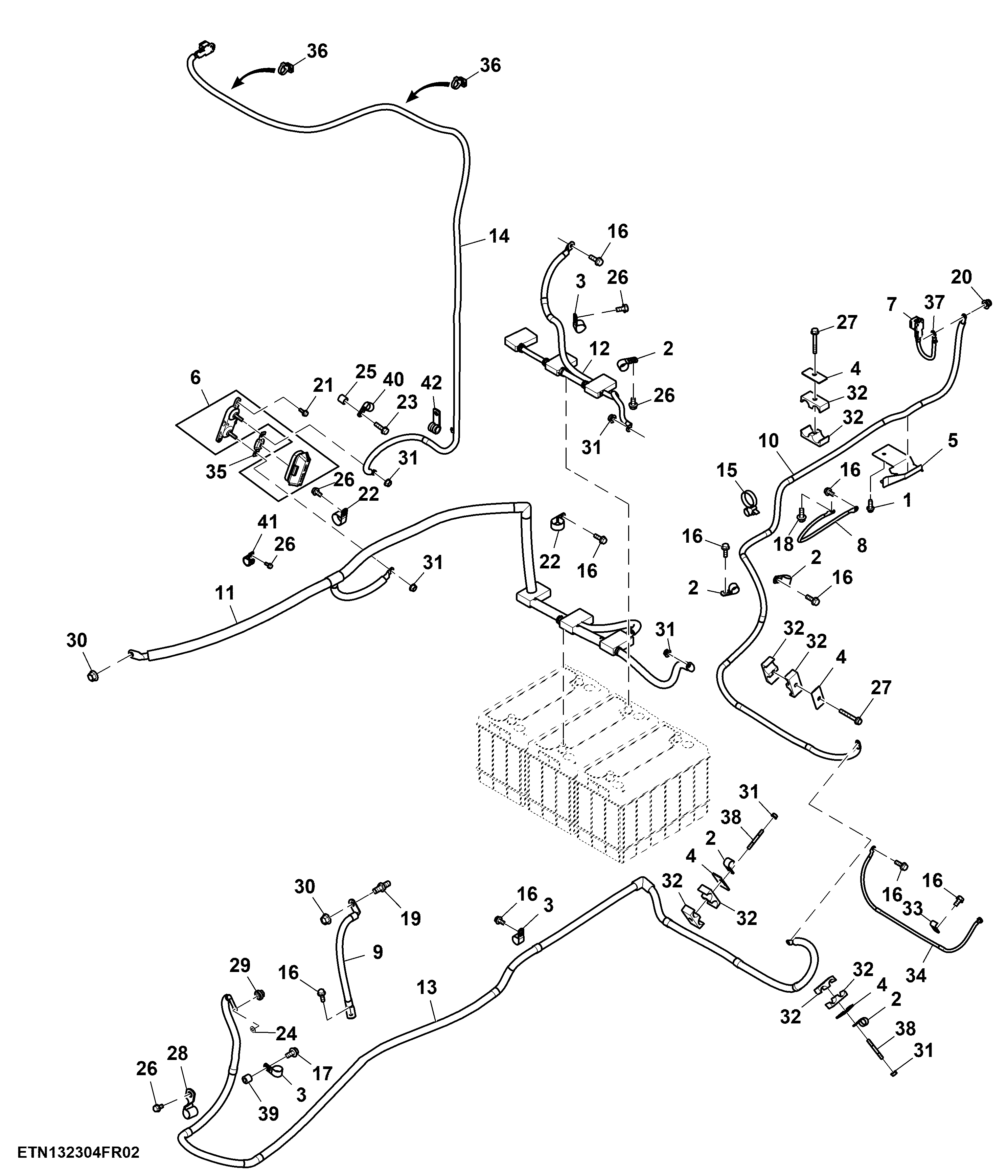

Battery Cable, W/O Back Up Pump, 13.5 L Engine ( - 802435)
