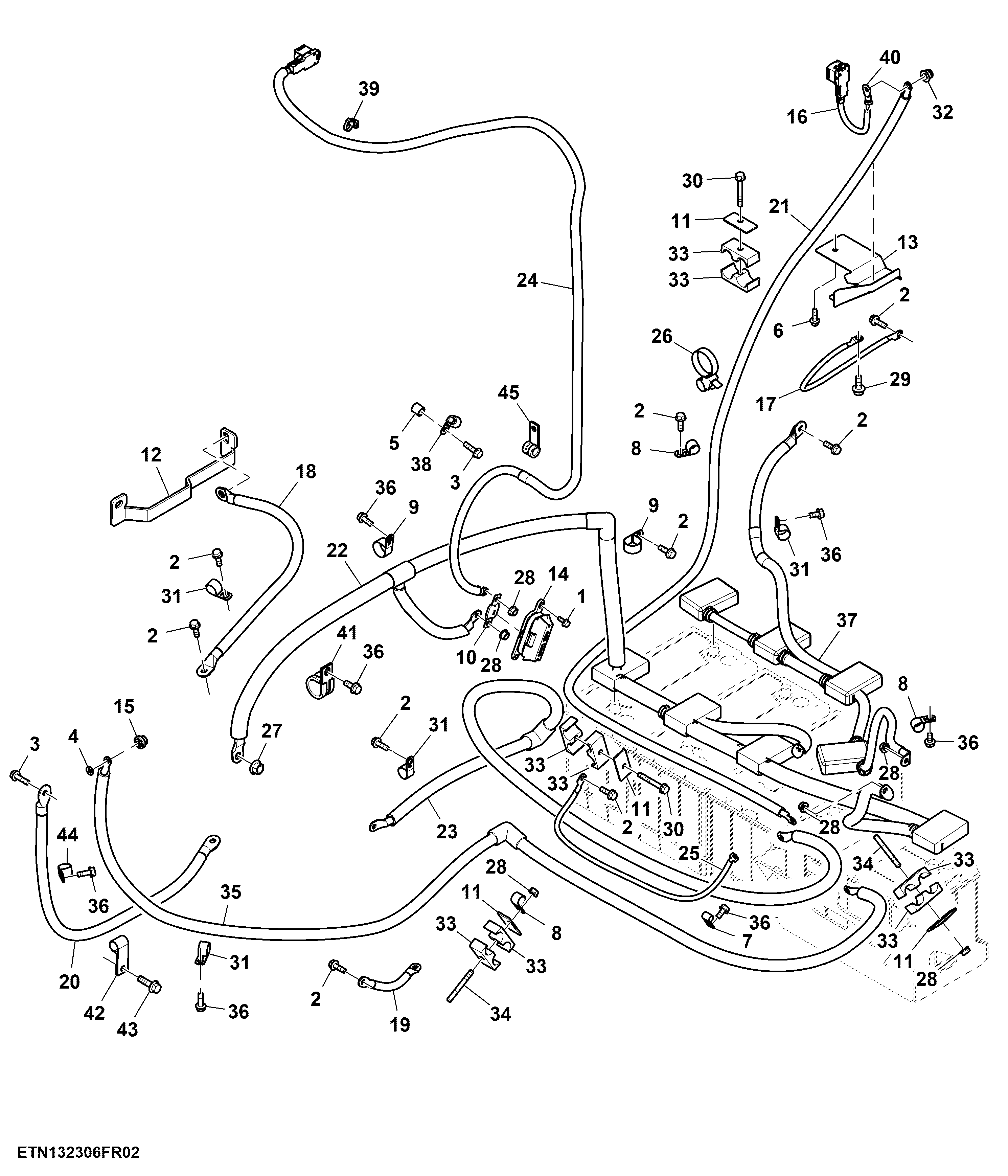

Battery Cable, W/ Back Up Pump, 15.0 L Engine ( - 804001)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7775	2	Screw	M6 X 16
2	19M7867	19	Screw	M8 X 25
3	19M7868	2	Screw	M8 X 30
4	24M7055	1	Washer	8.400 X 16 X 1.600 mm
5	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
6	37M7084	1	Screw	M8 X 25
7	T102934	2	Clamp	-
8	57M9855	5	Clamp	-
9	57M9858	3	Clamp	-
10	57M9923	1	Elec. Connector Accessory	-
11	H112567	4	Plate	-
12	R557986	1	Bracket	-
13	R553472	1	Bracket	-
14	RE239622	1	Junction Block	-
15	RE285712	1	Nut	-
16	RE304437	1	Battery Cable	Cab Controller
17	RE306703	1	Battery Cable	Power Cable
18	RE579641	1	Battery Cable	Starter
19	RE567731	1	Ground Cable	Backup Pump
20	RE579640	1	Battery Cable	Alternator Ground
21	RE575299	1	Battery Cable	Cab Power
22	RE581052	1	Battery Cable	Positive
23	RE580386	1	Battery Cable	Backup Pump
24	RE594427	1	Battery Cable	INCLUDES (4) 57M9229; SUB FOR RE575307Power Cable
25	RE575513	1	Battery Cable	Power Module Ground
26	T252445	1	Clamp	-
27	14M7299	1	Flange Nut	M12
28	14M7298	7	Flange Nut	M8
29	19M7785	1	Screw	M10 X 25
30	19M7801	2	Screw	M8 X 60
31	57M9856	14	Clamp	-
32	14M7400	1	Lock Nut	M10
33	H115379	8	Clamp	-
34	42M7034	2	Stud	-
35	RE580385	1	Battery Cable	Alternator
36	19M7866	11	Screw	M8 X 20
37	RE597672	1	Battery Cable	Negative SUB FOR RE581148
38	57M10901	1	Clamp	-
39	57M9229	4	Clip	-
40	57M8901	1	Elec. Connector Terminal	-
41	T120536	1	Clamp	-
42	T27523	1	Clamp	-
43	19M7835	1	Screw	M10 X 35
44	57M9437	1	Clamp	-
45	R343208	1	Clamp	-

Battery Cable, W/ Back Up Pump, 15.0 L Engine ( - 804001)
