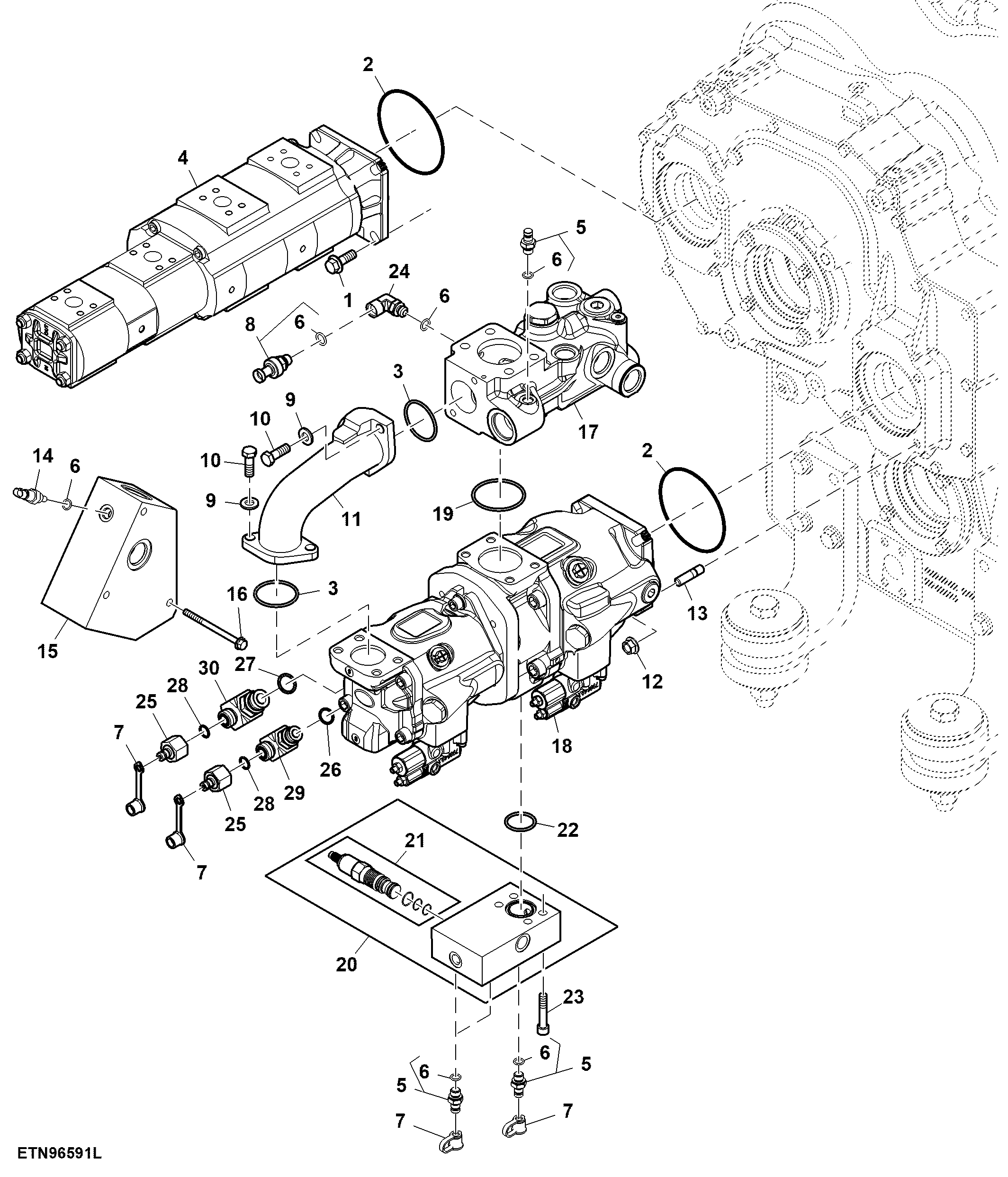

Hydraulic Pump, 90 cc and 85 cc, PST

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7790	4	Screw	M12 X 35
2	T34448	2	O-Ring	-
3	51M7066	2	O-Ring	56.744 X 3.531 mm
4	RE560178	1	Hydraulic Pump	-
5	RE190805	4	Diagnostic Coupling	-
6	51M7041	7	O-Ring	11.300 X 2.200 mm
7	R77175	3	Cover	-
7	R77175	2	Cover	-
8	RE154966	1	Pressure Sensor	Hydraulic Charge Pump Pressure B717
9	24M7240	4	Washer	13 X 25 X 3 mm
10	19M7403	4	Cap Screw	M12 X 35
11	R560621	1	Elbow Fitting	SUB FOR R552549
12	14M7299	4	Flange Nut	M12
13	42M7105	4	Stud	-
14	RE52722	1	Temperature Sensor	Hydraulic Oil Temperature Sensor B694
15	R547248	1	Manifold	-
16	19M7873	3	Screw	M8 X 110
17	RE567064	1	Manifold	Cooler Bypass Manifold
18	RE570073	1	Hydraulic Pump	ORDER RE570007 AND RE570008; INCLUDES RE574279
18	RE579066	1	Hydraulic Pump	(Not Illustrated) SUB FOR RE570007
18	RE579067	1	Hydraulic Pump	(Not Illustrated) SUB FOR RE570008
19	51M7067	1	O-Ring	69.444 X 3.531 mm
20	RE570606	1	Valve	Priority / Load Sense Manifold G16
21	RE572679	1	Hydraulic Pressure Valve	Brake Pressure Reducing Valve V25
22	T78393	1	O-Ring	-
23	19M10163	4	Socket Head Screw	M10 X 55
24	AL117978	1	Adapter Fitting	-
25	RE60702	2	Diagnostic Coupling	-
26	51M7045	1	O-Ring	19.300 X 2.200 mm
27	51M7047	1	O-Ring	23.600 X 2.900 mm
28	T77932	2	O-Ring	-
29	38H5018	1	Elbow Fitting	-
30	38H5166	1	Elbow Fitting	-

Hydraulic Pump, 90 cc and 85 cc, PST
