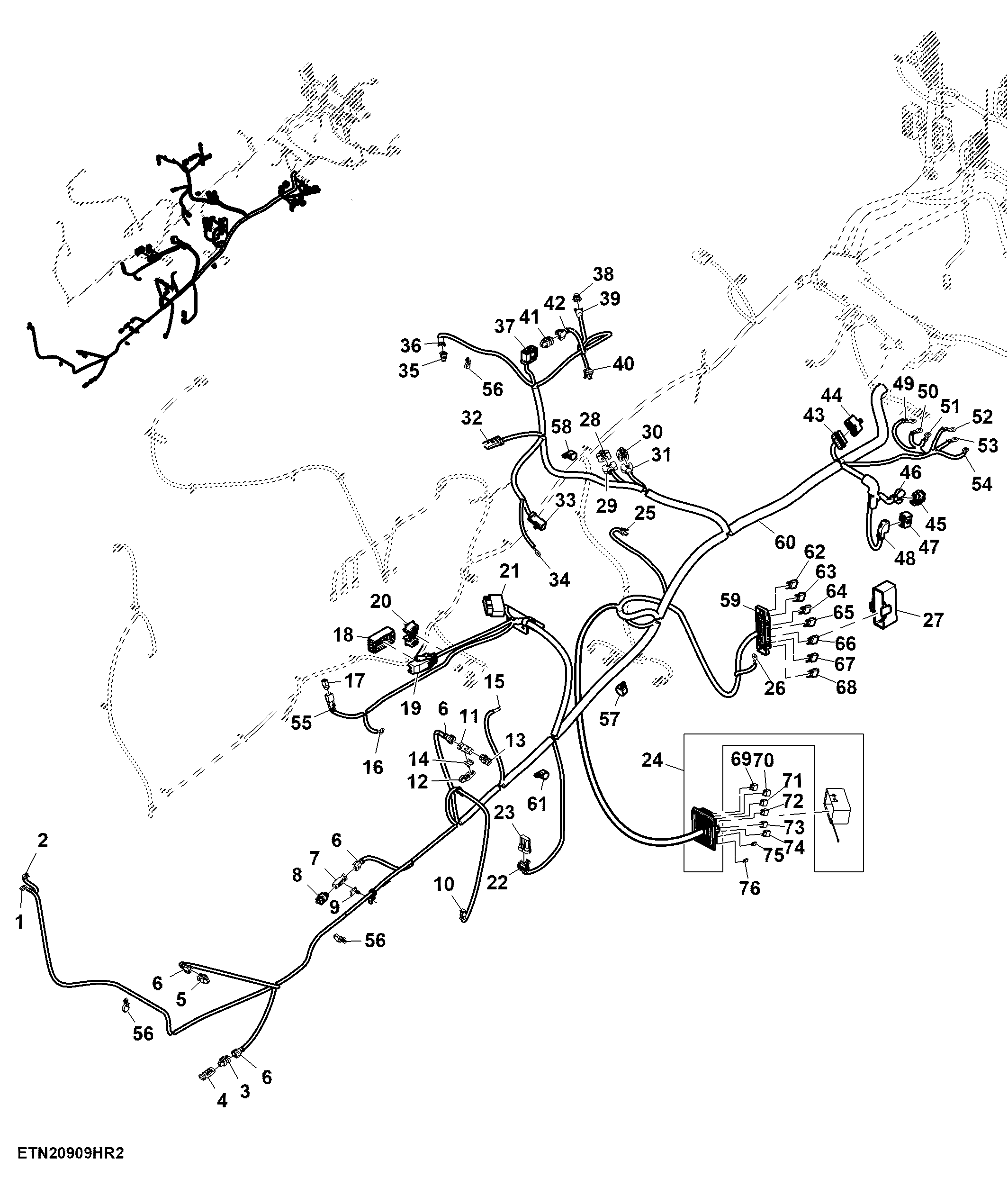

Chassis Wiring Harness, 15.0 L, FT4 Engine (2/5) ( - 917100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9238	1	Elec. Connector Terminal	B924-1-15L
2	57M9238	1	Elec. Connector Terminal	B924-2-15L
3	RWA11026	1	Repair Wire Assembly	Cavity 2, 1
3	57M9726	1	Elec. Connector Housing	X040A
4	57M9730	1	Elec. Connector Housing	-
5	57M9729	1	Elec. Connector Housing	X034A
5	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
6	57M9837	4	Elec. Connector Accessory	-
7	57M9776	1	Elec. Connector Housing	A912
8	57M11134	1	Elec. Connector Housing	-
9	57M9939	1	Elec. Connector Accessory	USE WITH RE573993
10	57M10523	1	Elec. Connector Housing	B5600_15L
10	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
11	57M9779	1	Elec. Connector Housing	E502
11	RWA11025	1	Repair Wire Assembly	Cavity 2, 1
12	57M10528	1	Elec. Connector Accessory	-
13	57M9775	1	Elec. Connector Housing	E502A; USE WITH RE573993
13	57M9729	1	Elec. Connector Housing	E502A; USE WITH RE577030
14	57M9939	1	Elec. Connector Accessory	-
15	57M8937	1	Elec. Connector Terminal	M301-15L
16	57M9535	1	Elec. Connector Terminal	XGND13
17	57M10517	1	Elec. Connector Housing	Y5016
17	RWA11058	1	Repair Wire Assembly	Cavity 2, 1
18	57M11553	1	Elec. Connector Housing	A5505-15L
18	RWA11094	1	Repair Wire Assembly	Cavity 73, 52, 51, 49, 50, 26, 15, 54, 81, 16, 14, 5, 84, 7, 8, 62, 28, 27, 25, 1, 78, 79, 6, 80, 38, 40, 39, 85, 57, 3, 82, 96, 32, 41, 77, 53, 59, 69, 11, 13, 74, 12, 24, 46, 58, 42, 22
19	57M11997	1	Elec. Connector Accessory	-
20	57M11998	1	Elec. Connector Accessory	-
21	57M11781	1	Elec. Connector Housing	X5047
21	RWA11145	1	Repair Wire Assembly	Cavity 21, 22
21	RWA11137	1	Repair Wire Assembly	Cavity 24, 23
22	57M7262	1	Elec. Connector Housing	B921
22	RWA11083	1	Repair Wire Assembly	Cavity C, E, F
23	57M9213	1	Elec. Connector Housing	-
24	RE269840	1	Fuse Box	KEXX
24	RWA11045	1	Repair Wire Assembly	Cavity A1, A2, A4, A5, A7, A8, A10, B10, C1, C2, C4, C5, C7, C8, D1, D2, D4, D5, D7, D8, E10, F1, F2, F4, F5, F7, F8, F10
25	57M8625	1	Elec. Connector Housing	B717
25	57M8624	1	Elec.Connect Locking Device	-
25	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
26	57M11530	1	Elec. Connector Terminal	FEXX
27	RE554428	1	Cover	-
28	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
28	57M9800	1	Elec. Connector Housing	X982A
29	57M9844	1	Elec. Connector Accessory	-
30	57M9792	1	Elec. Connector Housing	B249
30	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 5, 7, 8
31	57M9842	1	Elec. Connector Accessory	-
32	57M11783	1	Elec. Connector Housing	X5049
32	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
33	57M10302	1	Elec. Connector Housing	X570_X1
33	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 6
33	RWA11136	1	Repair Wire Assembly	Cavity 5
34	-	1	Part 52	X751
35	RWA11083	1	Repair Wire Assembly	Cavity A, B
35	57M7254	1	Elec. Connector Housing	B5010_15L
36	57M9556	1	Elec. Connector Accessory	-
37	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 9, 10, 11, 12, 13, 14
37	57M10297	1	Elec. Connector Housing	X180A
38	57M7254	1	Elec. Connector Housing	B5009_15L
38	RWA11083	1	Repair Wire Assembly	Cavity A, B
39	57M9556	1	Elec. Connector Accessory	-
40	57M8625	1	Elec. Connector Housing	B307-15L
40	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
41	57M9817	1	Elec. Connector Housing	X055A
41	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 4
41	RWA11027	1	Repair Wire Assembly	Cavity 3
42	57M9839	1	Elec. Connector Accessory	-
43	57M9406	1	Elec. Connector Accessory	SPK01
43	RWA11089	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
44	57M8611	1	Electrical Connector Assy	-
45	57M9800	1	Elec. Connector Housing	X340A_15L
45	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10
46	57M9844	1	Elec. Connector Accessory	-
47	57M10958	1	Elec. Connector Housing	B5501_15L
47	RWA10718	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
48	57M11439	1	Elec. Connector Accessory	-
49	-	1	Part 76	XGND1C
50	-	1	Part 77	XGND1A
51	-	1	Part 78	XGND1B
52	-	1	Part 79	XGND11C
52	57M8853	1	Relay	K13
53	-	1	Part 81	XGND11A
54	-	1	Part 82	XGND11B
55	57M10625	1	Elec. Connector Accessory	-
56	57M10233	21	Tie Band	-
57	57M9859	1	Clamp	-
58	57M9437	4	Clamp	USE WITH RE577030
58	57M9856	4	Clamp	USE WITH RE580182
59	RE554429	1	Fuse Holder	FEXX-1
59	RWA11045	1	Repair Wire Assembly	Cavity B3, B5, B6, B7, B8, B9, B10
60	RE577030	1	Chassis Wiring Harness	SUB FOR RE573993 OR RE566798
60	RE580182	1	Chassis Wiring Harness	-
61	57M9855	1	Clamp	-
62	57M8163	1	Fuse	30A, B3, F1, ECU
63	57M7690	1	Fuse	15A, B5, F3, ECU / DEF Heaters
64	57M7689	1	Fuse	10A, B6, F4, Dosing Pump / After Treatment
65	57M7689	1	Fuse	10A, B7, F5, Fuel Transfer Pump / DEF
66	57M7689	1	Fuse	10A, B8, F6, A/C
67	57M7689	1	Fuse	10A, B9, F7, Key Switch
68	57M7690	1	Fuse	15A, B10, F8, Steering Controller
69	57M8853	1	Relay	K13
70	57M8853	1	Relay	K14
71	57M8853	1	Relay	K15
72	57M8853	1	Relay	K16
73	57M8853	1	Relay	K17
74	57M8853	1	Relay	K18
75	57M7688	1	Fuse	FE11
76	57M7688	1	Fuse	FE12
