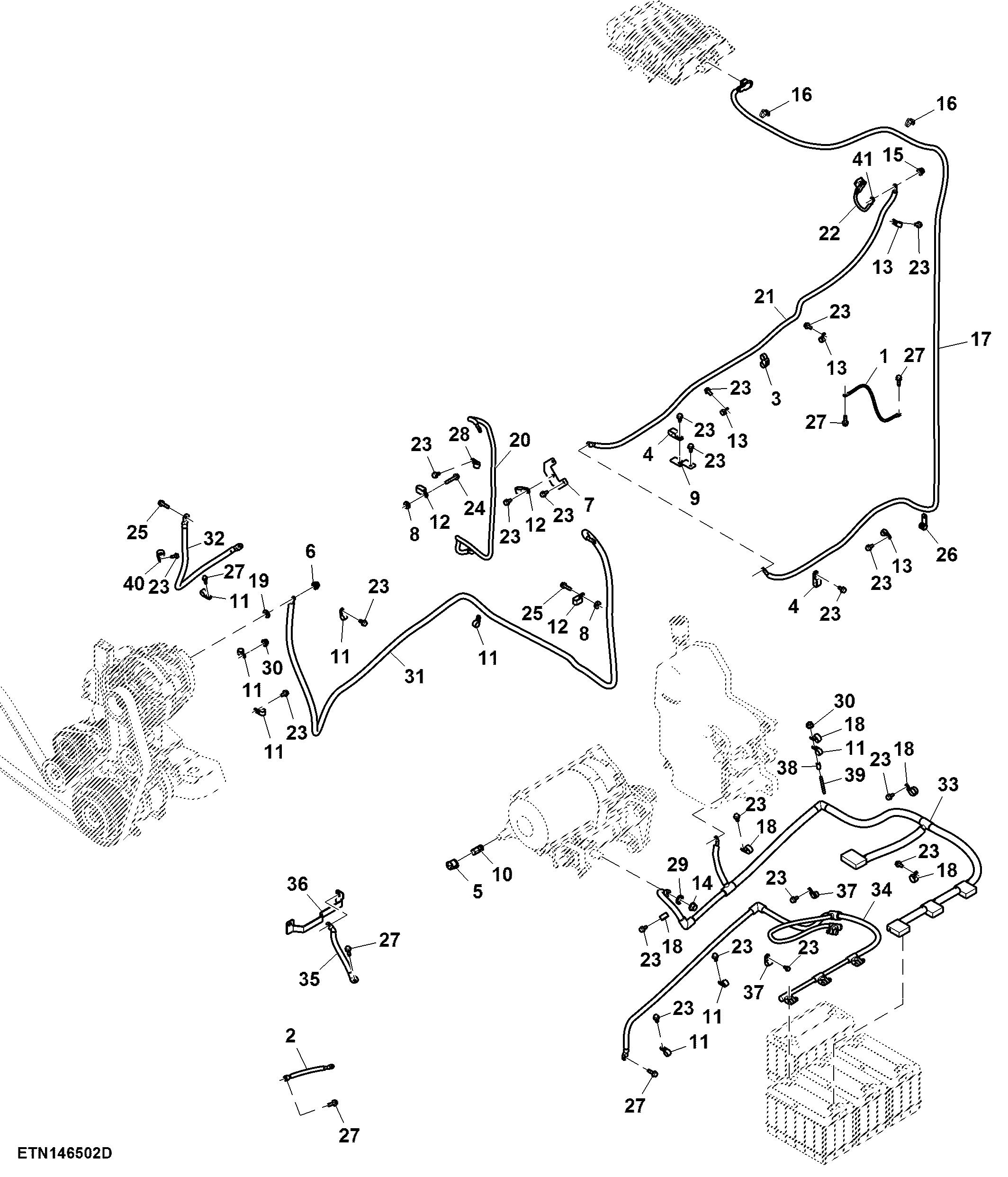

Battery Cable, 15.0 L Engine ( - 919000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE306703	1	Battery Cable	(W014 Cab Ground Cable)
2	RE306704	1	Battery Cable	(W851 Backup Hydraulic Pump Negative Cable)
3	R213663	1	Clamp	-
4	R49921	3	Clamp	-
5	R96066	1	Cover	-
6	RE285712	1	Nut	-
7	RE561368	1	Bracket	-
8	R115823	2	Washer	-
9	RE561388	2	Bracket	-
10	R135871	1	Elec. Connector Terminal	-
11	57M12124	11	Clamp	-
12	AH77869	4	Clip	-
13	57M12123	5	Clamp	-
14	14M7299	1	Flange Nut	M12
15	14M7400	1	Lock Nut	M10
16	57M9229	4	Clip	-
17	RE594189	1	Battery Cable	(W006 RLC Power Cable) INCLUDES (4) 57M9229; SUB FOR RE567743
18	57M12126	5	Clamp	-
19	24M7055	1	Washer	8.400 X 16 X 1.600 mm
20	RE577067	1	Battery Cable	(W850 Backup Hydraulic Pump Positive Cable) SUB FOR RE574074
21	RE594188	1	Battery Cable	(W012 Cab Power Cable) SUB FOR RE574054
22	RE304437	1	Battery Cable	-
23	19M7866	25	Screw	M8 X 20
24	19M7799	1	Screw	M8 X 45
25	19M7868	2	Screw	M8 X 30
26	R343208	1	Clamp	-
27	19M7867	7	Screw	M8 X 25
28	57M12137	1	Clamp	SUB FOR 57M10837
29	12M6680	1	Lock Washer	12.500 mm
30	14M7298	2	Flange Nut	M8
31	RE594194	1	Battery Cable	(W009 Alternator Harness) SUB FOR RE577065 OR RE574070
32	RE579640	1	Battery Cable	(Alternator Ground Cable)
32	RE574071	1	Battery Cable	(Alternator Ground Cable)
33	RE577058	1	Battery Cable	(W010 Positive Battery Cable) SUB FOR RE574061
34	RE574064	1	Battery Cable	(W011 Negative Battery Cable)
35	RE567722	1	Ground Cable	(Starter Ground Cable)
36	R557986	1	Bracket	SUB FOR R551061
37	T76252	1	Clamp	-
38	42M7015	1	Stud	-
39	28H3390	1	Spacer	0.364" X 0.540" X 1"
40	57M12125	1	Clamp	-
41	57M8901	1	Elec. Connector Terminal	-

Battery Cable, 15.0 L Engine ( - 919000)

Нет текстового описания
