Steering System, AutoTrac™ (2/2) (056101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R563161	1	Block Clamp	-
2	RE587581	1	Hose Clamp	-
3	RE583818	1	Oil Line	Cross Over Tube
4	RE583819	1	Oil Line	Steering Line, Cross Over
5	RE583824	1	Hydraulic Hose	Right Steering Head End INCLUDES (2) T77932
6	T77932	9	O-Ring	-
7	RE583825	1	Hydraulic Hose	Right Steering Rod End INCLUDES T77858
8	T77858	4	O-Ring	-
9	RE583829	1	Hydraulic Hose	Left Steering Rod End
10	RE583830	1	Hydraulic Hose	Left Steering Head End INCLUDES T77932
11	R560304	1	Manifold	-
12	38H5121	3	Adapter Fitting	-
13	51M7045	6	O-Ring	19.300 X 2.200 mm
14	38H5152	3	Adapter Fitting	-
15	51M7047	3	O-Ring	23.600 X 2.900 mm
16	R115772	4	Clamp	-
17	H112567	2	Plate	-
18	19M7801	2	Screw	M8 X 60
19	19M7835	2	Screw	M10 X 35
20	RE587219	1	Hydraulic Hose	Steering Supply
21	38H5093	1	Nut	1"
22	38H5094	1	Nut	1-3/16"
23	RE588012	1	Hydraulic Hose	Reservoir To Backup Pump Manifold
24	RE588013	1	Hydraulic Hose	Reservoir To Backup Pump
25	RE587218	1	Hydraulic Hose	Steering Line
26	RE341931	1	Adapter Fitting	INCLUDES 51M7045 AND T77857
27	19M7867	1	Screw	M8 X 25
28	R46667	2	Clamp	-
29	R323614	2	Screw With Washer	-
30	R250832	1	Screw	-
31	R563500	1	Block Clamp	-
32	R563499	1	Hose Clamp	-
33	M145431	2	Screw	-
34	R114103	1	Clamp	-
35	19M7866	1	Screw	M8 X 20
36	38H5004	1	Adapter Fitting	INCLUDES 51M7045
37	T77857	1	O-Ring	-
38	38H5076	1	Adapter Fitting	INCLUDES 51M7045
39	RE588168	1	Oil Line	Check Block To Pump
40	38H5519	1	Adapter Fitting	-
41	38H1162	1	Adapter Fitting	-
42	R26906	1	O-Ring	-

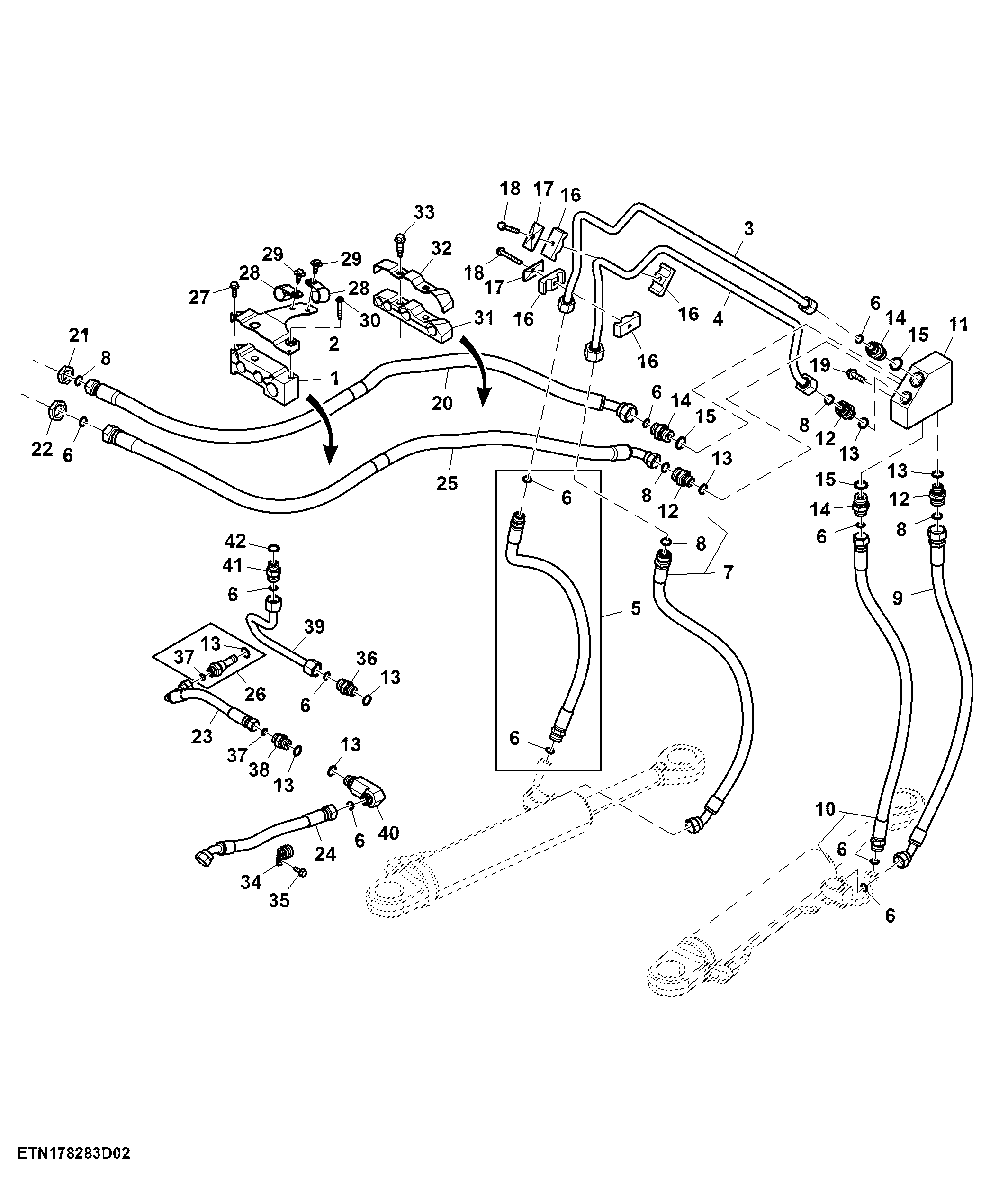

Steering System, AutoTrac™ (2/2) (056101 - )
