SCV Lines, High Flow, PST, Double Reduction Axle, Hitch W/ Quick Coupler (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

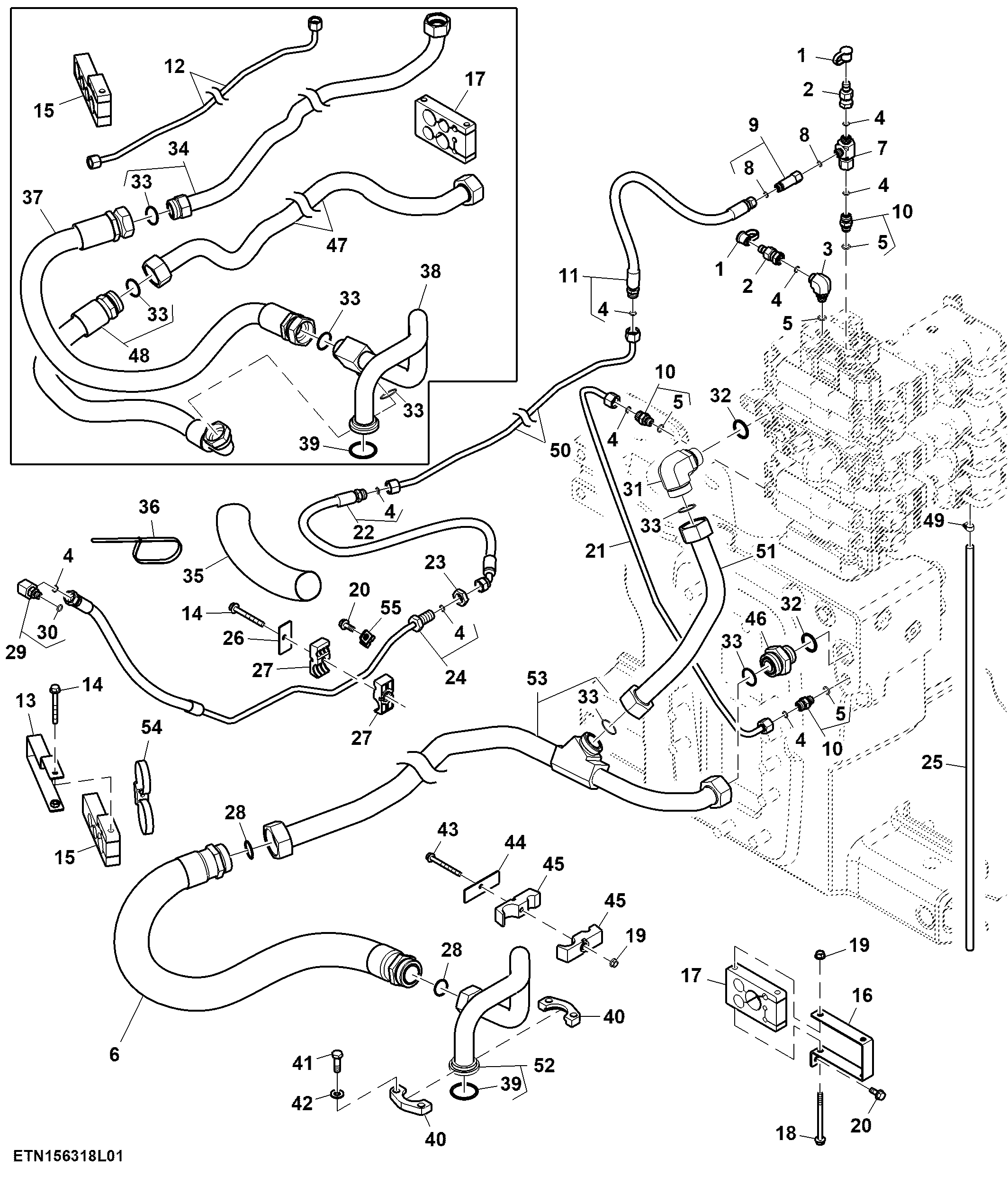

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R77175	2	Cover	-
2	RE60701	2	Diagnostic Coupling	-
3	38H5016	1	Elbow Fitting	INCLUDES 51M7041
4	T77613	9	O-Ring	-
5	51M7041	4	O-Ring	11.300 X 2.200 mm
6	RE574609	1	Hydraulic Hose	SCV Return INCLUDES (2) T78784
7	38H5419	1	Adapter Fitting	-
8	T77814	2	O-Ring	-
9	RE264764	1	Check Valve	LS Orifice Check
10	38H5002	3	Adapter Fitting	-
11	RE342129	1	Hydraulic Hose	SCV Load Sense Connect at Top of Stack
12	RE573774	1	Oil Line	Rear SCV Load Sense ORDER RE574741
13	RE571819	1	Bracket	-
14	19M7803	2	Screw	M8 X 70
15	R546575	1	Block Clamp	USE WITH RE566034
15	R552580	1	Block Clamp	USE WITH RE574739
16	R344628	1	Cover	-
17	R544994	1	Block Clamp	USE WITH RE566034
17	R552359	1	Block Clamp	USE WITH RE574739
18	19M7970	1	Screw	M8 X 100
19	14M7298	2	Flange Nut	M8
20	19M7866	2	Screw	M8 X 20
21	RE581155	1	Oil Line	Pressure Backup Load Sense SUB FOR RE344194
22	RE575169	1	Hydraulic Hose	Load Sense Through Gudgeon
23	38H5091	1	Nut	11/16"
24	RE587418	1	Oil Line	Piston Pump, Load Sense ORDER RE591439; ALSO ORDER T269643 AND 19M7866; SUB FOR RE567139
24	RE591439	1	Oil Line	Piston Pump, Load Sense
25	R184956	1	Hose	SCV Drain
26	H112567	1	Plate	-
27	R129325	2	Clamp	-
28	T78784	2	O-Ring	-
29	38H5022	1	Elbow Fitting	-
30	51M7040	1	O-Ring	9.300 X 2.200 mm
31	38H5149	1	Elbow Fitting	-
32	51M7048	2	O-Ring	29.600 X 2.900 mm
33	T78612	3	O-Ring	-
34	RE566039	1	Line	Rear SCV Return ORDER RE574742
35	R551064	1	Hose Guard	-
36	R76477	2	Tie Band	-
37	RE566029	1	Hydraulic Hose	SCV Return ORDER RE574609
38	RE569271	1	Oil Line	SCV Return, At Filter ORDER RE567130; INCLUDES T34248 AND (2) T78612
39	T34248	1	O-Ring	-
40	X51H-24	2	Flange Fitting	-
41	19M7403	4	Cap Screw	M12 X 35
42	24M7240	4	Washer	13 X 25 X 3 mm
43	19M8039	1	Screw	M8 X 80
44	H114901	1	Plate	-
45	R342142	2	Block Clamp	-
46	38H5172	1	Adapter Fitting	-
47	RE566034	1	Line	SCV Combined Return ORDER RE574739
48	RE566027	1	Hydraulic Hose	SCV Return ORDER RE574609
49	RE187161	1	Clamp	-
50	RE574741	1	Line	Rear SCV Load Sense
51	RE574742	1	Line	Rear SCV Return
52	RE567130	1	Oil Line	SCV Return, At Filter
53	RE574739	1	Oil Line	SCV Combined Return
54	57M12741	1	Elec. Connector Accessory	-
55	T269643	1	Clamp	-
