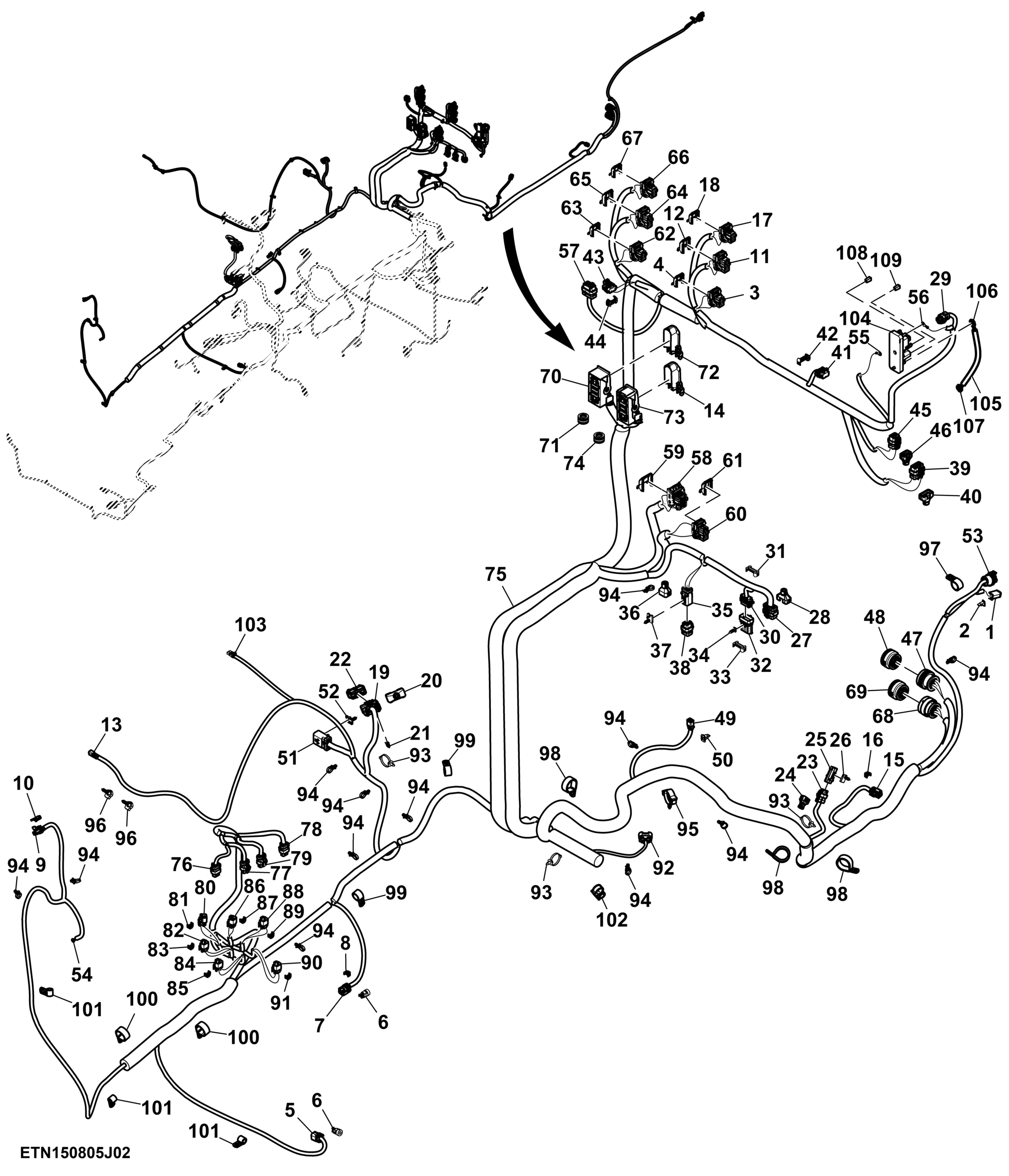

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (2/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M10530	1	Elec. Connector Housing	A914, Implement Can
2	57M8016	1	Elec.Connect Locking Device	-
2	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
3	57M10605	1	Elec. Connector Housing	A986-J1, ActiveCommand Steering Unit J1
4	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
4	57M10604	1	Elec. Connector Housing	-
4	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E4, F1, F3, F4
5	57M8924	1	Elec. Connector Housing	Y683_15L, Front Differential Lock
5	RWA11097	1	Repair Wire Assembly	Cavity B, A
6	57M11380	2	Elec. Connector Accessory	-
7	57M8924	1	Elec. Connector Housing	B694, Hydraulic Oil Temperature Sensor
8	57M8633	1	Elec. Connector Accessory	-
8	RWA11097	1	Repair Wire Assembly	Cavity B, A
9	57M7309	1	Elec. Connector Housing	S501-15L, A/C Compressor Clutch
10	RWA11089	1	Repair Wire Assembly	Cavity B, A
10	57M10477	1	Elec. Connector Accessory	-
11	57M10614	1	Elec. Connector Housing	A986-J2, ActiveCommand Steering Unit J2
12	57M10613	1	Elec. Connector Housing	-
12	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
12	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, H3, C3, A3, A2, F2, J1, B1, G1, G2, J3, J4, D3, D4, A4, F4, B4, G4, H1, K2, E2, C2, K4, E1, G3, K1
13	57M7784	1	Electrical Connector Assy	X133A, Right Extremity Light
13	57M7723	1	Electrical Connector Assy	-
13	RWA11085	1	Repair Wire Assembly	Cavity A, B
14	57M11528	1	Elec. Connector Accessory	-
15	57M8924	1	Elec. Connector Housing	Y666, Rear Differential Lock Solenoid
16	RWA11097	1	Repair Wire Assembly	Cavity A, B
16	57M8633	1	Elec. Connector Accessory	-
17	57M10611	1	Elec. Connector Housing	A986-J3, ActiveCommand Steering Unit J3
18	57M10604	1	Elec. Connector Housing	-
18	RWA11032	1	Repair Wire Assembly	Cavity G2, G3, H1, H2
18	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, E4, F1, F3, F4
19	57M10297	1	Elec. Connector Housing	X790-1, Brake Manifold
20	57M12119	1	Elec. Connector Accessory	-
20	RWA11137	1	Repair Wire Assembly	Cavity 7, 13, 10, 12, 11, 8, 9, 1, 4, 5, 6, 2, 3
21	57M11374	1	Elec. Connector Accessory	-
22	57M10298	1	Elec. Connector Housing	X790-1A, Cap
23	57M9780	1	Elec. Connector Housing	X344A
24	57M9838	1	Elec. Connector Accessory	-
25	57M11334	1	Elec. Connector Accessory	-
25	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
26	57M9939	1	Elec. Connector Accessory	-
27	57M9800	1	Elec. Connector Housing	X330A, Transmission Interconnect
28	57M12116	1	Elec. Connector Accessory	-
28	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 6, 4, 11, 12, 7, 10, 9, 8
29	57M9772	1	Elec. Connector Housing	A100-X4, Power Relay Module
29	RWA11029	1	Repair Wire Assembly	Cavity 2, 1
30	57M7262	1	Elec. Connector Housing	X116A, Hitch Following
31	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
31	57M7281	1	Elec.Connect Locking Device	-
32	57M7265	1	Elec. Connector Housing	X116AA, Hitch Following
33	57M7281	1	Elec.Connect Locking Device	-
34	57M9555	1	Clip	-
35	57M9789	1	Elec. Connector Housing	X563A, Rear PTO Extension
36	57M11265	1	Elec. Connector Accessory	-
36	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
37	57M9940	1	Elec. Connector Accessory	-
38	57M9786	1	Elec. Connector Housing	X563AA, Rear PTO Extension
39	57M9800	1	Elec. Connector Housing	X503A, Cab 7 Interconnect
40	57M12116	1	Elec. Connector Accessory	-
40	RWA11029	1	Repair Wire Assembly	Cavity 4, 1
41	57M7261	1	Elec. Connector Housing	X504A, Chassis / Cab
42	57M7296	1	Elec. Connector Accessory	-
42	RWA11083	1	Repair Wire Assembly	Cavity D, E, A, B, C
43	57M7261	1	Elec. Connector Housing	X505A, Chassis / Cab
44	RWA11083	1	Repair Wire Assembly	Cavity D, E, A, B, C
44	57M7296	1	Elec. Connector Accessory	-
45	57M9792	1	Elec. Connector Housing	X780, GYRO
46	57M9842	1	Elec. Connector Accessory	-
46	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
47	57M9514	1	Elec. Connector Housing	X321A, Front Chassis To Fender Lights
48	57M9383	1	Elec. Connector Accessory	-
48	RWA11058	1	Repair Wire Assembly	Cavity 15, 14, 12, 11, 23, 22, 21, 31, 5, 4, 3, 2, 1, 17, 16, 28, 27, 20, 30, 29, 10, 9, 8, 7, 6
49	57M10517	1	Elec. Connector Housing	B5600-15L, Water In Fuel Sensor
50	57M8022	1	Elec.Connect Locking Device	-
50	RWA11116	1	Repair Wire Assembly	Cavity 2, 1
51	57M9804	1	Elec. Connector Housing	X342A_15L, ATD Interconnect
52	57M9940	1	Elec. Connector Accessory	-
52	RWA11025	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 12, 9, 8, 2, 11, 7
53	57M14213	1	Elec. Connector Housing	X221, Implement Connector
53	RWA10820	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
54	57M8873	1	Elec. Connector Terminal	G301-D-15L, Altenator
55	57M8872	1	Elec. Connector Terminal	A100-X3, Power Relay Module Unswitched Power Output
56	57M11530	1	Elec. Connector Terminal	A100-X2, Power Mod Switch Power Output
57	57M9800	1	Elec. Connector Housing	X506A, Cab Conn 6
57	RWA11029	1	Repair Wire Assembly	Cavity 2, 3
58	57M10367	1	Elec. Connector Housing	A570-J2, Vehicle Control Unit J2
59	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 31, 43, 19, 22, 23, 24, 11, 12, 35, 34, 20, 21, 33, 47, 48, 46, 44, 45, 25, 13, 28, 14, 26, 37, 49, 40, 52, 51, 50, 38, 39
59	57M10401	1	Elec. Connector Accessory	-
59	RWA11032	1	Repair Wire Assembly	Cavity 6, 53, 18, 29, 41, 42
59	RWA11034	1	Repair Wire Assembly	Cavity 1, 4, 5, 2, 3
60	57M10614	1	Elec. Connector Housing	A570-J1, Vehicle Control Unit J1
61	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, A3, J1, D1, B2, B1, G1, G2, J3, A4, F4, C1, B4, H1, K2, E4, H2, B3, E1, K1
61	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M2, M3, M4, M1
61	57M10613	1	Elec. Connector Housing	-
62	57M10605	1	Elec. Connector Housing	A985-J1, ActiveCommand Steering Unit J1
63	57M10604	1	Elec. Connector Housing	-
63	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
63	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C2, C4, E2, F2, F3
64	57M10614	1	Elec. Connector Housing	A985-J2, ActiveCommand Steering Unit J2
65	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
65	RWA11030	1	Repair Wire Assembly	Cavity A1, F1, H3, C3, A2, H4, J1, C4, B1, G1, J3, A4, F4, J2, H1, K2, E2, C2, K4, E1, G3, K1
65	57M10613	1	Elec. Connector Housing	-
66	57M10611	1	Elec. Connector Housing	A985-J3, ActiveCommand Steering Unit J3
67	57M10604	1	Elec. Connector Housing	-
67	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H1, H2
67	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
68	57M8795	1	Elec. Connector Housing	X320A, Front Chassis To Rear Chassis-2
69	RWA11118	1	Repair Wire Assembly	Cavity 4, 3, 1
69	RWA11053	1	Repair Wire Assembly	Cavity 29, 27, 24, 23, 20, 18
69	57M9383	1	Elec. Connector Accessory	-
69	RWA11058	1	Repair Wire Assembly	Cavity 28, 26, 25, 22, 21, 19, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5
70	57M11524	1	Elec. Connector Housing	X500, Cab Connection 2
71	57M11957	1	Elec. Connector Accessory	-
72	57M11528	1	Elec. Connector Accessory	-
72	RWA11029	1	Repair Wire Assembly	Cavity 26, 3, 6, 7, 8, 10, 12, 13, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 14, 25
72	RWA11118	1	Repair Wire Assembly	Cavity 1, 2, 27, 28
73	57M11523	1	Elec. Connector Housing	X501, Cab Connection
74	RWA11029	1	Repair Wire Assembly	Cavity 26, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 15, 16, 19, 20, 23, 24
74	RWA10612	1	Repair Wire Assembly	Cavity 25
74	RWA11118	1	Repair Wire Assembly	Cavity 1, 27, 28
74	57M11957	1	Elec. Connector Accessory	-
75	RE584677	1	Wiring Harness	-
75	RE587329	1	Wiring Harness	-
75	RE591775	1	Wiring Harness	-
75	RE595021	1	Wiring Harness	-
76	57M9780	1	Elec. Connector Housing	B760, Steer Left Valve 1 Position Sensor (ACS™)
76	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
77	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
77	57M9780	1	Elec. Connector Housing	B761, Steer Right Valve 1 Position Sensor (ACS™)
78	57M9780	1	Elec. Connector Housing	B762, Steer Left Valve 2 Position Sensor (ACS™)
78	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
79	57M9780	1	Elec. Connector Housing	B763, Steer Right Valve 2 Position Sensor (ACS™)
79	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
80	57M8924	1	Elec. Connector Housing	Y750, Steer Enable Solenoid 1 (ACS™)
81	57M8633	1	Elec. Connector Accessory	-
81	RWA11097	1	Repair Wire Assembly	Cavity A, B
82	57M9210	1	Elec. Connector Housing	Y751, Steer Left Solenoid 1 (ACS™)
83	57M8633	1	Elec. Connector Accessory	-
83	RWA11097	1	Repair Wire Assembly	Cavity A, B
84	57M9210	1	Elec. Connector Housing	Y752, Steer Right Solenoid 1 (ACS™)
85	57M8633	1	Elec. Connector Accessory	-
85	RWA11097	1	Repair Wire Assembly	Cavity A, B
86	57M8924	1	Elec. Connector Housing	Y753, Steer Enable Solenoid 2 (ACS™)
87	57M8633	1	Elec. Connector Accessory	-
87	RWA11097	1	Repair Wire Assembly	Cavity A, B
88	57M9210	1	Elec. Connector Housing	Y754, Steer Left Solenoid 2 (ACS™)
89	57M8633	1	Elec. Connector Accessory	-
89	RWA11097	1	Repair Wire Assembly	Cavity A, B
90	57M9210	1	Elec. Connector Housing	Y755, Steer Right Solenoid 2 (ACS™)
91	57M8633	1	Elec. Connector Accessory	-
91	RWA11097	1	Repair Wire Assembly	Cavity A, B
92	57M8919	1	Elec. Connector Housing	B264, Front Right Wheel Angle Sensor
92	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
93	RE258807	4	Tie Band	-
94	57M10233	24	Tie Band	-
95	57M9190	1	Clip	-
96	57M8903	2	Clip	-
97	57M12124	1	Clamp	-
98	57M9859	3	Clamp	-
99	57M12123	2	Clamp	-
100	57M12126	4	Clamp	-
101	57M12128	4	Clamp	-
102	R241878	1	Clip	-
103	57M14930	1	Elec. Connector Housing	E129, RH Side Marker USE WITH RE595021
104	RE336303	1	Relay Module	Implement Power Relay INCLUDES 57M10797 AND 57M12929
105	RE574020	1	Wiring Harness	-
106	57M8866	1	Elec. Connector Terminal	KX-X1
107	57M7567	1	Elec. Connector Terminal	X008A
108	57M12929	1	Fuse	30 A
109	57M10797	1	Fuse	60 A

Chassis Wiring Harness, W/ ACS™ and Backup Pump, 15.0 L, FT4 Engine (2/4)

Нет текстового описания
