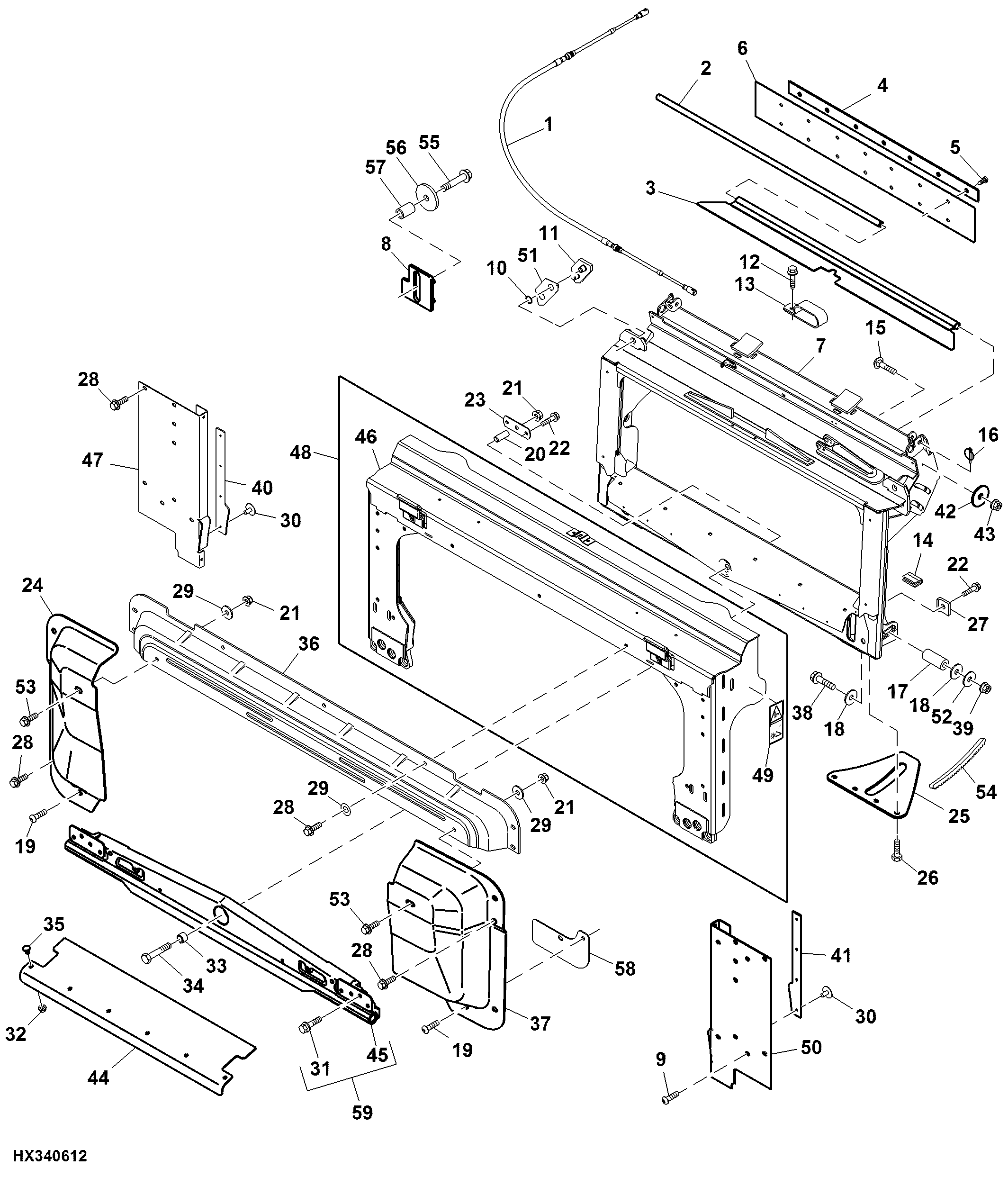

Feeder House Fore / Aft Pivot Frame (Contour Master) (730101 - 735100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH162586	1	Cable	-
2	H203123	1	Pipe	-
3	H203124	1	Seal	-
4	H220560	2	Reinforcement	-
5	37M7092	1	Screw	M8 X 16
6	H220555	1	Isolator	-
7	AXE13437	1	Frame	(SUB FOR AH234080 OR AH209924 OR AH234078 ) (ALSO ORDER (2) H240368, (2) H240377, (2) HXE16671, (2) HXE16672)
8	H149459	1	Wear Plate	L.H.
8	H149460	1	Wear Plate	R.H.
9	21M7585	1	Screw	M10 X 20
10	R495R	2	O-Ring	-
11	H149461	2	Wear Plate	-
12	37M7084	1	Screw	M8 X 25
13	AH97280	1	Clip	-
14	AH218299	2	Isolator	-
15	R226347	6	Cap Screw	-
16	M72598	2	Quick Lock Pin	-
17	H232014	2	Bushing	-
18	T29049	2	Washer	-
19	21M7584	1	Screw	M10 X 35
20	H149517	1	Bushing	-
21	14M7300	3	Flange Nut	M20
22	19M7788	1	Screw	M12 X 25
23	H149518	1	Strap	-
24	H232821	1	Deflector	-
25	H177615	2	Plate	-
26	19M7789	8	Screw	M12 X 30
27	H227029	2	Strip	-
28	19M7785	1	Screw	M10 X 25
29	24M7178	1	Washer	10.500 X 30 X 2.500 mm
30	M64720	1	Rivet	-
31	19M7844	8	Screw	M16 X 45, ( A )
32	14M7296	6	Flange Nut	M10
33	H142870	1	Bushing	-
34	19M7921	1	Cap Screw	M20 X 150
35	H223214	6	Bolt	-
36	H232819	1	Deflector	-
37	H232820	1	Deflector	-
38	19M7853	2	Screw	M20 X 150
39	14M7300	2	Flange Nut	M20
40	H221551	1	Seal	-
41	H221550	1	Seal	-
42	24M7103	4	Washer	17.500 X 56 X 5 mm
43	14M7291	4	Flange Nut	M16
44	H219744	1	Plate	-
45	H235619	1	Beam	-
46	-	1	Part 47	-
47	AH219462	1	Seal	-
48	AXE63296	1	Frame	(INCL A) SUB FOR AH227807
49	H151607	2	Sign	Header Tilt ( A )
50	AH219585	1	Shield	-
51	HXE104720	1	Plate	-
52	H235756	2	Washer	-
53	19M7786	1	Screw	M10 X 30
54	H237013	2	Plate	-
55	19M7815	2	Screw	M12 X 60
56	E81185	2	Washer	-
57	28H3395	2	Bushing	0.546" X 0.840" X 1-1/4"
58	H238359	1	Plate	2 mm
59	AH234106	1	Frame	(SUB FOR AH231550)
