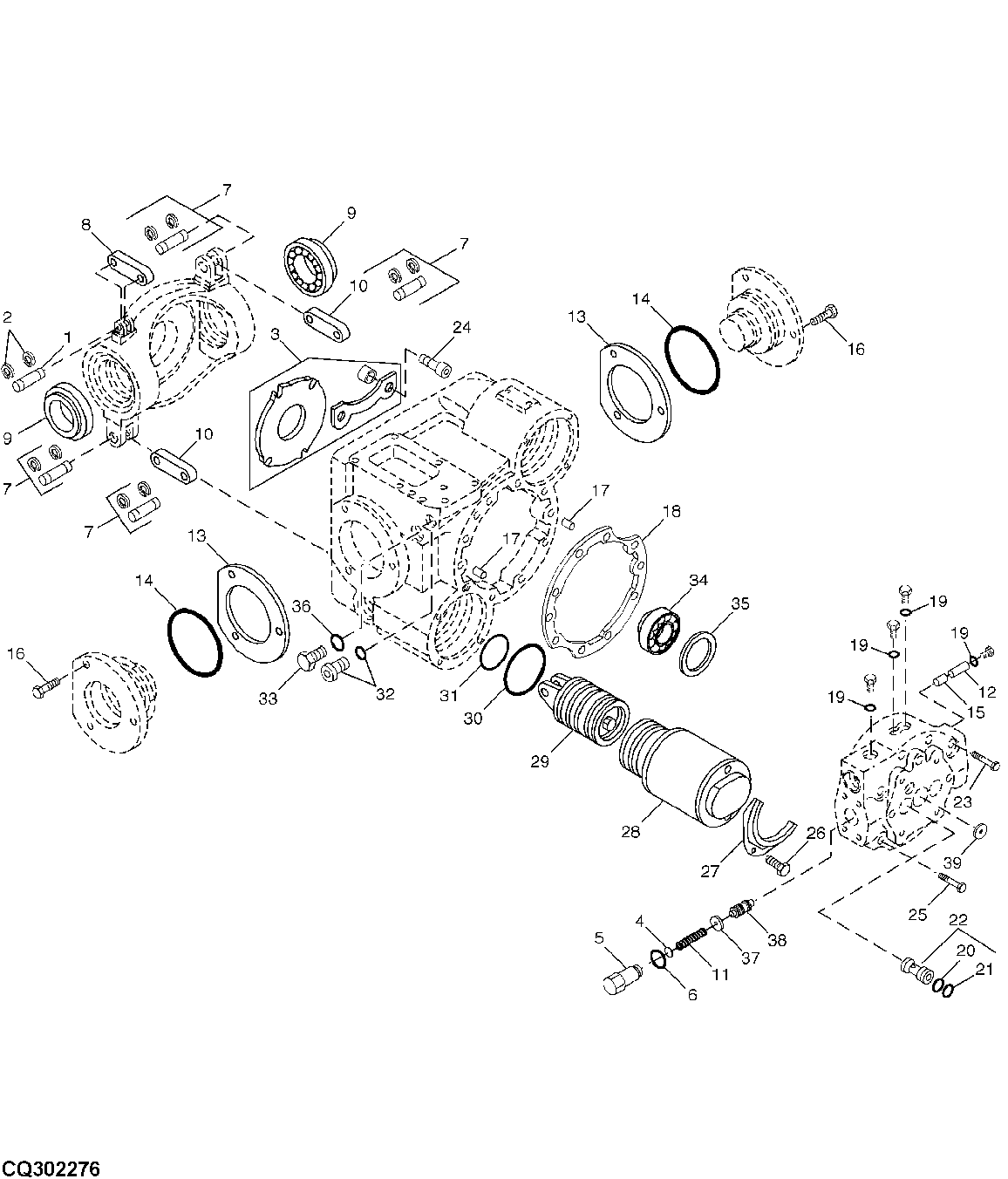

Hydrostatic Drive Pump, Housing, Swash Plate, and Servo Cylinders

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N126603	1	Pin Fastener	-
2	M48000	2	Snap Ring	-
3	AH131392	1	Plate Kit	-
4	AN129278	1	Orifice	-
5	H135215	1	Holder	-
6	R26906	1	O-Ring	-
7	AN274375	2	Pin Fastener	-
8	N126607	1	Link	-
9	JD9076	2	Bearing Cone	-
9	JD9133	2	Bearing Cup	-
10	N126600	2	Link	-
11	H135211	1	Compression Spring	-
12	H135695	1	Needle Roller	(105 CC)
13	AH112680	1	Shim	(105CC) SIX, .002", FOUR, .005", .010", .015" AND .025"
14	M4237T	2	O-Ring	-
15	H135212	1	Needle Roller	(105 CC)
16	19H2666	6	Cap Screw	7/16" X 7/8"
17	H63271	2	Pin	-
18	H214563	1	Gasket	(105 CC)
19	R30903	1	O-Ring	-
20	R152879	2	O-Ring	-
21	W23690	2	Back-Up Ring	-
22	AN122502	2	Check Valve	-
23	19H2347	6	Cap Screw	7/16" X 3"
24	19H3352	4	Screw	5/16" X 1-1/4"
25	19H1899	2	Cap Screw	7/16" X 2"
26	19H3176	6	Screw	0.164" X 0.380"
27	H115052	2	Retainer	-
28	AH112668	2	Sleeve	-
29	AH112675	2	Piston	(105 CC) (INCL KEY AN274375)
30	P48403	2	O-Ring	-
31	M4237T	2	O-Ring	-
32	AN122518	1	Fitting Plug	-
33	R51031	1	Fitting	-
34	AH65358	1	Bearing	-
35	AH112678	1	Shim	SIX, .003", .005", .010", .015", .020" AND .030"
36	R28782	2	O-Ring	-
37	H135213	1	Washer	-
38	H135214	1	Valve Spool	-
39	N126644	1	Orifice	(105 CC)
..	AXE10219	1	Pump	(105CC Hydrostatic Pump) SUB FOR AH221231
..	AXE14670	1	Hydraulic Pump	(Charge Pump) SUB FOR AH163144

Hydrostatic Drive Pump, Housing, Swash Plate, and Servo Cylinders
