Открытый узел

Power Extendable, Mirror Kit, External, RH

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

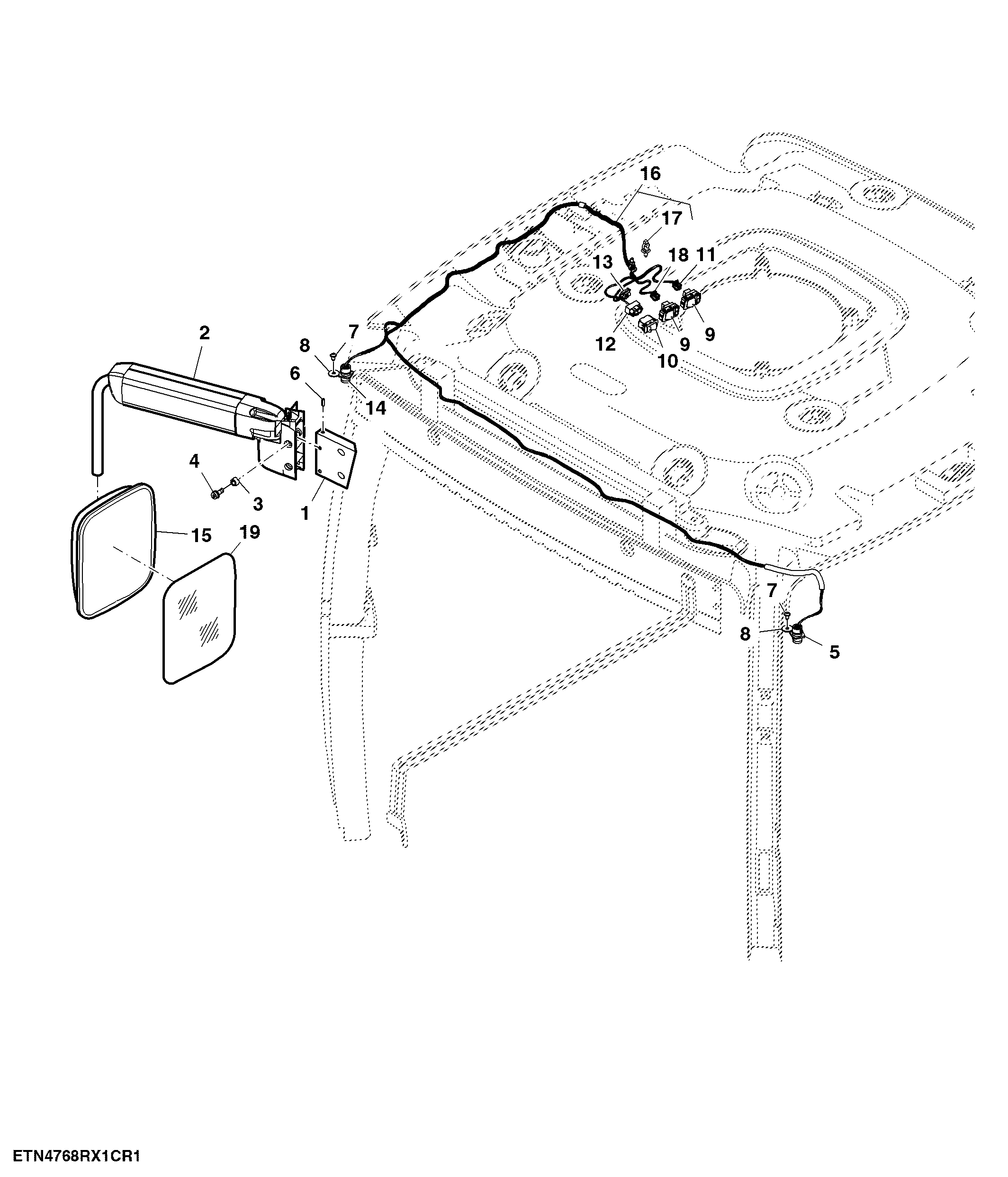

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R292447	1	Spacer	RH
2	AL226372	1	Holder	Telescopic Arm SUB FOR AL216279 OR AL175752 OR AL220523; INCLUDES14M7273
3	34M7266	2	Spring Pin	16 X 10 mm
4	19M9174	2	Screw	M8 X 20
5	57M8205	1	Elec. Connector Housing	Left Power Mirror
6	34M7038	1	Spring Pin	6 X 20 mm
7	37M7382	4	Screw	-
8	24M7100	4	Washer	6.600 X 22 X 2 mm
9	RE236245	2	Switch	-
10	AL181124	1	Toggle/Rocker Switch	-
11	57M9078	1	Elec. Connector Housing	Heat and Extend Option USE WITH (5) 57M9046_Pins
12	57M7254	1	Elec. Connector Housing	ATC USE WITH (2) R104846_Pins, (2) 57M7258_Seals
12	57M7289	1	Elec.Connect Locking Device	-
13	57M7896	1	Electrical Connector Assy	Heat Switch USE WITH (3) 57M7511_Pins
14	57M8205	1	Elec. Connector Housing	Right Power Mirror
15	RE307815	1	Mirror	(Head Power Telescopic, Heat, Tilt)
16	RE307735	1	Roof Wiring Harness	-
17	RE258807	1	Tie Band	-
18	57M9078	1	Elec. Connector Housing	Power Mirror Adjust Switch USE WITH (7) 57M9046_Pins
..	AL160845	1	Rear View Mirror Glass	-
..	14M7273	1	Nut	M8, Not Illustrated USE WITH AL220523

Power Extendable, Mirror Kit, External, RH

Нет текстового описания
