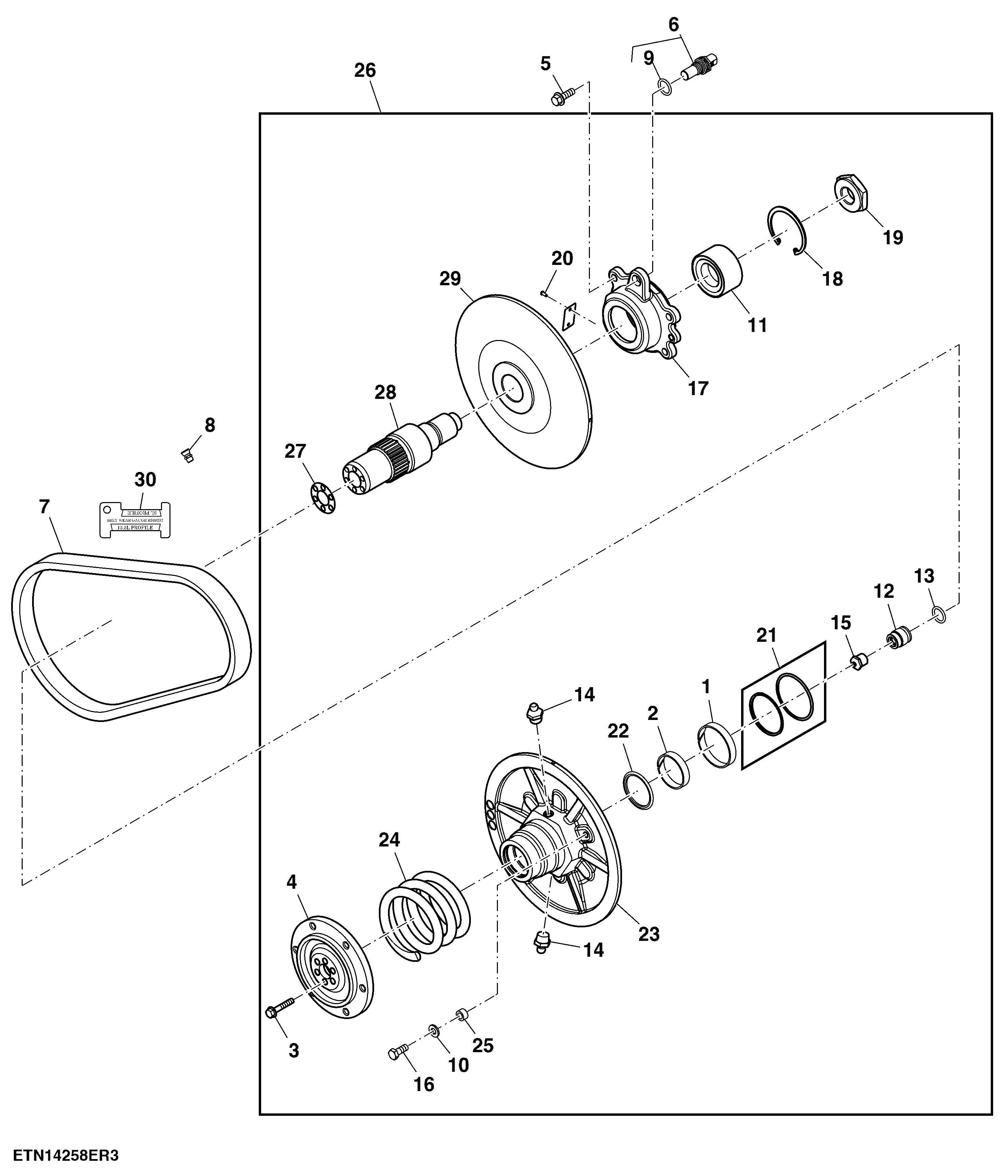

Fan Drive, Driven Assembly, 13.5 L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R565548	1	Bushing	USE WITH RE579462
1	R335492	1	Wear Ring	-
2	R341742	1	Bushing	USE WITH RE579462
2	R335491	1	Wear Ring	-
3	R531358	6	Cap Screw	-
4	R538573	1	Hub	SUB FOR R285072
5	19M7786	4	Screw	M10 X 30
6	RE537634	1	Sensor	-
7	R300399	1	V-Belt	-
8	RE62981	1	Pressure Relief Valve	-
9	51M7044	1	O-Ring	17.300 X 2.200 mm
10	24M7239	2	Washer	10.700 X 21 X 2.500 mm
11	RE567062	1	Tapered Roller Bearing	USE WITH RE558393
12	R325840	1	Fitting Plug	USE WITH RE335495
12	HXE38349	1	Fitting Plug	USE WITH RE558393
13	R495R	1	O-Ring	USE WITH RE335495
14	58M5575	2	Lubrication Fitting	-
15	AE38448	1	Pressure Relief Valve	USE WITH RE558393
16	19M7402	2	Cap Screw	M10 X 25
17	R281482	1	Hub	-
18	U44000	1	Snap Ring	-
19	R315286	1	Nut	-
20	37H44	2	Screw	0.154" X 3/8"
21	RE300797	1	Seal	-
21	RE580927	1	Seal	USE WITH RE579462
22	RE300803	1	Seal	-
22	RE580929	1	Seal	USE WITH RE579462
23	R334885	1	Half Sheave	ORDER R563580; ALSO ORDER R565271, RE580929, RE580927, R565548, R341742
23	R563580	1	Half Sheave	-
24	R289746	1	Compression Spring	-
25	28H3429	2	Washer	0.423" X 0.675" X 3/8"
26	RE335495	1	Fan Drive	ORDER RE558393
26	RE558393	1	Fan Drive	ORDER RE579462
26	RE579462	1	Fan Drive	-
27	R538567	1	Washer	-
28	R335167	1	Shaft	-
29	R299662	1	Half Sheave	ORDER R565271; ALSO ORDER R563580, RE580929, RE580927, R565548, R341742
29	R565271	1	Half Sheave	-
30	R569237	1	Checking Gage	Available for order in quantities of 100 per package.

Fan Drive, Driven Assembly, 13.5 L Engine
