Main Hydraulic Filter Assembly And Hoses, Bundle Supports (720101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH128449	1	Hydraulic Filter	-
2	AH125733	1	Filter Head	-
3	19M7784	2	Screw	M10 X 20
4	H166750	3	Bracket	-
5	H114897	4	Clamp	-
6	19M7801	1	Screw	M8 X 60
7	H112567	3	Plate	-
8	14M7298	1	Flange Nut	M8
9	H163410	2	Hose Clamp	-
10	AH208259	1	Hydraulic Hose	LGTH = 460 mm, Valve To Filter
11	T77858	1	O-Ring	-
12	R29936	1	O-Ring	-
13	AH132031	1	Fitting	(WITH POWERED REAR WHEELS)
14	38H1438	1	Tee Fitting	(WITHOUT POWERED REAR WHEELS)
15	AH161787	1	Hydraulic Hose	LGTH = 3600 mm, Valve To Filter
16	AH162472	1	Hydraulic Hose	LGTH = 3395 mm, Filter to Reservoir
17	AH161786	1	Hydraulic Hose	LGTH = 1950 mm, Suction Hose
18	19M7863	7	Screw	M6 X 25, (SUB FOR (7) 19M7866)
19	AH77724	3	Clip	-
20	H159793	4	Clamp	-
22	R50454	1	Clamp	-
23	38H1033	1	Tee Fitting	(WITH POWERED REAR WHEELS)
24	U12547	1	O-Ring	-
25	AH77869	1	Clip	-
26	AH132031	1	Fitting	-
21A	38H1163	1	Adapter Fitting	(WITHOUT CHAFF SPREADER)
21B	38H1026	1	Tee Fitting	(WITH CHAFF SPREADER)

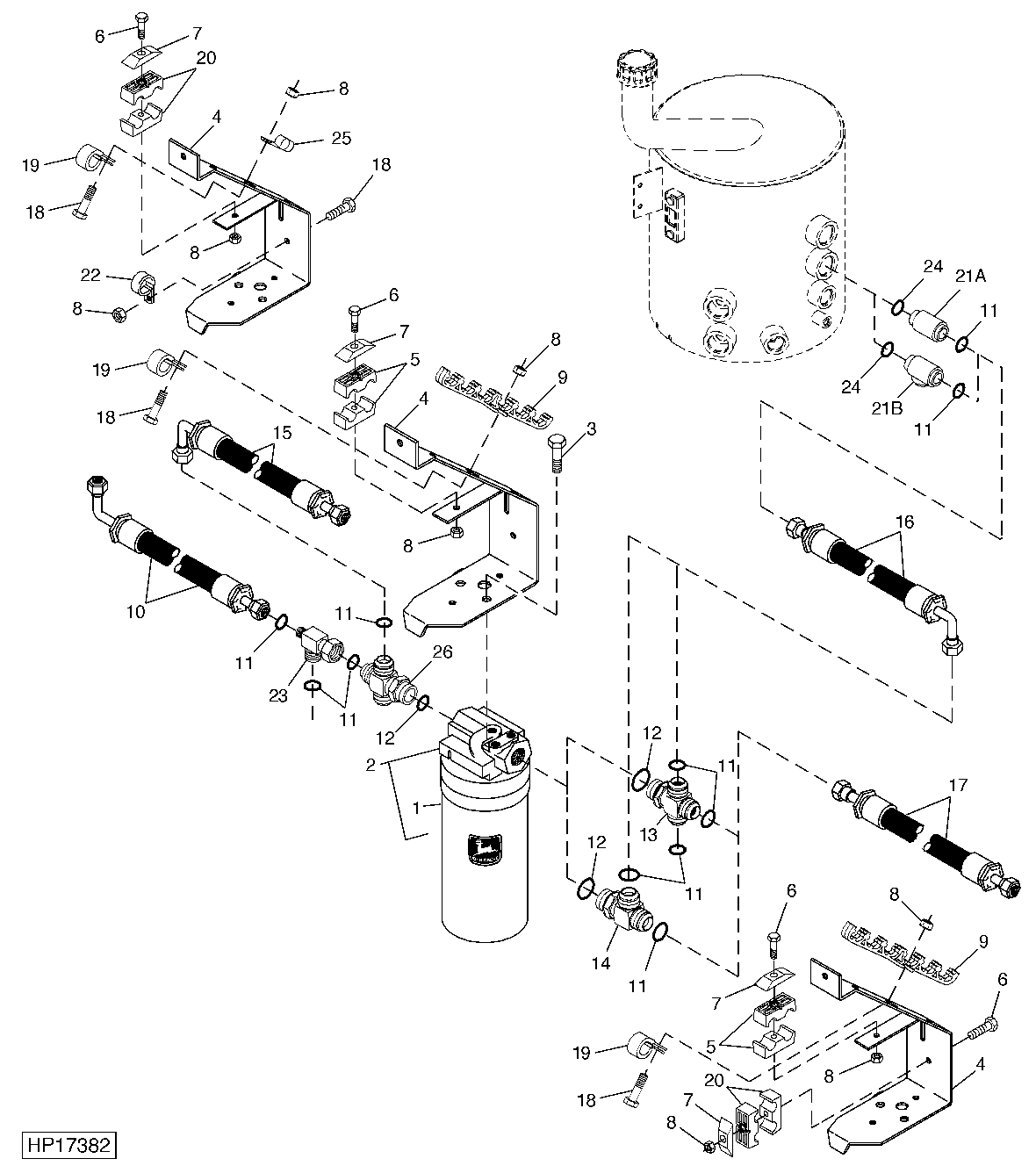

Main Hydraulic Filter Assembly And Hoses, Bundle Supports (720101 - )
