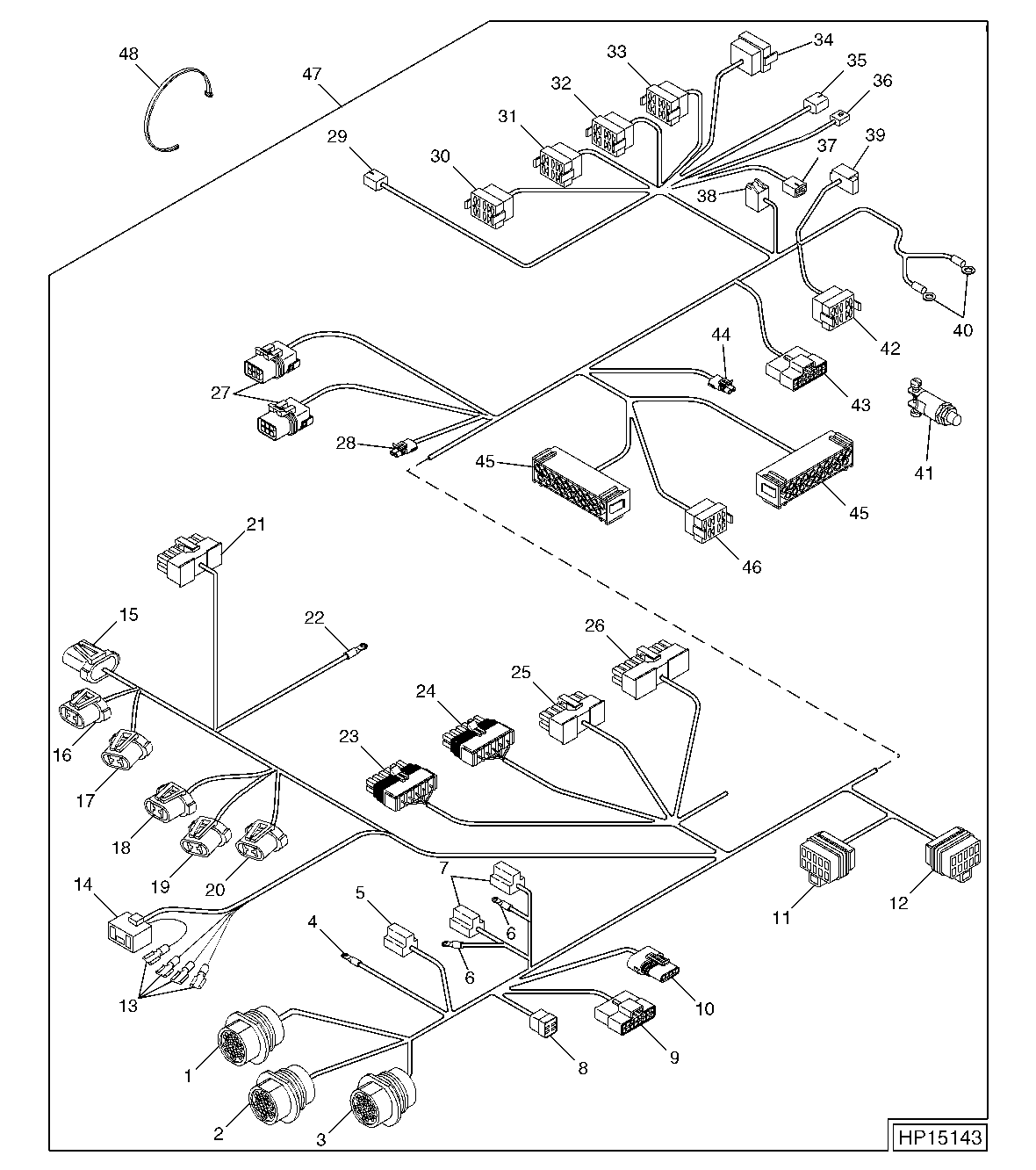

Main Cab Wiring Harness - Continued (715301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
27	57M7260	2	Elec. Connector Housing	CAN BUSS TERMINATOR
28	RE12363	1	Electrical Connector Assy	PCRV
28	R78063	1	Elec. Connector Seal	-
28	R78060	1	Elec. Connector Terminal	-
29	57M8270	1	Elec. Connector Housing	LAMP DIMMER
29	57M7500	1	Elec. Connector Terminal	-
30	57M7973	1	Electrical Connector Assy	HAZARD SWITCH
30	57M7429	1	Elec. Connector Terminal	-
31	57M7973	1	Electrical Connector Assy	ROAD SWITCH
31	57M7429	1	Elec. Connector Terminal	-
32	57M7973	1	Electrical Connector Assy	FIELD SWITCH
32	57M7429	1	Elec. Connector Terminal	-
33	57M7973	1	Electrical Connector Assy	STUBBLE/CHOPPER SWITCH
33	57M7429	1	Elec. Connector Terminal	-
34	57M7973	1	Electrical Connector Assy	MODE ATC ROCKER
34	57M7429	1	Elec. Connector Terminal	-
35	57M7500	1	Elec. Connector Terminal	-
35	57M8270	1	Elec. Connector Housing	FAN SPEED
36	57M7785	1	Elec. Connector Housing	AUTO FAN SWITCH
36	57M7500	1	Elec. Connector Terminal	-
36	57M7501	1	Elec. Connector Terminal	-
37	57M8270	1	Elec. Connector Housing	TEMP SET
37	57M7500	1	Elec. Connector Terminal	-
38	-	1	Part 24	RADIO
39	-	1	Part 25	HEATER SWITCH
40	57M8283	2	Elec. Connector Terminal	DOOR SWITCH
41	RE51234	1	Push Switch	DOOR
42	-	1	Part 28	-
43	-	1	Part 29	-
44	RE12363	1	Electrical Connector Assy	-
45	-	1	Part 31	-
46	-	1	Part 32	-
47	AH213356	1	Wiring Harness	-
48	R44302	4	Tie Band	-

Main Cab Wiring Harness - Continued (715301 - )
