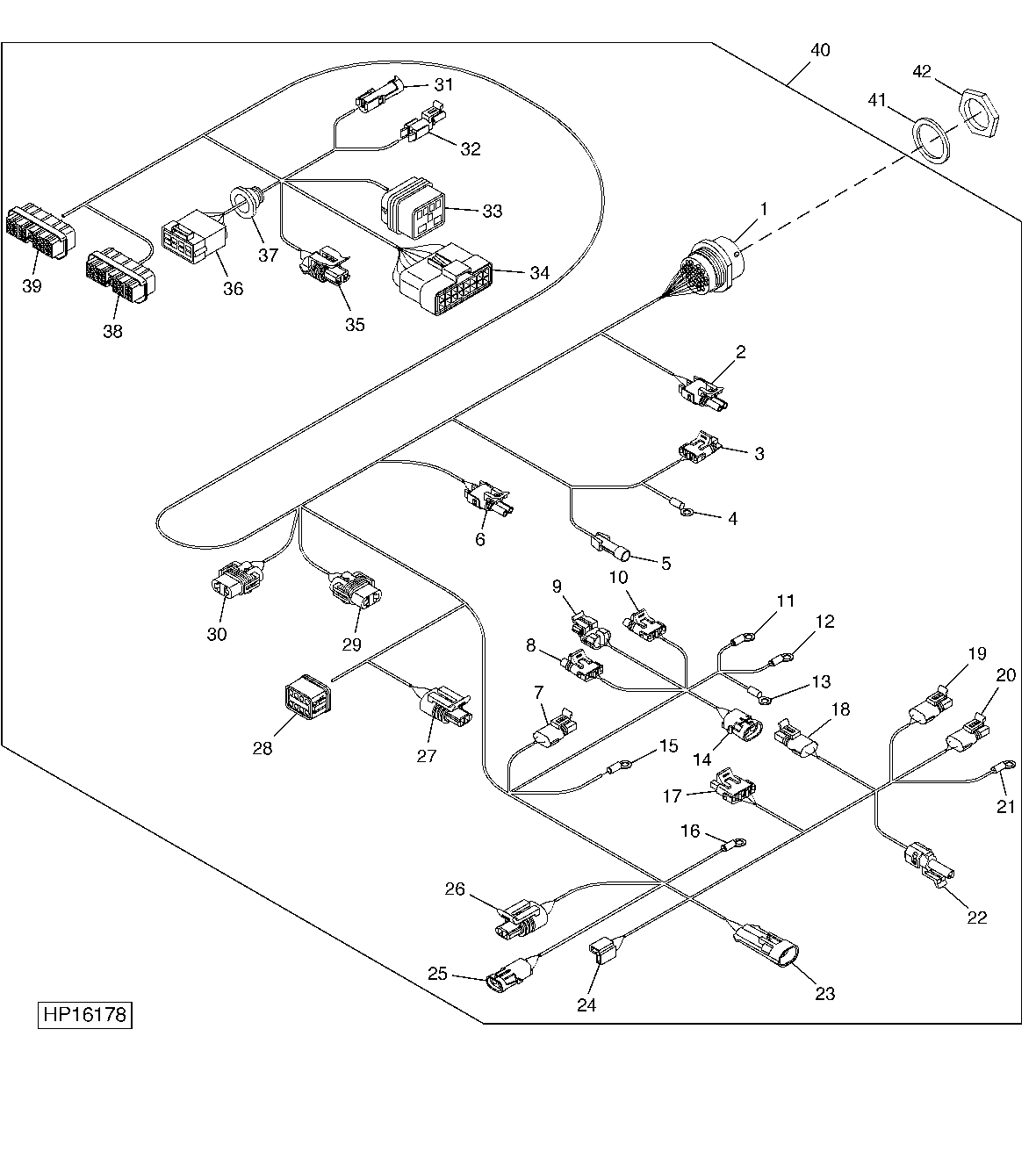

Engine Wiring Harness (8.1 Liter Engine) (715301 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M8036	1	Electrical Connector Assy	RH MAIN
2	RE12363	1	Electrical Connector Assy	A/C PRESSURE SWITCH
3	57M7850	1	Elec. Connector Housing	MANIFOLD AIR TEMP
4	-	1	Part 4	A/C COMPRESSOR GROUND
5	57M7293	1	Elec. Connector Housing	A/C COMPRESSOR CLUTCH
6	RE12363	1	Electrical Connector Assy	AIR FILTER
7	57M7850	1	Elec. Connector Housing	COOLANT TEMP SENSOR
8	RE12363	1	Electrical Connector Assy	SEPARATOR ENGAGE
9	57M7850	1	Elec. Connector Housing	SEPARATOR DRIVE TEMP
10	RE12363	1	Electrical Connector Assy	UNLOADING AUGER ENGAGE
11	57M8867	1	Elec. Connector Terminal	START RELAY POWER
12	57M8875	1	Elec. Connector Terminal	START RELAY COIL
13	57M8867	1	Elec. Connector Terminal	STARTER
14	R78053	1	Electrical Connector Assy	SEPARATOR DRIVE PRESSURE SWITCH
15	57M7833	1	Elec. Connector Seal	SEPARATOR DRIVE FILTER SWITCH
16	57M8867	1	Elec. Connector Terminal	MAIN GROUND
17	57M8407	1	Elec. Connector Housing	FUEL RAIL PRESSURE
18	57M8418	1	Elec. Connector Housing	CAM SENSOR
19	57M8403	1	Elec. Connector Housing	SOLENOID PVC2
19	57M8404	1	Elec. Connector Terminal	-
20	57M8403	1	Elec. Connector Housing	SOLENOID PVC1
20	57M8404	1	Elec. Connector Terminal	-
21	-	1	Part 23	ALTERNATOR OUTPUT
22	RE12362	1	Electrical Connector Assy	ALTERNATOR FIELD
23	57M7256	1	Elec. Connector Housing	WATER-IN-FUEL SENSOR
24	R77479	1	Elec. Connector Terminal	ETHER START AID
25	R78053	1	Electrical Connector Assy	OIL PRESSURE SWITCH
26	57M7850	1	Elec. Connector Housing	CAMSHAFT SPEED SENSOR
27	57M7850	1	Elec. Connector Housing	FUEL TEMP SENSOR
28	-	1	Part 30	FUEL INJECTORS
29	57M7344	1	Elec. Connector Housing	ENGINE SERVICE LIGHT
30	57M7344	1	Elec. Connector Housing	ENGINE SERVICE LIGHT
31	R78052	1	Electrical Connector Assy	3RD GEAR SWITCH
32	RE12362	1	Electrical Connector Assy	3RD GEAR SWITCH
33	57M7696	1	Elec. Connector Housing	LH MAIN
34	57M8279	1	Elec. Connector Housing	LH MAIN
35	57M7850	1	Elec. Connector Housing	HYDRO OIL TEMP
36	57M8272	1	Elec. Connector Housing	RELAY PANEL J6
37	H142169	1	Boot	-
38	57M7276	1	Elec. Connector Housing	ECU J2
39	57M7275	1	Elec. Connector Housing	ECU J1
40	AH218149	1	Wiring Harness	ENGINE
40	AH218972	1	Wiring Harness	ENGINE (EXPORT)
41	57M9061	1	Elec.Connect Locking Device	-
42	57M8035	1	Nut	-

Engine Wiring Harness (8.1 Liter Engine) (715301 - )

Нет текстового описания
