Engine Wiring Harness (8.1 Liter Engine) ( - 710200)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78067	1	Elec. Connector Terminal	-
1	57M7667	1	Electrical Connector Assy	RH MAIN HARNESS
2	R78060	1	Elec. Connector Terminal	-
2	R78063	1	Elec. Connector Seal	-
2	RE12363	1	Electrical Connector Assy	A/C HIGH PRESSURE SWITCH
3	RE12363	1	Electrical Connector Assy	ENGINE AIR FILTER
3	R78060	1	Elec. Connector Terminal	-
3	R78063	1	Elec. Connector Seal	-
4	-	1	Part 9	RAIL PRESSURE
5	-	1	Part 10	SOLENOID PCU 1
6	-	1	Part 11	ENGINE CAM "G" SENSOR
7	-	1	Part 12	SOLENOID PCU 2
8	57M7850	1	Elec. Connector Housing	MANIFOLD AIR TEMP
8	R104701	1	Elec. Connector Terminal	-
9	R32017	1	Elec. Connector Terminal	GROUND
10	57M7293	1	Elec. Connector Housing	A/C COMPRESSOR CLUTCH
11	-	1	Part 17	GROUND
12	H104855	1	Electrical Connector Assy	ALTERNATOR FIELD
13	RE12363	1	Electrical Connector Assy	SEPARATOR ENGAGE
14	57M7850	1	Elec. Connector Housing	SEPARATOR DRIVE TEMP
14	R104701	1	Elec. Connector Terminal	-
15	RE12363	1	Electrical Connector Assy	UNLOADING AUGER ENGAGE
15	R78060	1	Elec. Connector Terminal	-
15	R78063	1	Elec. Connector Seal	-
16	57M7118	2	Elec. Connector Terminal	START RELAY
17	R32023	1	Elec. Connector Terminal	STARTER
18	R78053	1	Electrical Connector Assy	SEPARATOR DRIVE PRESSURE
19	R77489	1	Elec. Connector Terminal	SEPARATOR DRIVE FILTER SWITCH
20	57M7572	1	Elec. Connector Terminal	ENGINE GROUND
21	57M7850	1	Elec. Connector Housing	FUEL TEMPERATURE
21	R104701	1	Elec. Connector Terminal	-
22	57M7256	1	Elec. Connector Housing	WATER IN FUEL
22	57M7258	1	Elec. Connector Seal	-
23	R77479	1	Elec. Connector Terminal	START AID
24	57M7276	1	Elec. Connector Housing	ECU J2
24	57M7830	1	Elec. Connector Terminal	-
25	R78053	1	Electrical Connector Assy	ENGINE OIL PRESSURE SWITCH
26	57M7850	1	Elec. Connector Housing	CRANKSHAFT SPEED SENSOR
26	R104701	1	Elec. Connector Terminal	-
27	-	1	Part 40	FUEL INJECTOR
28	57M7850	1	Elec. Connector Housing	ENGINE COOLANT SWITCH/SENSOR
28	R104701	1	Elec. Connector Terminal	-
29	R78053	1	Electrical Connector Assy	ENGINE SERVICE LIGHT
30	R78053	1	Electrical Connector Assy	ENGINE SERVICE LIGHT
31	57M7696	1	Elec. Connector Housing	LH MAIN HARNESS
31	57M7698	1	Elec. Connector Terminal	-
31	57M7258	1	Elec. Connector Seal	-
31	R104846	1	Elec. Connector Terminal	-
32	-	1	Part 49	LH MAIN HARNESS
33	57M7850	1	Elec. Connector Housing	HYDRO OIL TEMP
33	R104701	1	Elec. Connector Terminal	-
34	H142169	1	Boot	-
35	-	1	Part 53	RELAY PANEL
36	57M7275	1	Elec. Connector Housing	ECU J1
36	R104701	1	Elec. Connector Terminal	-
37	AH211745	1	Wiring Harness	ENGINE, (SUB FOR AH210968)
38	R194708	2	Clamp	-
39	19H1734	2	Cap Screw	5/8" X 2"

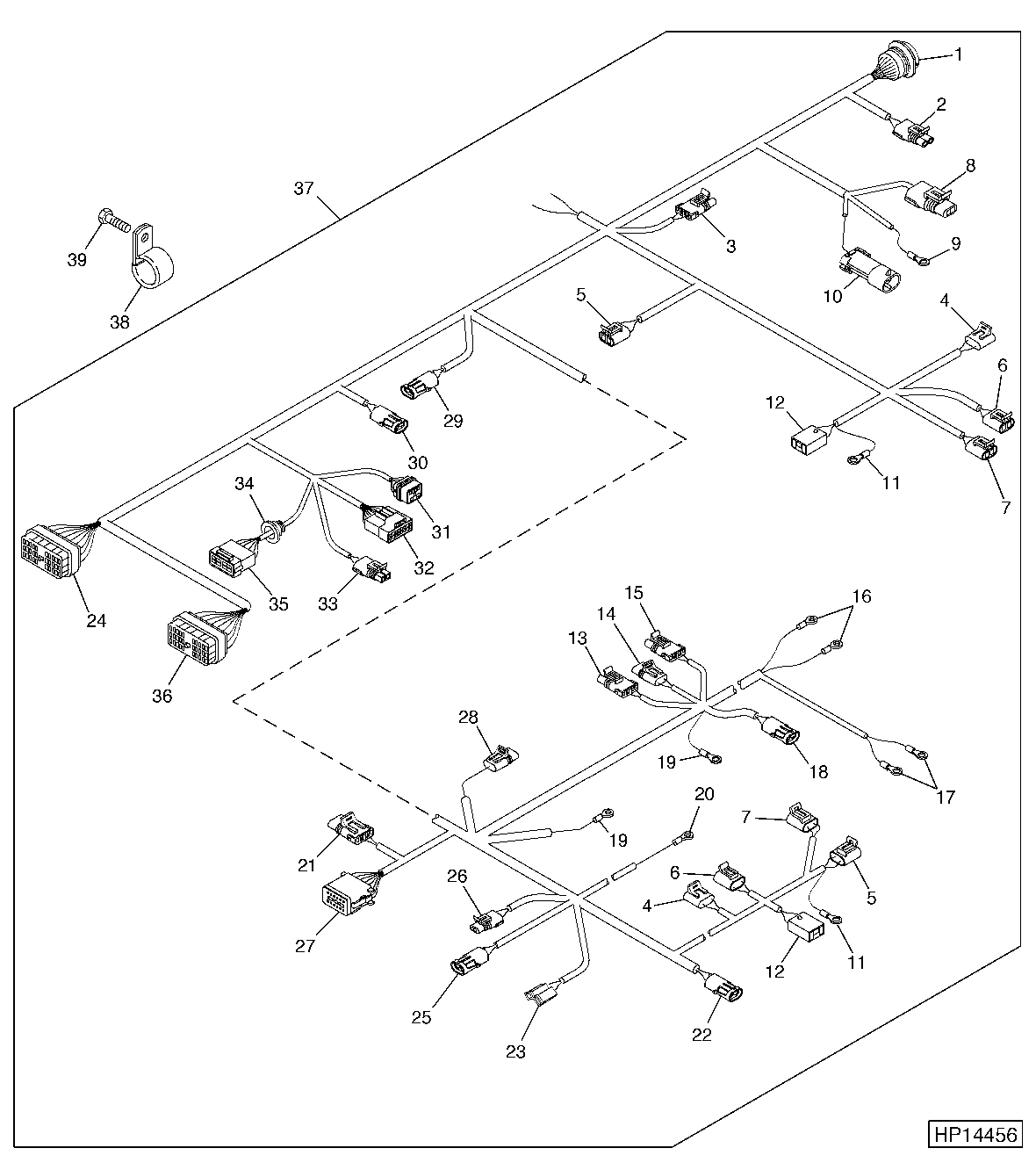

Engine Wiring Harness (8.1 Liter Engine) ( - 710200)
