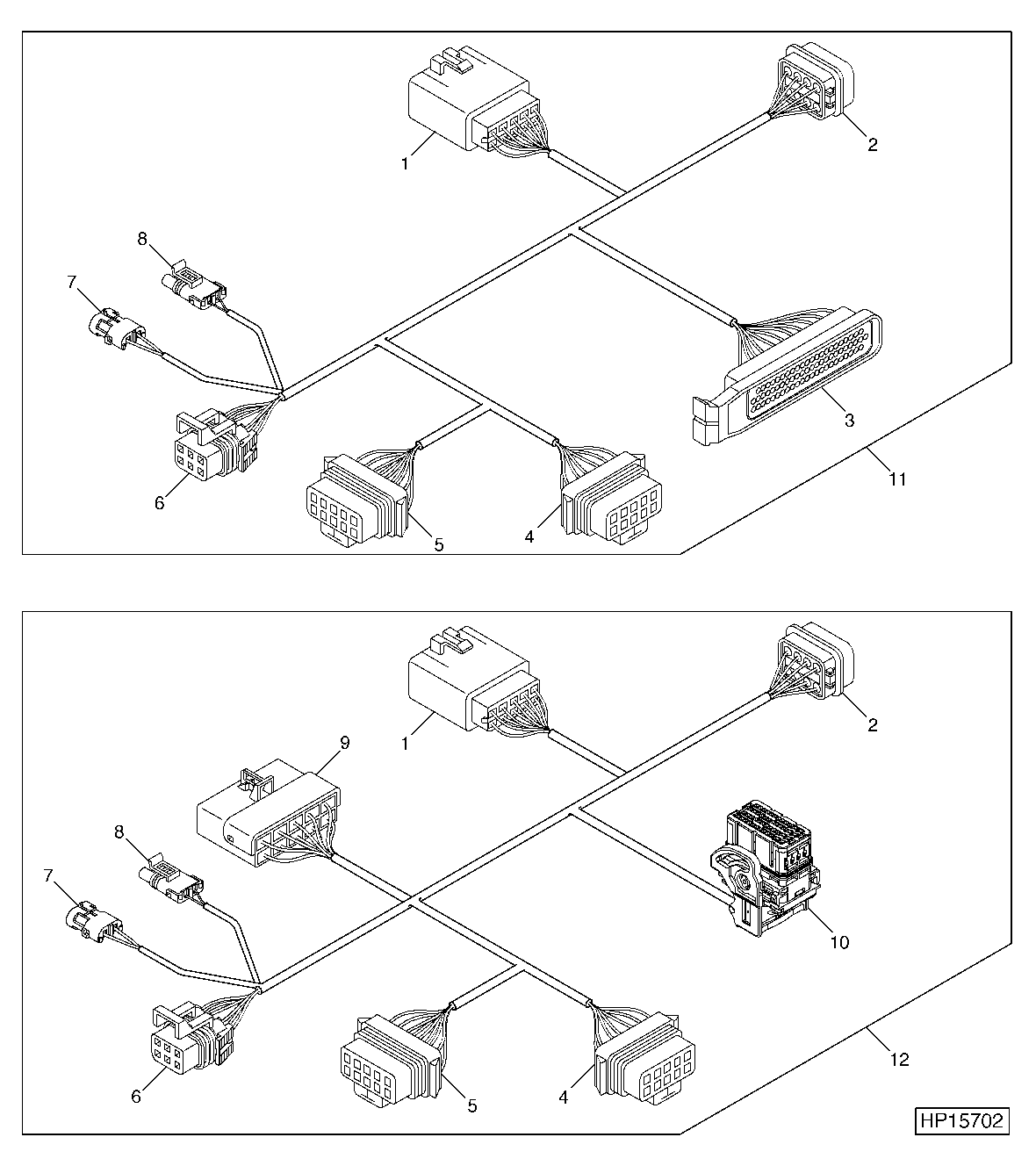

Auxiliary Cab Wiring Harness With AutoTrac™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	ARMREST HARNESS
2	-	1	Part 2	WALL PLATE
3	-	1	Part 3	GATEWAY
4	57M7262	1	Elec. Connector Housing	GREENSTAR™ DISPLAY
4	R104846	1	Elec. Connector Terminal	-
4	R104701	1	Elec. Connector Terminal	-
4	57M7258	1	Elec. Connector Seal	-
5	57M8203	1	Electrical Connector Assy	MAPPING COMPUTER
5	R104846	1	Elec. Connector Terminal	-
5	57M7258	1	Elec. Connector Seal	-
5	57M7259	1	Elec. Connector Seal	-
6	57M7260	1	Elec. Connector Housing	CAN BUS TERMINATOR
6	57M7291	1	Electrical Connector Assy	-
6	RE183146	1	Electronic Terminator	-
7	R78053	1	Electrical Connector Assy	PCRV
8	RE12363	1	Electrical Connector Assy	PCRV
8	R78060	1	Elec. Connector Terminal	-
8	R78063	1	Elec. Connector Seal	-
9	R125822	1	Elec. Connector Terminal	MAPPING COMPUTER ON CAB MAIN HARNESS
10	57M8527	1	Elec. Connector Housing	GATEWAY
11	AH211714	1	Wiring Harness	SUB FOR AH207947
12	AH216738	1	Wiring Harness	AUXILIARY CAB, (USE WITH RE231717) (SUB FOR AH213734)

Auxiliary Cab Wiring Harness With AutoTrac™
