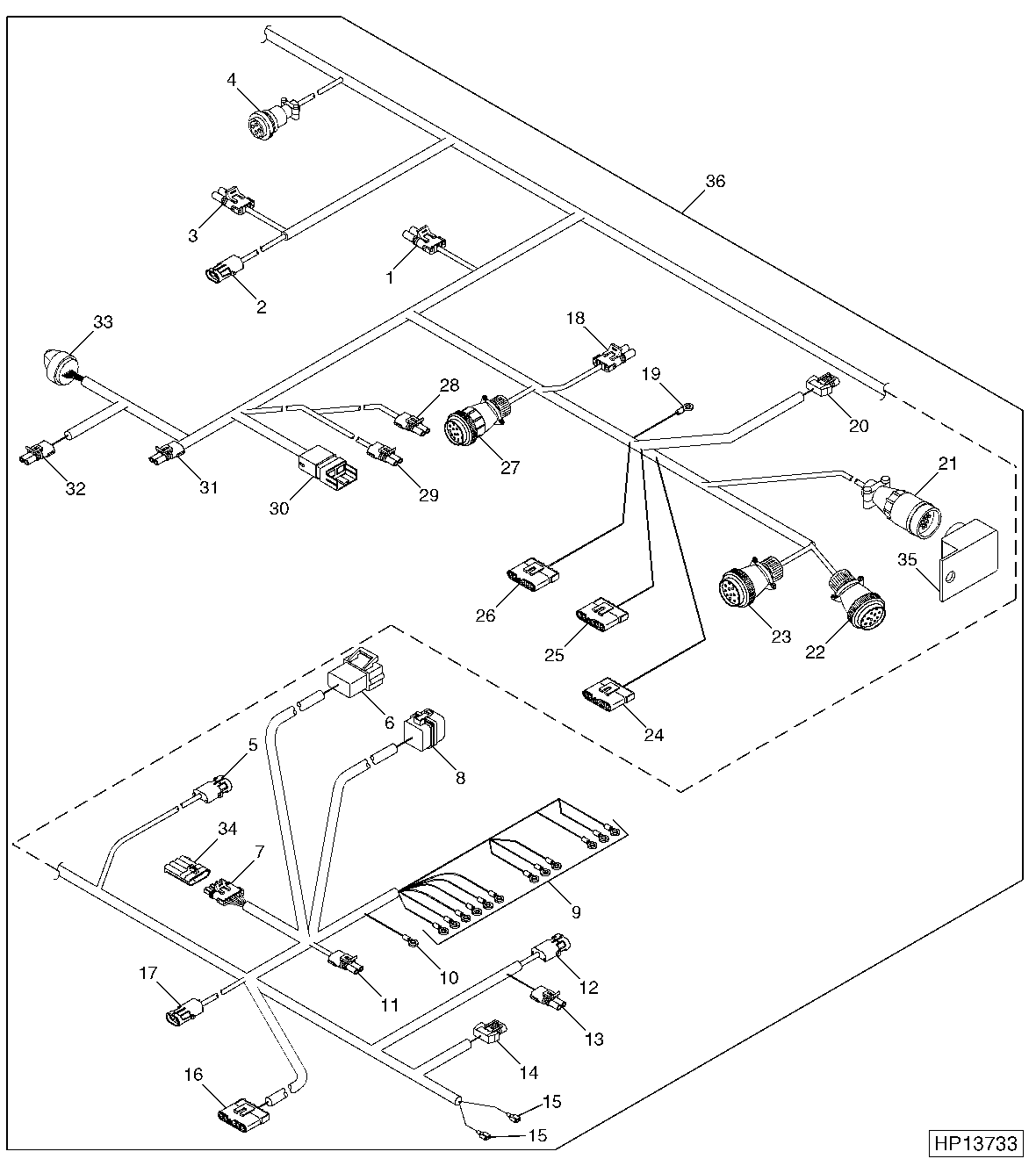

L.H. Main Wiring Harness (CIS) - Continued

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
22	R77465	1	Elec. Connector Terminal	-
22	H118426	1	Electrical Connector Assy	VALVE STACK
23	H118426	1	Electrical Connector Assy	VALVE STACK
23	R77465	1	Elec. Connector Terminal	-
24	57M8193	1	Electrical Connector Assy	-
24	57M8326	1	Electrical Connector Assy	-
24	57M8611	1	Electrical Connector Assy	-
25	57M8193	1	Electrical Connector Assy	-
25	57M8326	1	Electrical Connector Assy	-
25	57M8611	1	Electrical Connector Assy	-
26	57M8193	1	Electrical Connector Assy	-
26	57M8326	1	Electrical Connector Assy	-
26	57M8611	1	Electrical Connector Assy	-
27	H118422	1	Elec. Connector Terminal	HILLMASTER
28	R78063	1	Elec. Connector Seal	-
28	RE12363	1	Electrical Connector Assy	GULLWING SWITCH
28	R78060	1	Elec. Connector Terminal	-
29	RE12363	1	Electrical Connector Assy	SHOE LIGHT SWITCH
29	R78060	1	Elec. Connector Terminal	-
29	R78063	1	Elec. Connector Seal	-
30	57M8130	1	Elec. Connector Housing	FAN SPEED ACTUATOR
30	57M7510	2	Elec. Connector Terminal	-
31	R78060	1	Elec. Connector Terminal	-
31	R78063	1	Elec. Connector Seal	-
31	RE12363	1	Electrical Connector Assy	CLEAN GRAIN
32	RE12363	1	Electrical Connector Assy	POWERED REAR WHEELS
32	R78060	1	Elec. Connector Terminal	-
32	R78063	1	Elec. Connector Seal	-
33	AZ13378	1	Socket Outlet	TRAILER SOCKET
34	AH165526	1	Module	-
35	AH165984	1	Module	-
36	AH201480	1	Wiring Harness	LH MAIN

L.H. Main Wiring Harness (CIS) - Continued
