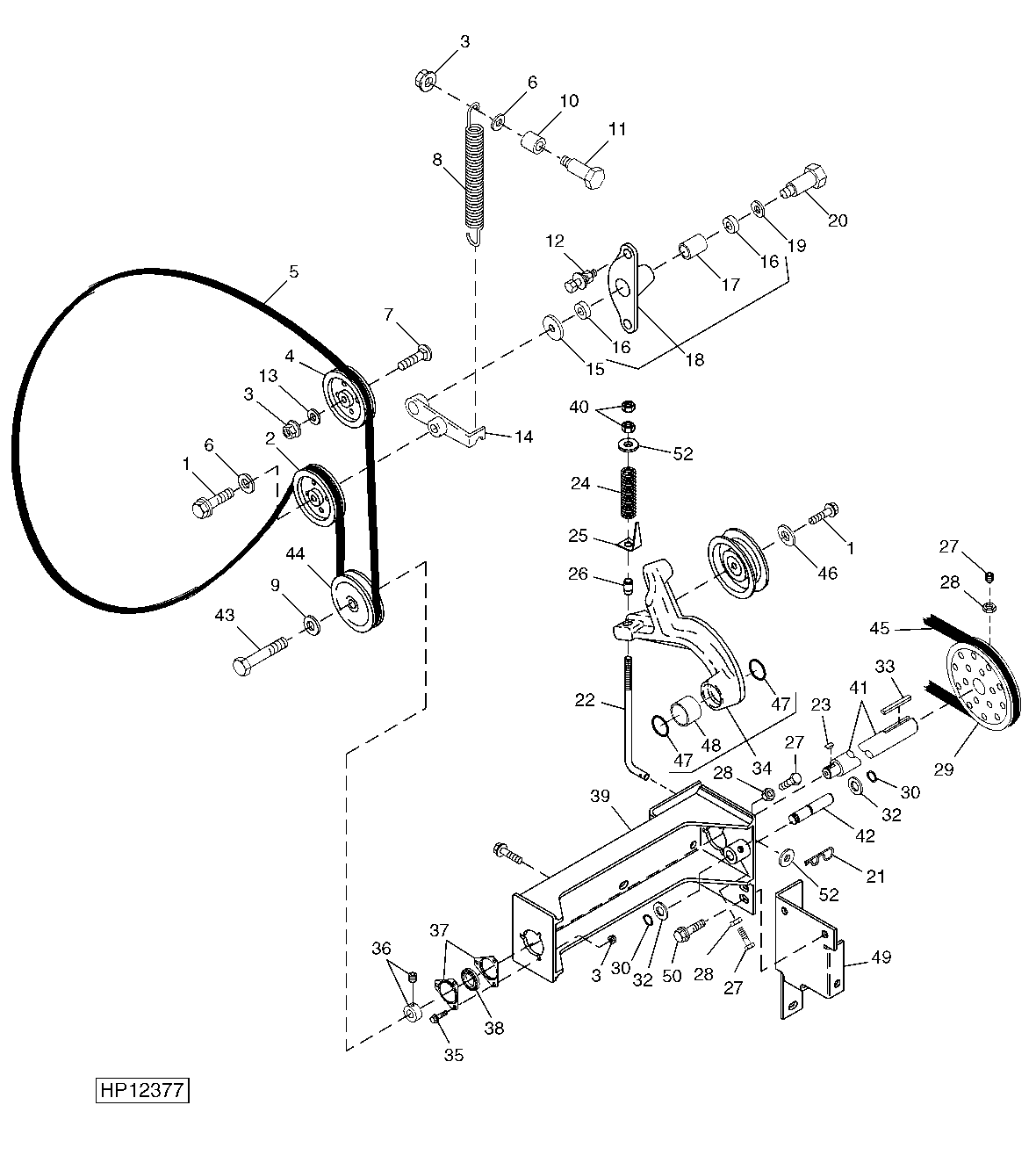

Rotary Screen Drive and Idler Arms (700701 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7867	2	Screw	M8 X 25
2	AH140497	1	Center Sheave	-
3	14M7298	1	Flange Nut	M8
4	AH169549	1	Center Sheave	-
5	H175632	1	V-Belt	-
6	24M7207	1	Washer	8.400 X 24 X 2 mm
7	03M7223	1	Bolt	M8 X 60
8	H164808	1	Extension Spring	-
9	H158845	3	Washer	8.330 X 28.580 X 2.640 mm (21/64" X 1-1/8" X 0.104")
10	28H1720	1	Bushing	0.423" X 0.675" X 27/32"
11	H119007	1	Screw	-
12	19M7867	2	Screw	M8 X 25
12	24H1296	2	Washer	11/32" X 1-3/8" X 0.134"
12	14M7298	2	Flange Nut	M8
13	24H1850	1	Washer	17/32" X 1-1/4" X 0.180"
14	H146064	1	Pitman Arm	-
15	24H1657	1	Washer	21/64" X 1-1/4" X 7/64"
16	AH10888	2	Seal	-
17	R36119	1	Bushing	-
18	AH140170	1	Support	-
19	24H1341	1	Washer	17/32" X 15/16" X 0.060"
20	M111701	1	Screw	M8 X 51
21	J16931	1	Pin	-
22	H173969	1	Hook Bolt	-
23	26M7002	1	Shaft Key	5 X 16 mm
24	H886B	1	Compression Spring	-
25	H162004	1	Gauge	-
26	H134214	1	Guide	-
27	A50744	4	Bolt	M8 X 25
28	14M7273	4	Nut	M8
29	AH115639	1	Pulley	-
30	40M7259	1	Snap Ring	-
31	AH140497	1	Center Sheave	-
32	24H1448	1	Washer	1-1/32" X 1-1/2" X 0.120"
33	49M4100	1	Shaft Key	6 X 25 mm
34	AH159992	1	Arm	-
35	19M7866	6	Screw	M8 X 20
36	AZ10044	2	Eccentric Locking Collar	-
37	H103264	4	Pressed Flanged Housing	-
38	JD39102	2	Ball Bearing	-
39	AH201749	1	Support	-
40	14M7274	2	Nut	M10
41	H175557	1	Shaft	-
42	H176250	1	Pin	-
43	19M7865	1	Screw	M8 X 16
44	H159224	1	Pulley	-
45	H177589	1	V-Belt	-
46	24M7207	1	Washer	8.400 X 24 X 2 mm
47	AA5607R	2	Seal	-
48	H171061	1	Bushing	SUB FOR H99147
49	AH171609	1	Support	-
50	19M7786	4	Screw	M10 X 30
51	14M7296	2	Flange Nut	M10
52	24M7178	2	Washer	10.500 X 30 X 2.500 mm

Rotary Screen Drive and Idler Arms (700701 - )
