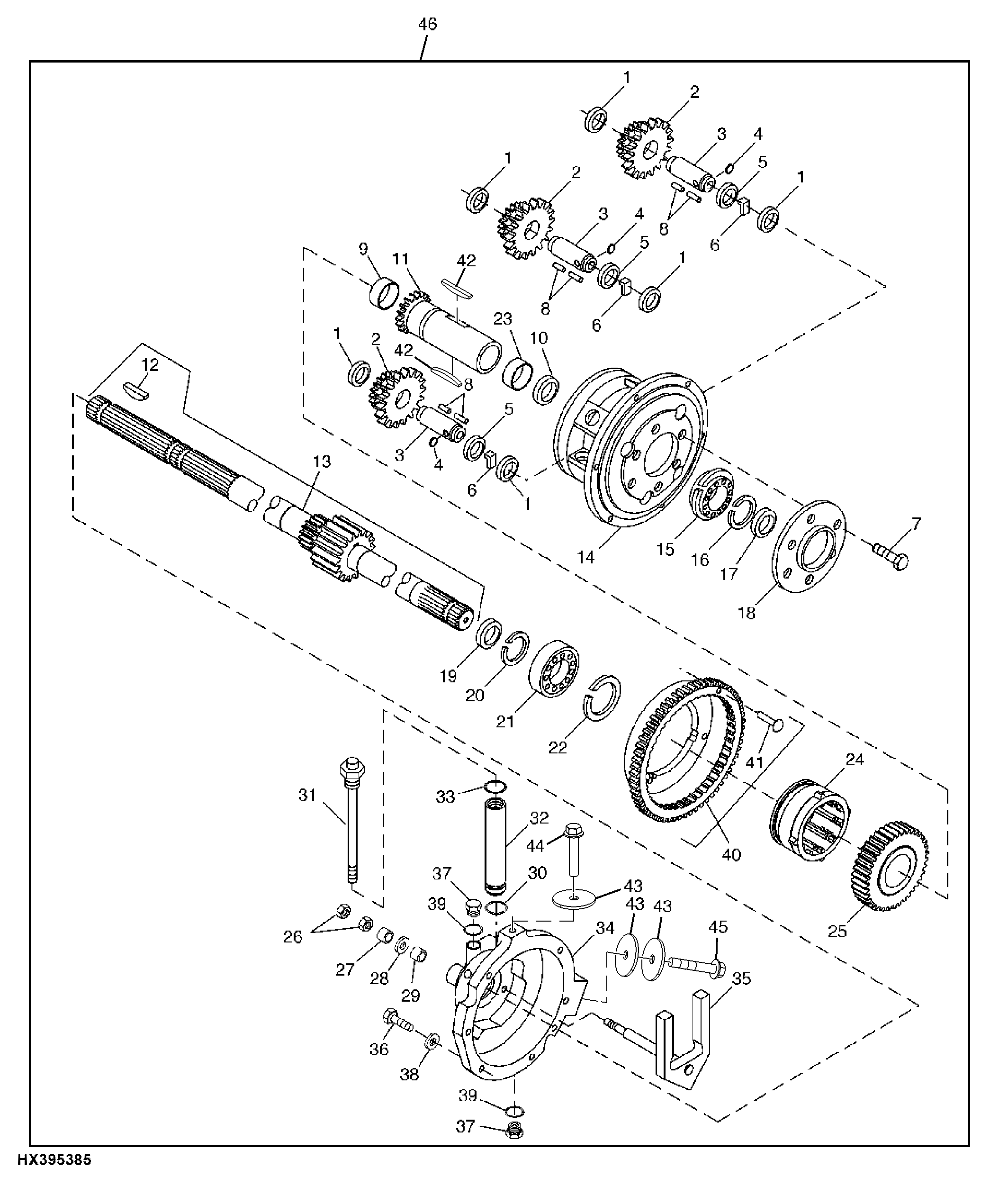

Reverser Gear Box, Standard ( - 700200)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66197	6	Thrust Washer	-
2	H168994	3	Pinion	-
3	R33079	3	Pin	-
4	H871R	3	Ball	-
5	R33088	3	Washer	-
6	H89617	3	Spacer	-
7	19M7938	6	Cap Screw	M10 X 20
8	R33058	186	NEEDLE ROLLER	6 Sets of 31
9	JD8819	1	Needle Bearing	-
10	E53699	1	Seal	-
11	H166216	1	Gear	Z = 21, Input
11	H201578	1	Gear	Z = 21, Input ALSO ORDER (2) Z61818
12	26H104	1	Shaft Key	5/16" X 2-1/8"
13	AH152937	1	Shaft	-
13	AH135606	1	Shaft	-
14	H168125	1	Cover	-
15	JD10010	1	Ball Bearing	-
16	R39081	1	Snap Ring	-
17	AH144715	1	Seal	-
18	H150662	1	Bearing Housing W/O Bearing	-
19	AH140185	1	Seal	-
20	N71922	1	Snap Ring	-
21	JD10011	1	Ball Bearing	-
22	BP13620	1	Snap Ring	-
23	AH150686	1	Needle Bearing	-
24	H132328	1	Shift Collar	-
25	H106073	1	Gear	Z = 38, Output
26	14H832	2	Nut	9/16"
27	28H2499	1	Bushing	0.742" X 1.050" X 5/8"
28	24H1794	1	Washer	21/32" X 1-1/2" X 0.120"
29	AN113330	1	Seal	-
30	R26906	2	O-Ring	-
31	AH167602	1	Dipstick	SUB FOR AH140615
32	H140195	1	Spacer	-
33	R26375	1	O-Ring	-
34	AH159233	1	Housing	-
35	AH93110	1	Shifter	-
36	19M7402	6	Cap Screw	M10 X 25
36	19H1731	6	Cap Screw	3/8" X 1"
37	R27218	2	Fitting Plug	-
37	R27218	2	Fitting Plug	-
37	R39112	2	Fitting	-
37	R39112	2	Fitting	-
38	12M7135	6	Lock Washer	10 mm
38	12H304	6	Lock Washer	3/8"
39	R26448	1	O-Ring	-
39	R26448	1	O-Ring	-
39	R26375	1	O-Ring	-
39	R26375	1	O-Ring	-
40	AH105040	1	Gear	Z = 28
41	16M2556	3	Rivet	8 X 45 mm
42	Z61818	2	Shaft Key	USE WITH H201578
43	H163726	3	Washer	-
44	19M7827	1	Screw	M16 X 80
45	19M7845	1	Screw	M16 X 90
46	AH153341	1	Gear Case	-
46	AH156054	1	Case	-

Reverser Gear Box, Standard ( - 700200)

Нет текстового описания
