Fuel Injection Pump, Fuel Rail, Fuel Lines And Engine Controller (6068) (215285 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R134920	12	Nut	-
2	RE509093	1	Wiring Harness	-
3	19M7775	2	Screw	M6 X 16
4	R97061	6	Tee Fitting	-
5	R503307	4	Line	-
6	RE507541	2	Fuel Line	(NO.5 AND 6)
7	RE507540	2	Fuel Line	(NO.3 AND 4)
8	RE515636	6	Restrictor	-
9	19M8528	3	Screw	M10 X 55, NO. 3
10	19M7784	2	Screw	M10 X 20, NO. 4
11	RE507538	1	Fuel Line	NO. 5
12	19M7868	2	Screw	M8 X 30, NO. 6
13	RE507959	1	Fuel Injection Pump	-
14	14M7298	3	Flange Nut	M8
15	R116031	1	O-Ring	-
16	R55453	1	O-Ring	-
17	R91360	1	Nut	-
18	R502541	1	Gear	(30 TEETH)
19	R504577	1	Adapter	-
20	R516125	1	O-Ring	-
21	RE507537	1	Fuel Line	-
22	RE520930	6	Sensor	(RAIL PRESSURE) (SUB FOR RE515635)
23	RE520928	1	Rail	(SUB FOR RE507863)
23	RE516335	1	Pressure Relief Valve	RAIL PRESSURE RELIEF VALVE (INCLUDES R515454)
23	R515454	1	Shim	-
24	R504239	1	Bracket	-
25	RE507539	2	Fuel Line	(N0.1 AND 2)
26	R503308	6	Fitting	-
27	R123593	14	Tube Nut	-
28	RE522510	1	Engine Controller	(MARKED RE508774) (SUB FOR RE517223)
29	R51936	14	Sealing Washer	-
30	R65397	6	O-Ring	-
31	RE519144	1	Sensor	(SUB FOR RE508195) (CRANKSHAFT SPEED SENSOR)
32	51M7044	1	O-Ring	17.300 X 2.200 mm, (USE WITH RE508195)
..	RE516336	1	Fuel Temperature Sensor	-

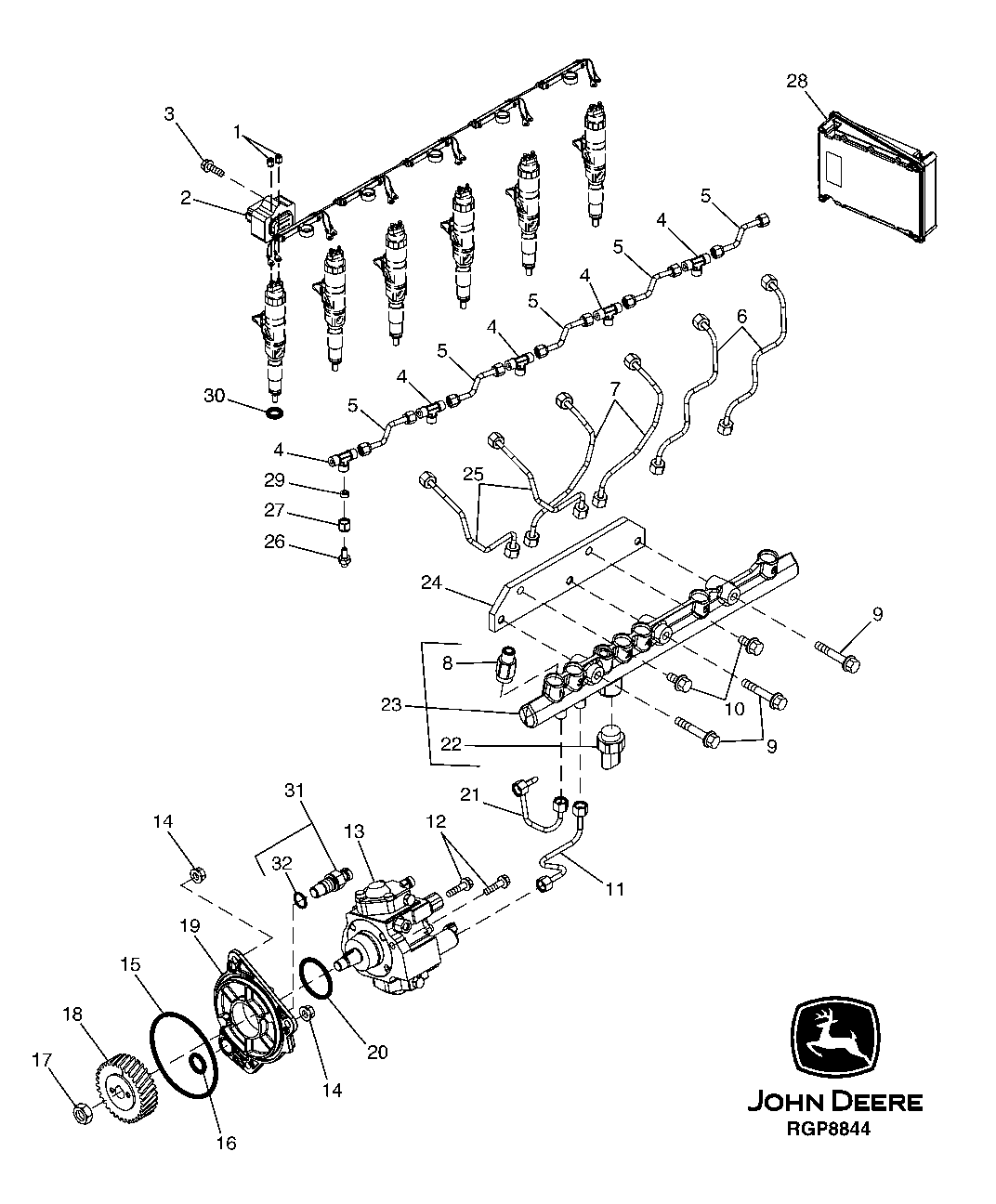

Fuel Injection Pump, Fuel Rail, Fuel Lines And Engine Controller (6068) (215285 - )
