Открытый узел

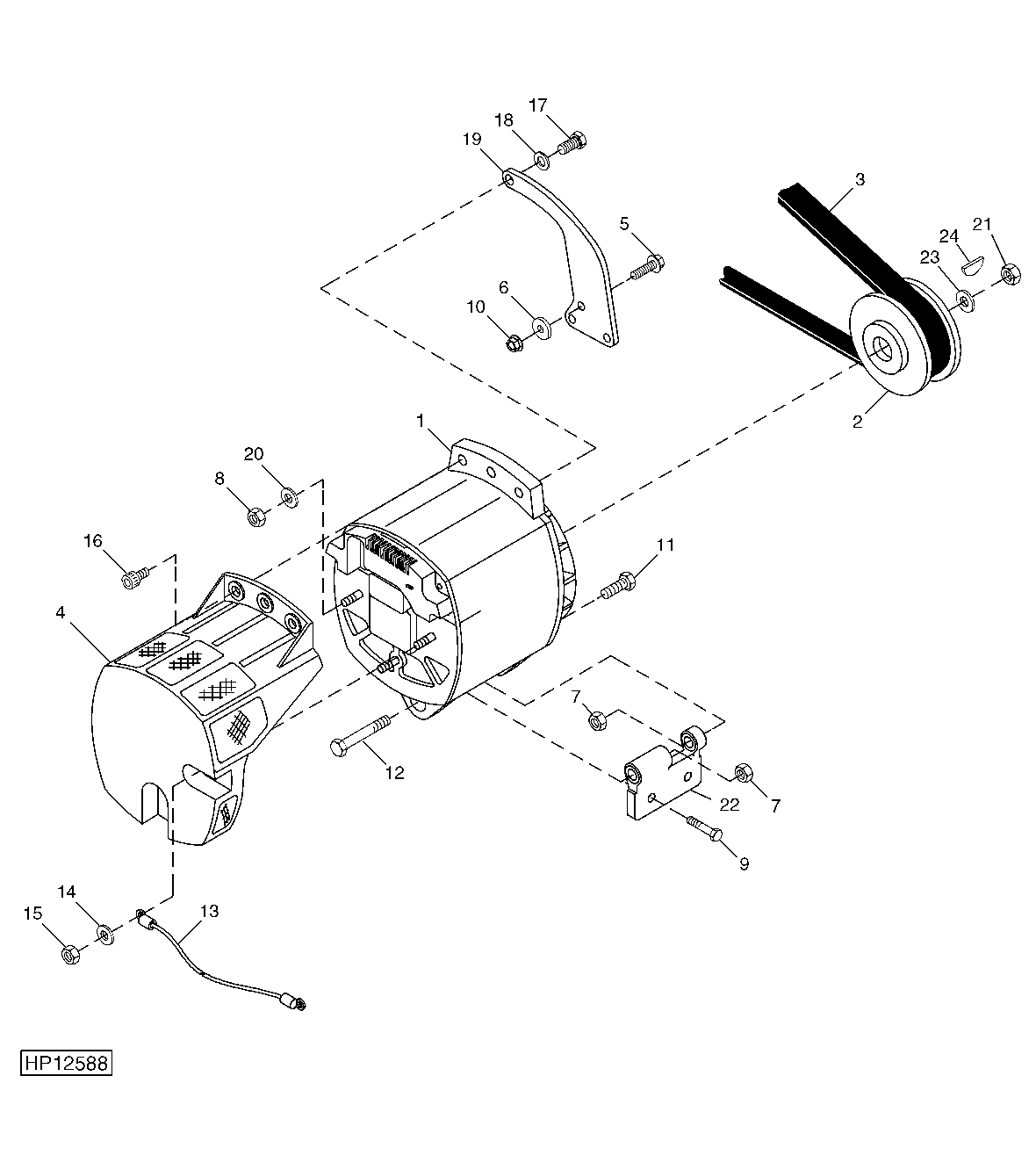

Alternator, Sheave And Belt (185 AMP)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH211398	1	Alternator	(9550 (700201- ) 9550SH (700701- )) (SUB FOR AH202832 OR AH209875) W/O KEY
2	H175511	1	Pulley	(9550 (700201- ) 9550SH (700701- ))
3	H205240	1	V-Belt	(9550 (700201- ) 9550SH (700701- ))
4	AH163488	1	Screen	(9550 (700201- ) 9550SH (700701- ))
5	19M7835	3	Screw	(9550 (700201- ) 9550SH (700701- )) M10 X 35
6	R43696	3	Washer	(9550 (700201- ) 9550SH (700701- ))
7	14M7299	2	Flange Nut	(9550 (700201- ) 9550SH (700701- )) M12
8	14H650	1	Nut	(9550 (700201- ) 9550SH (700701- )) 5/16"
9	19M7786	2	Screw	(9550 (700201- ) 9550SH (700701- )) M10 X 30
10	14M7296	3	Flange Nut	(9550 (700201- ) 9550SH (700701- )) M10
11	19M7791	1	Bolt	(9550 (700201- ) 9550SH (700701- )) M12 X 40
12	19M7817	1	Screw	(9550 (700201- ) 9550SH (700701- )) M12 X 70
13	AH201166	1	Wiring Harness	(9550 (700201- ) 9550SH (700701- ))
14	12H302	1	Lock Washer	(9550 (700201- ) 9550SH (700701- )) 1/4"
15	14H860	1	Nut	(9550 (700201- ) 9550SH (700701- )) 1/4"
16	19H2934	1	Screw	(9550 (700201- ) 9550SH (700701- )) 1/2" X 3/4"
17	19H2472	1	Cap Screw	(9550 (700201- ) 9550SH (700701- )) 1/2" X 1"
18	24M7047	1	Washer	(9550 (700201- ) 9550SH (700701- )) 13 X 24 X 2.500 mm
19	R502290	1	Strap	(9550 (700201- ) 9550SH (700701- ))
20	24H1776	1	Washer	(9550 (700201- ) 9550SH (700701- )) 5/16" X 47/64" X 0.065"
21	B30434	1	Lock Nut	(9550 (700201- ) 9550SH (700701- ))
22	H175616	1	Bracket	(9550 (700201- ) 9550SH (700701- ))
23	24M7421	1	Washer	(9550 (700201- ) 9550SH (700701- )) 16.300 X 32 X 2 mm
24	26H76	1	Shaft Key	(9550 (700201- ) 9550SH (700701- )) 5/32" X 3/4"
..	AH211399	1	Voltage Regulator	(9550 (700201- ) 9550SH (700701- )) (SUB FOR AH207384 OR AH209876)

Alternator, Sheave And Belt (185 AMP)

Нет текстового описания
