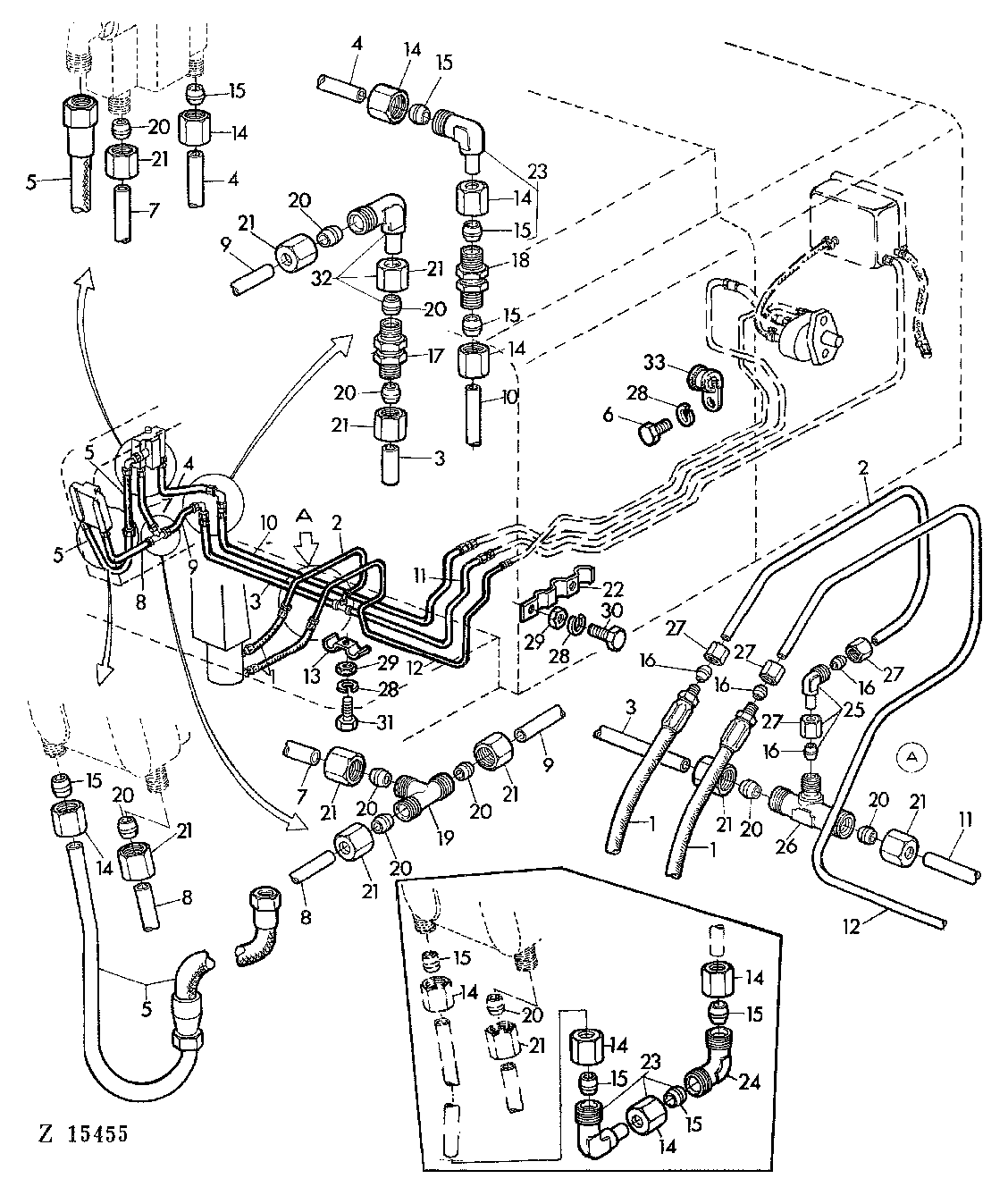

HYDRAULIC LINES BETWEEN PUMP AND CONTROL VALVE [02C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AZ29328	2	HYDRAULIC HOSE	(SUB FOR AZ16228)
2	AZ22181	1	OIL LINE	INCL KEYS 16,27
3	AZ22182	1	OIL LINE	INCL KEYS 20,21
4	AZ22185	1	OIL LINE	INCL KEYS 14,15
5	AZ24872	1	HYDRAULIC HOSE	(SUB FOR AZ22186, AZ22187)
6	19M7159	1	CAP SCREW	M6X15
7	AZ22188	1	OIL LINE	INCL KEYS 20,21
8	AZ22189	1	OIL LINE	INCL KEYS 20,21
9	AZ22190	1	OIL LINE	INCL KEYS 20,21
10	AZ22203	1	OIL LINE	INCL KEYS 14,15
11	AZ22204	1	OIL LINE	INCL KEYS 20,21
12	AZ22205	1	OIL LINE	INCL KEYS 16,27
13	Z22063	1	CLAMP	-
14	Z32973	1	TUBE NUT	-
15	Z32993	1	SLEEVE FITTING	-
16	Z32995	1	SLEEVE FITTING	-
17	Z32979	1	UNION FITTING	-
18	Z32982	1	UNION FITTING	-
19	Z32986	1	TEE FITTING	-
20	Z32992	1	SLEEVE FITTING	-
21	Z32972	1	TUBE NUT	-
22	Z30599	1	CLAMP	-
23	AZ21975	1	ELBOW FITTING	INCL KEYS 14,15
24	Z32990	1	ELBOW FITTING	-
25	AZ21974	1	Elbow Fitting	INCL KEYS 16,27
26	Z32987	1	TEE FITTING	-
27	Z32974	1	TUBE NUT	-
28	12M7012	1	LOCK WASHER	6MM
29	14M7027	1	NUT	M6
30	19M7168	1	Cap Screw	M6X30
31	19M7286	1	Cap Screw	M6X25
32	AZ21976	1	ELBOW FITTING	INCL KEYS 20,21
33	Z22071	1	CLAMP	-

HYDRAULIC LINES BETWEEN PUMP AND CONTROL VALVE [02C06]
