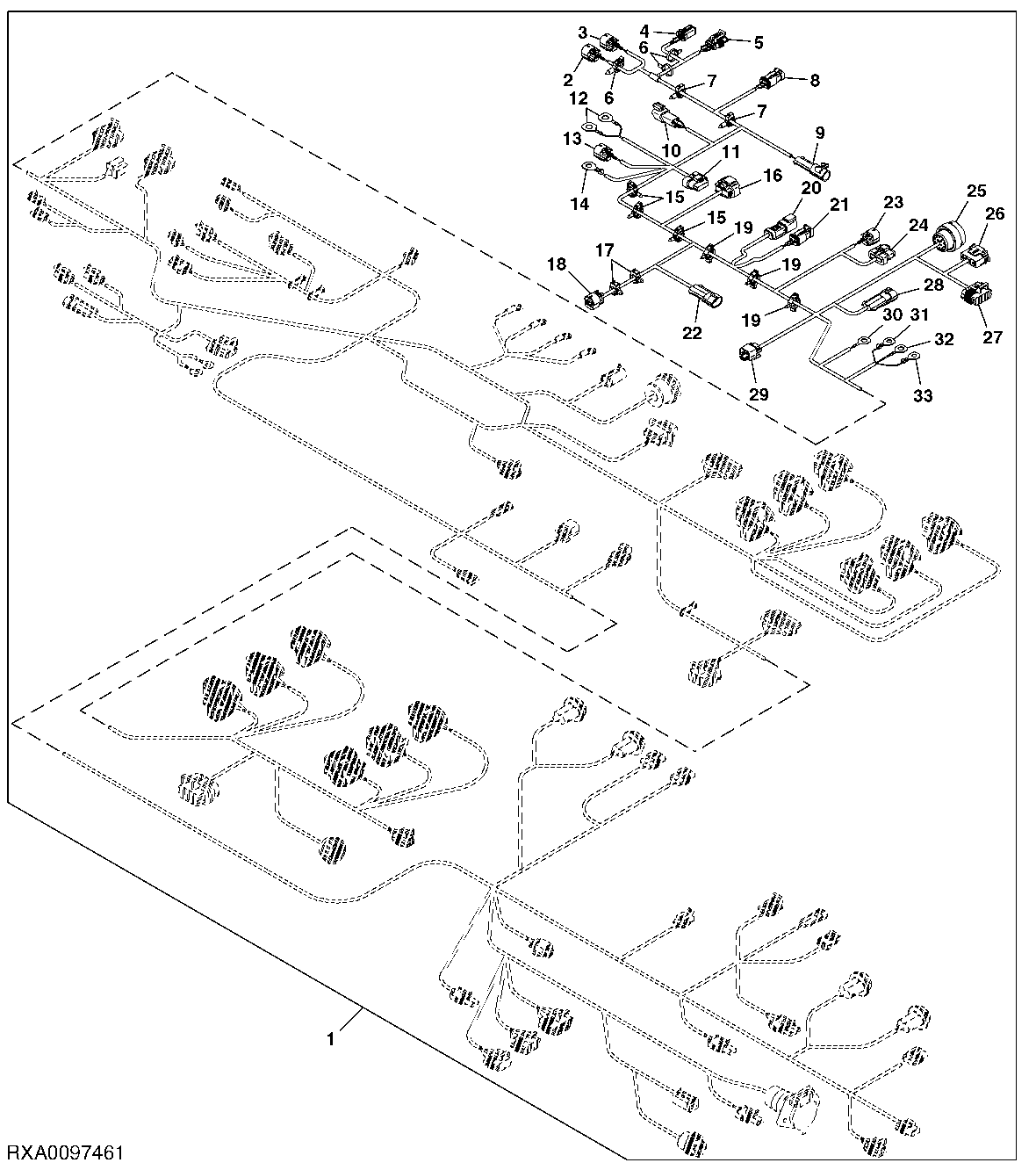

Engine and Chassis Wiring Harness Connectors (1/3) (NAV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307557	1	Chassis Wiring Harness	-
1	RE227796	1	Chassis Wiring Harness	-
2	57M8633	1	Elec. Connector Accessory	-
2	57M8601	1	Elec. Connector Housing	COMP INLET TEMPERATURE
3	57M8601	1	Elec. Connector Housing	COOLANT
3	57M8633	1	Elec. Connector Accessory	-
4	57M8635	1	Elec. Connector Housing	VGT ACTUATOR
4	57M8016	1	Elec.Connect Locking Device	-
5	57M8542	1	Elec. Connector Housing	VGT SPEED SENSOR
6	H141394	2	Clip	-
7	57M8855	2	Elec. Connector Accessory	-
8	57M8022	1	Elec.Connect Locking Device	-
8	57M8639	1	Elec. Connector Housing	EGR MIXED AIR
9	57M7273	1	Elec. Connector Terminal	A/C COMP CLUTCH
9	57M7295	1	Elec.Connect Locking Device	-
10	57M8735	1	Elec. Connector Housing	MANIFOLD
11	57M8552	1	Elec. Connector Housing	-
12	57M8869	2	Elec. Connector Terminal	A/C CLUTCH GROUND
13	57M8601	1	Elec. Connector Housing	FAN SPEED
13	57M8873	1	Elec. Connector Terminal	-
14	57M8873	1	Elec. Connector Terminal	ALTERNATOR
15	57M9206	3	Clip	-
16	57M9448	1	Elec.Connect Locking Device	-
16	57M8917	1	Elec. Connector Housing	PUMP PRESSURE SENSOR
17	-	2	Part 25	-
18	57M8601	1	Elec. Connector Housing	ENGINE CRANK SENSOR
18	57M8633	1	Elec. Connector Accessory	-
19	57M9190	2	Clip	-
20	AZ100110	1	Electrical Connector Assy	EGR EXHAUST
20	57M7621	1	Elec.Connect Locking Device	-
21	57M8639	1	Elec. Connector Housing	EGR FRESH AIR
21	57M8022	1	Elec.Connect Locking Device	-
22	57M7256	1	Elec. Connector Housing	WATER IN FUEL
22	57M7289	1	Elec.Connect Locking Device	-
23	57M8601	1	Elec. Connector Housing	ENGINE CAM SENSOR
24	57M8552	1	Elec. Connector Housing	-
25	57M7778	1	Elec. Connector Terminal	FUEL INJECTION
25	57M9657	1	Elec.Connect Locking Device	-
26	57M7553	1	Elec. Connector Housing	HOOD 2
27	57M7262	1	Elec. Connector Housing	HOOD 1
28	57M7256	1	Elec. Connector Housing	HYDRAULIC OIL LEVEL
28	57M7289	1	Elec.Connect Locking Device	-
29	57M8924	1	Elec. Connector Housing	HYDRAULIC OIL TEMPERATURE
30	-	1	Part 44	START MOTOR
31	57M8873	1	Elec. Connector Terminal	-
32	57M8866	1	Elec. Connector Terminal	-
33	57M8873	1	Elec. Connector Terminal	-

Engine and Chassis Wiring Harness Connectors (1/3) (NAV)
