Открытый узел

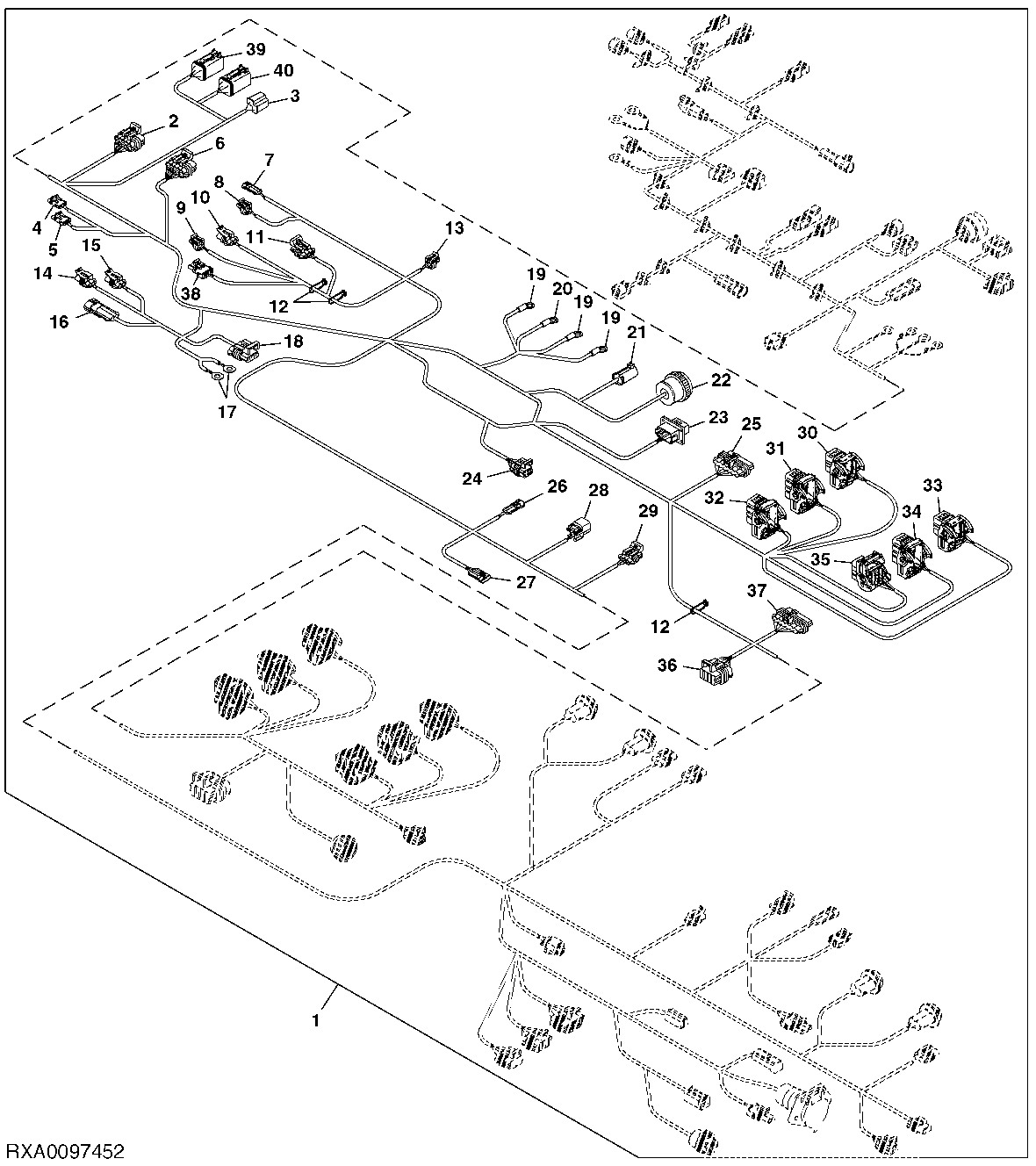

CHASSIS WIRING HARNESS CONNECTORS (2/3) (EV)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307560	1	Chassis Wiring Harness	-
1	RE266194	1	Chassis Wiring Harness	-
2	57M7262	1	Elec. Connector Housing	RADAR SENSOR
3	57M8812	1	Elec. Connector Housing	ETHER
4	R77476	1	Electrical Connector Assy	FRONT WASHER PUMP
5	R77476	1	Electrical Connector Assy	REAR WASHER PUMP
6	57M7262	1	Elec. Connector Housing	STEERING WHEEL POT
7	57M7289	1	Elec.Connect Locking Device	HYD FILTER SWITCH
7	57M7985	1	Electrical Connector Assy	-
8	57M8625	1	Elec. Connector Housing	OIL PRESSURE
8	57M8674	1	Elec. Connector Housing	-
9	57M8925	1	Diode	SUSPENSION PRESSURE SENSOR
9	57M8624	1	Elec.Connect Locking Device	-
10	RE12364	1	Electrical Connector Assy	COMP
11	57M7255	1	Elec. Connector Housing	BLEED VALVE
12	57M9229	2	Clip	-
13	57M8625	1	Elec. Connector Housing	AIR FLOW REST
13	57M8674	1	Elec. Connector Housing	-
14	57M7254	1	Elec. Connector Housing	FAN SPEED INCREASE
14	57M7289	1	Elec.Connect Locking Device	-
15	57M7254	1	Elec. Connector Housing	FAN SPEED DECREASE
15	57M7289	1	Elec.Connect Locking Device	-
16	57M7256	1	Elec. Connector Housing	STEERING FILTER RESTRICTION SWITCH
16	57M7289	1	Elec.Connect Locking Device	-
17	57M8901	2	Elec. Connector Terminal	CHASSIS GROUND 1 AND 2
18	57M7255	1	Elec. Connector Housing	DIAG PRESSURE
18	57M7290	1	Elec. Connector Accessory	-
19	57M8924	3	Elec. Connector Housing	-
20	57M9591	1	Elec. Connector Terminal	-
21	57M7540	1	Elec. Connector Terminal	-
21	57M7539	1	Elec. Connector Housing	CAB 3
22	57M8795	1	Elec. Connector Housing	CAB 1
22	57M9227	1	Elec. Connector Accessory	-
23	57M8792	1	Elec. Connector Housing	CAB 2
23	57M9227	1	Elec. Connector Accessory	-
24	57M7260	1	Elec. Connector Housing	PTO
24	57M7291	1	Electrical Connector Assy	-
25	57M9406	1	Elec. Connector Accessory	SS1
25	57M8326	1	Electrical Connector Assy	-
26	57M7256	1	Elec. Connector Housing	STEERING CASE PRESSURE SWITCH
26	57M7289	1	Elec.Connect Locking Device	-
27	57M7839	1	Electrical Connector Assy	ELECTRONIC DISPLACEMENT CONTROL
27	57M7469	1	Electrical Connector Assy	-
28	57M8924	1	Elec. Connector Housing	FUEL LEVEL
28	57M8633	1	Elec. Connector Accessory	-
29	57M7255	1	Elec. Connector Housing	RIGHT TENSION SENSOR
29	57M7290	1	Elec. Connector Accessory	-
30	57M8522	1	Elec. Connector Housing	VEHICLE LOAD CENTER (J1)
31	57M8527	1	Elec. Connector Housing	VEHICLE LOAD CENTER (J2)
32	57M8523	1	Elec. Connector Housing	VEHICLE LOAD SENSOR (J3)
33	57M8519	1	Elec. Connector Housing	FLEX HYDRAULIC CONTROL (J1)
34	57M8527	1	Elec. Connector Housing	FLEX HYDRAULIC CONTROL (J2)
35	57M8520	1	Elec. Connector Housing	FLEX HYDRAULIC CONTROL (J3)
36	57M7262	1	Elec. Connector Housing	OPTION CONNECTOR
37	57M9406	1	Elec. Connector Accessory	SS2
37	57M8326	1	Electrical Connector Assy	-
38	RE12364	1	Electrical Connector Assy	TSS
39	57M8022	1	Elec.Connect Locking Device	LEFT HI-LO
39	57M8012	1	Electrical Connector Assy	-
40	57M8022	1	Elec.Connect Locking Device	RIGHT HI-LO
40	57M8012	1	Electrical Connector Assy	-

CHASSIS WIRING HARNESS CONNECTORS (2/3) (EV)

Нет текстового описания
