Открытый узел

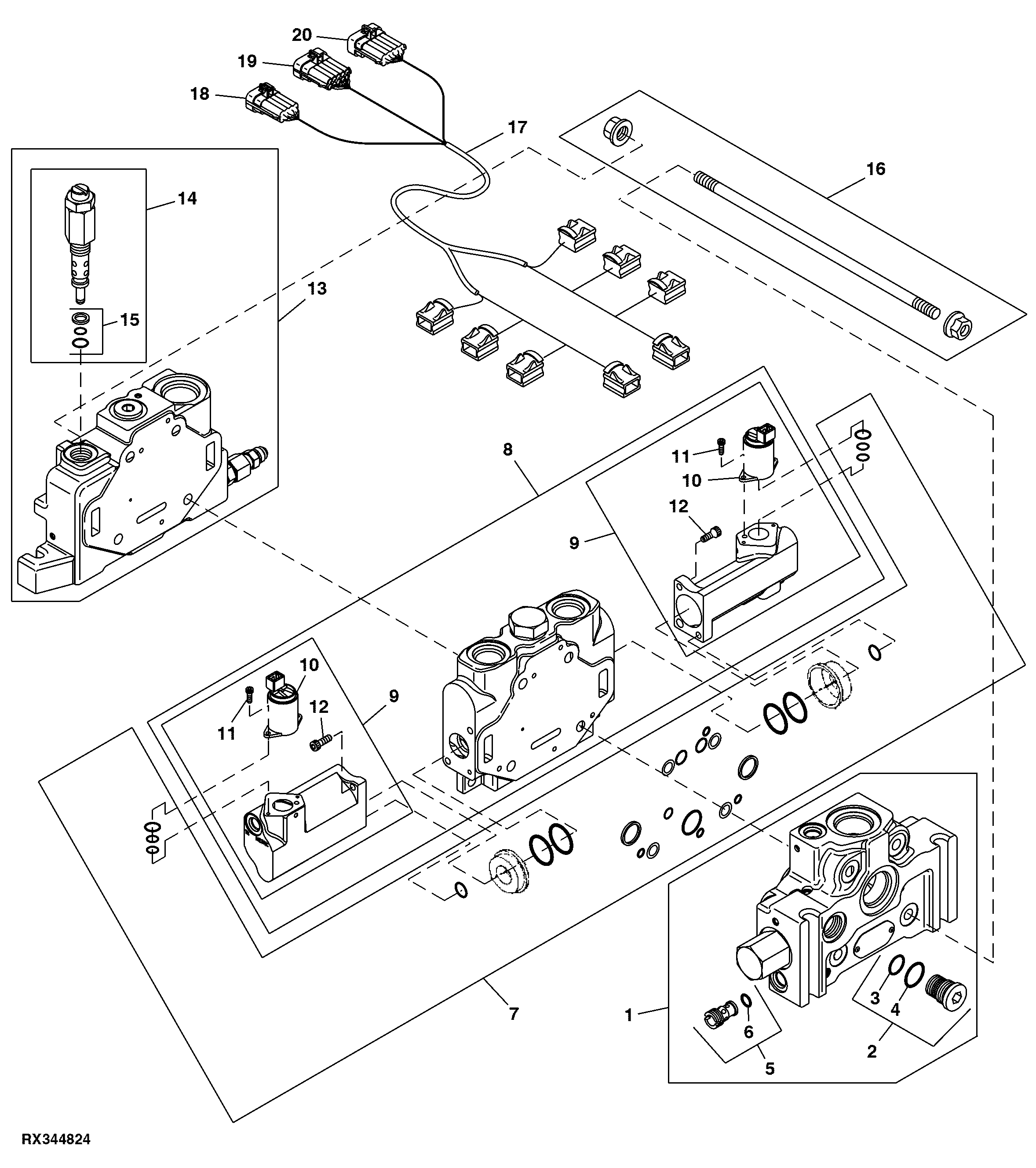

Selective Control Valve, For Scraper

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE208099	1	Valve	Inlet Section
2	RE213942	1	Hydraulic Filter	-
3	T77932	1	O-Ring	-
4	R26906	1	O-Ring	-
5	RE213943	1	Check Valve	Pilot Pressure Check Valve
6	T77814	1	O-Ring	-
7	RE213945	1	Seal Kit	(C)
8	RE255845	4	Elec-Hyd Proportional Valve	(4 SCV Scraper Tractor) (C)
8	RE255845	6	Elec-Hyd Proportional Valve	(6 SCV, Scraper Tractor)
9	RE255842	2	Solenoid Valve Coil	(C)
10	RE255109	1	Solenoid Valve	(C)
11	19M7702	2	Screw	(C) M4 X 10
12	19H3554	2	Screw	(C) 1/4" X 0.880"
13	RE213948	1	Valve	Outlet Section
14	RE213949	1	Pressure Relief Valve	Load Sense Relief Valve
15	RE213950	1	Seal Kit	-
16	RE213951	4	Rod	(4 SCV Scraper Tractor)
16	RE283714	4	Rod	(6 SCV, Scraper Tractor) (C)
17	RE252285	1	Wiring Harness	(4 SCV Scraper Tractor)
17	RE281286	1	Chassis Wiring Harness	(6 SCV, Scraper Tractor) (C)
17	RE288301	1	Wiring Harness	(6 SCV, Scraper Tractor) (C)
18	57M7264	1	Elec. Connector Housing	SCV 1
18	57M7283	1	Elec.Connect Locking Device	-
19	R125822	1	Elec. Connector Terminal	SCV 4
20	57M7265	1	Elec. Connector Housing	SCV 2 and SCV 3
..	RE292208	1	Field Installation Kit	5th And 6th High Flow SCV Kit
..	RE297144	1	Field Installation Kit	INCLUDES KEYS MARKED AS C, ORDER COMPONENTS

Selective Control Valve, For Scraper

Нет текстового описания
