Differential Yoke And Case Cover

Differential Yoke And Case Cover

Differential Yoke And Case Cover

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

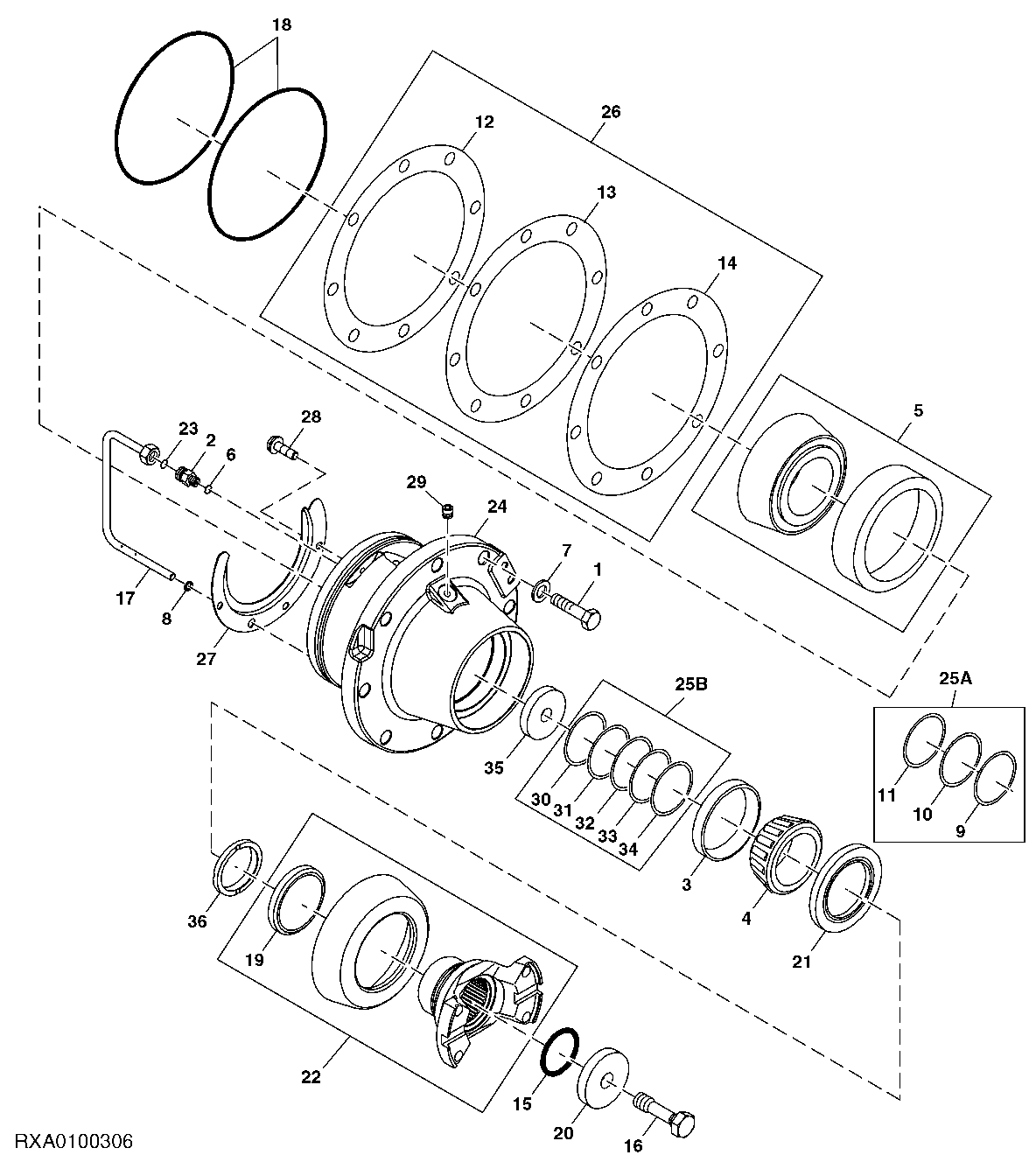

Differential Yoke And Case Cover

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R119211	8	Self-Locking Screw	(QUANTITY FOR ONE AXLE)
2	38H5008	1	Adapter Fitting	(QUANTITY FOR ONE AXLE)
3	R304673	1	Bearing Cup	(QUANTITY FOR ONE AXLE) SUB FOR R273058
3	R273058	1	Bearing Cup	(QUANTITY FOR ONE AXLE) ORDER R304673; ALSO ORDER RE305817, RE304674, R305032, (2) RE305950, RE303135 AND R290351, RE304726 OR RE304728
4	R273059	1	Bearing Cone	(QUANTITY FOR ONE AXLE) ORDER RE304674; ALSO ORDER RE305817, R304673, R305032, (2) RE305950, RE303135 AND R290351, RE304726 OR RE304728
4	RE304674	1	Bearing Cone	(QUANTITY FOR ONE AXLE) SUB FOR R273059
5	RE48761	1	Tapered Roller Bearing	(QUANTITY FOR ONE AXLE)
6	51M7040	1	O-Ring	(QUANTITY FOR ONE AXLE) 9.300 X 2.200 mm
7	R135543	8	Washer	(QUANTITY FOR ONE AXLE)
8	R223848	1	O-Ring	(QUANTITY FOR ONE AXLE)
9	R290128	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.178 mm, SUB FOR R243745; ORDER RE293331
9	R289333	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.305 mm, SUB FOR R243745; ORDER RE293331
10	R289334	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.381 mm, SUB FOR R243746; ORDER RE293331
11	R243747	1	Washer	(QUANTITY FOR ONE AXLE) TK = 0.25 mm, ORDER RE293331
12	R262387	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.08 mm
13	R262388	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.13 mm
14	R262389	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.25 mm
15	R72560	1	O-Ring	(QUANTITY FOR ONE AXLE)
16	R98309	1	Cap Screw	(QUANTITY FOR ONE AXLE)
17	RE263923	1	Oil Line	(QUANTITY FOR ONE AXLE)
18	U42016	1	O-Ring	(QUANTITY FOR ONE AXLE)
19	YZ502316	1	V-Ring Seal	(QUANTITY FOR ONE AXLE)
20	YZ502157	1	Washer	(QUANTITY FOR ONE AXLE)
21	YZ502166	1	Seal	(QUANTITY FOR ONE AXLE)
22	RE303135	1	Universal Joint Yoke	(QUANTITY FOR ONE AXLE) SUB FOR YZ502357
23	T77613	1	O-Ring	(QUANTITY FOR ONE AXLE)
24	RE291724	1	Bearing Housing W/O Bearing	(QUANTITY FOR ONE AXLE) SUB FOR R258552; ORDER RE305817; ALSO ORDER R304673, RE304674, R305032, (2) RE305950, RE303135 AND R290351, RE304726 OR RE304728
24	RE305817	1	Bearing Housing W/O Bearing	(QUANTITY FOR ONE AXLE) SUB FOR RE291724; INCLUDES AT107510
26	RE263256	1	Shim Kit	(QUANTITY FOR ONE AXLE) INCLUDES (3) R262387, (2) R262388 AND (2) R262389
27	R291725	1	Oil Cup	(QUANTITY FOR ONE AXLE)
28	R77337	3	Cap Screw	(QUANTITY FOR ONE AXLE)
29	AT107510	2	Plug	(QUANTITY FOR ONE AXLE)
30	R305204	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.254 mm
31	R305205	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.305 mm
32	R305206	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.330 mm
33	R305207	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.381 mm
34	R305208	1	Shim	(QUANTITY FOR ONE AXLE) TK = 0.406 mm
35	R305032	1	Spacer	(QUANTITY FOR ONE AXLE)
36	R290351	1	Spacer	(QUANTITY FOR ONE AXLE) USE WITH RE303135
25A	RE293331	1	Shim Kit	(QUANTITY FOR ONE AXLE) INCLUDES (2) R289333, (2) R290128, (2) R289334 AND (3) R243747; SUB FOR RE271052; USE WITH RE291724
25B	RE305950	1	Shim Kit	(QUANTITY FOR ONE AXLE) INCLUDES (3) R305204, (3) R305205, (3) R305206, (3) R305207 AND (3) R305208; USE WITH RE305817
