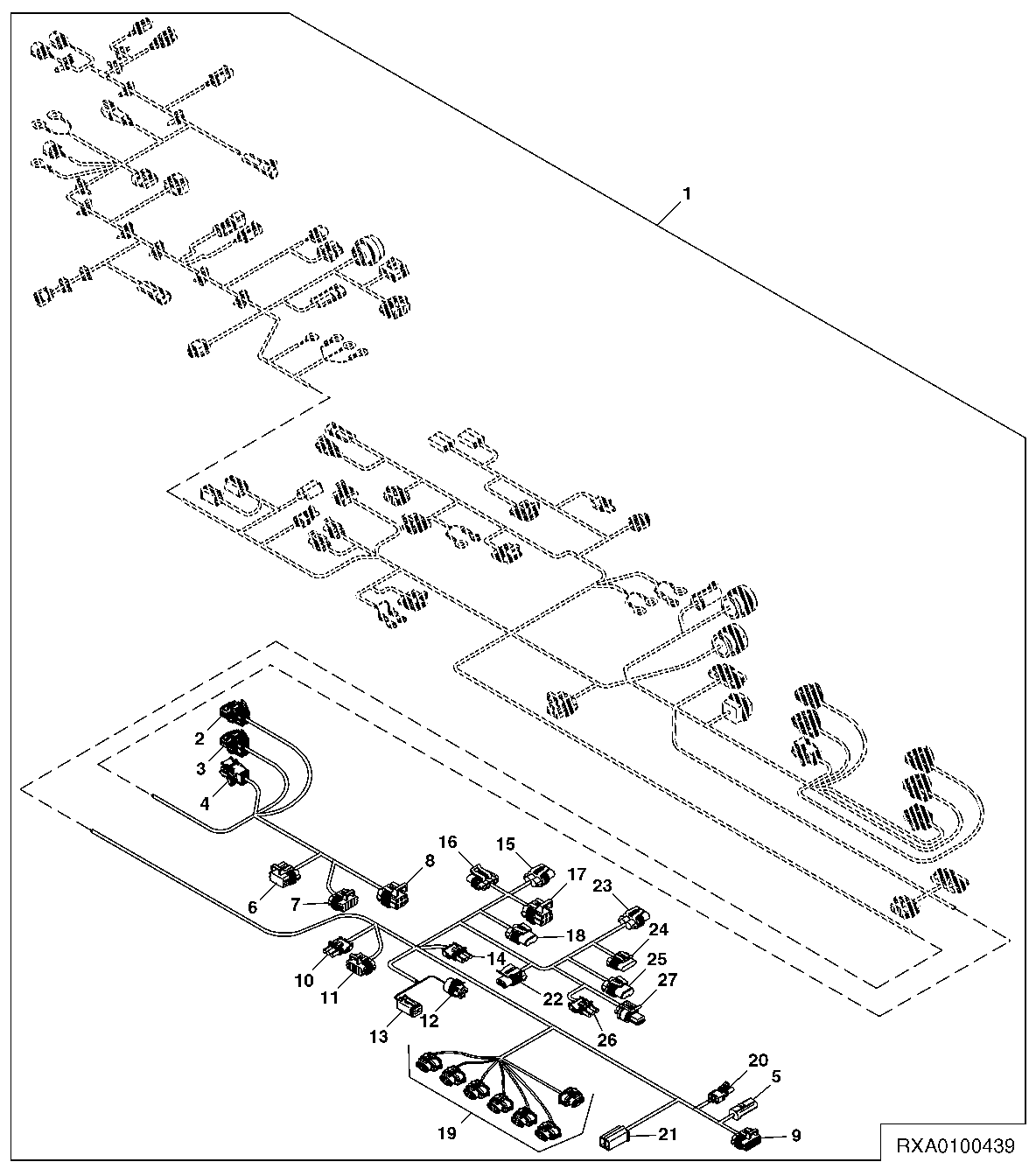

Chassis Wiring Harness Connectors (3/3) (EV) (013000 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307558	1	Chassis Wiring Harness	-
2	57M8519	1	Elec. Connector Housing	ECU(J1)
3	57M8527	1	Elec. Connector Housing	ECU(J2)
4	57M8523	1	Elec. Connector Housing	ECU(J3)
5	57M8815	1	Elec. Connector Housing	SCV 5 & 6
6	57M7261	1	Elec. Connector Housing	AUTO TRACK
6	57M7296	1	Elec. Connector Accessory	-
7	57M9377	1	Elec. Connector Housing	TRANSMISSION CONNECTION
7	57M8035	1	Nut	-
7	57M9061	1	Elec.Connect Locking Device	-
8	RE207311	1	Electronic Control Unit	-
8	57M7291	1	Electrical Connector Assy	-
8	57M7260	1	Elec. Connector Housing	CAM TERMINATION
9	-	1	Part 14	TRAILER OUTLET
10	RE12364	1	Electrical Connector Assy	DRAFT SENSOR
11	57M7262	1	Elec. Connector Housing	REAR AXLE
12	R201059	1	Housing	IMP CONNECTOR
12	R208787	1	Seal	-
13	57M8015	1	Electrical Connector Assy	GREENSTAR BREAK AWAY
14	RE12364	1	Electrical Connector Assy	ROCKSHAFT POS
15	57M8839	1	Elec. Connector Housing	LEFT REAR IN FF
15	57M8129	1	Elec. Connector Terminal	-
16	57M8416	1	Elec. Connector Housing	LEFT TAIL/BRAKE
16	57M7469	1	Electrical Connector Assy	-
17	57M7260	1	Elec. Connector Housing	EXTERNAL RAISE/LOWER SWITCH
17	57M7291	1	Electrical Connector Assy	-
18	57M8839	1	Elec. Connector Housing	LEFT REAR OUT FF
18	57M8129	1	Elec. Connector Terminal	-
19	57M9498	7	Elec. Connector Housing	HITCH & SCV'S
19	57M9500	7	Elec. Connector Accessory	-
19	57M9499	7	Elec. Connector Accessory	-
20	RE12363	1	Electrical Connector Assy	IMPLEMENT SWITCH
21	57M8813	1	Elec. Connector Housing	LINCENSE PLATE
22	57M7289	1	Elec.Connect Locking Device	-
22	57M7254	1	Elec. Connector Housing	BACKUP ALARM
23	57M8839	1	Elec. Connector Housing	RIGHT REAR IN FF
23	57M8129	1	Elec. Connector Terminal	-
24	57M8416	1	Elec. Connector Housing	RIGHT TAIL/BRAKE
24	57M7469	1	Electrical Connector Assy	-
25	57M8839	1	Elec. Connector Housing	RIGHT REAR OUT FF
25	57M8129	1	Elec. Connector Terminal	-
26	57M8625	1	Elec. Connector Housing	SECONDARY BRAKE PRESSURE
26	57M8624	1	Elec.Connect Locking Device	-
27	57M8633	1	Elec. Connector Accessory	SECONDARY BRAKE PROPORTIONAL
27	57M8924	1	Elec. Connector Housing	-

Chassis Wiring Harness Connectors (3/3) (EV) (013000 - )
