Открытый узел

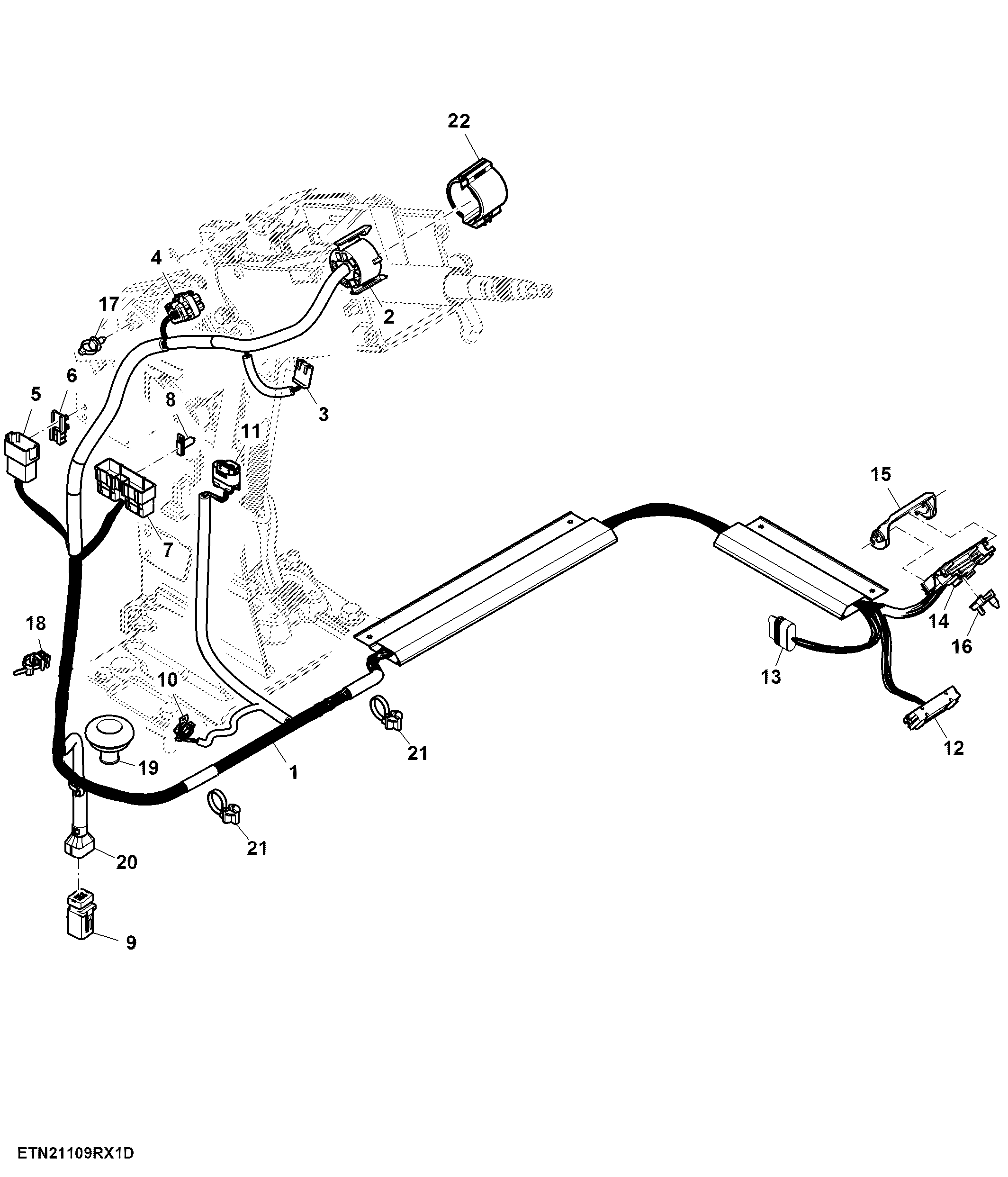

Wiring Harness, Steering Valve, W/ Back Up Pump ( - 803999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574961	1	Wiring Harness	SUB FOR RE565544
2	R277657	1	Elec. Connector Housing	Key Switch S001
2	RWA11093	6	Repair Wire Assembly	Cavity 7, 5, 4, 6, 3, 1
3	R77480	1	Electrical Connector Assy	Start Aid S301
3	RWA11076	2	Repair Wire Assembly	Cavity A, B
4	57M9786	1	Elec. Connector Housing	Steering Input Device B237
4	RWA11029	6	Repair Wire Assembly	Cavity 2, 5, 3, 6, 1, 4
5	-	1	Part 8	Left Hand Reverser A574
5	57M7682	1	Elec.Connect Locking Device	-
5	RWA11056	11	Repair Wire Assembly	Cavity 8, 1, 5, 3, 7, 9, 4, 2, 11, 12, 6
6	57M9717	1	Elec.Connect Locking Device	-
7	57M8857	1	Elec. Connector Housing	Column Inline
7	RWA11077	17	Repair Wire Assembly	Cavity B, C, F, A, K, M, T, L, R, S, N, D, J, H, G, E, P
7	57M8860	1	Elec.Connect Locking Device	-
7	57M8859	2	Elec.Connect Locking Device	-
8	57M8910	1	Clip	-
9	57M9789	1	Elec. Connector Housing	AutoTrac™
9	RWA11025	6	Repair Wire Assembly	Cavity 6, 1, 3, 4, 2, 5
10	RWA11083	2	Repair Wire Assembly	Cavity A, B
10	57M9712	1	Elec. Connector Accessory	-
10	57M7328	1	Elec. Connector Housing	Differential Lock Switch S503
11	57M8919	1	Elec. Connector Housing	Clutch Pedal A578
11	RWA10703	6	Repair Wire Assembly	Cavity C, A, E, B, F, D
12	57M11346	1	Elec. Connector Housing	Cab Inline 2
12	RWA11096	8	Repair Wire Assembly	Cavity A2, A3, A5, A6, A10, A11, A4, A14
13	57M8851	1	Elec. Connector Housing	Foot Throttle A577
13	RWA11084	6	Repair Wire Assembly	Cavity C, A, E, B, F, D
14	RWA11100	5	Repair Wire Assembly	Cavity A7, A8, B7, B8, B9
14	RWA11100	1	Repair Wire Assembly	Cavity A9
14	RWA11095	23	Repair Wire Assembly	Cavity A1, A10, A11, A12, A13, A14, A15, A3, A4, A5, A6, B1, B11, B12, B13, B14, B15, B2, B3, B4, B5, B6
14	57M11348	1	Elec. Connector Housing	Cab Inline 1
15	-	1	Part 32	-
16	57M11364	1	Elec. Connector Accessory	-
17	RE258807	5	Tie Band	-
18	57M9229	1	Clip	-
19	R343435	1	Grommet	-
20	57M9841	1	Elec. Connector Accessory	-
21	57M11797	2	Elec. Connector Accessory	-
22	RE576503	1	Snap Ring	-

Wiring Harness, Steering Valve, W/ Back Up Pump ( - 803999)
