Wiring Harness, Front Control Support, W/ ACS™ ( - 804100)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

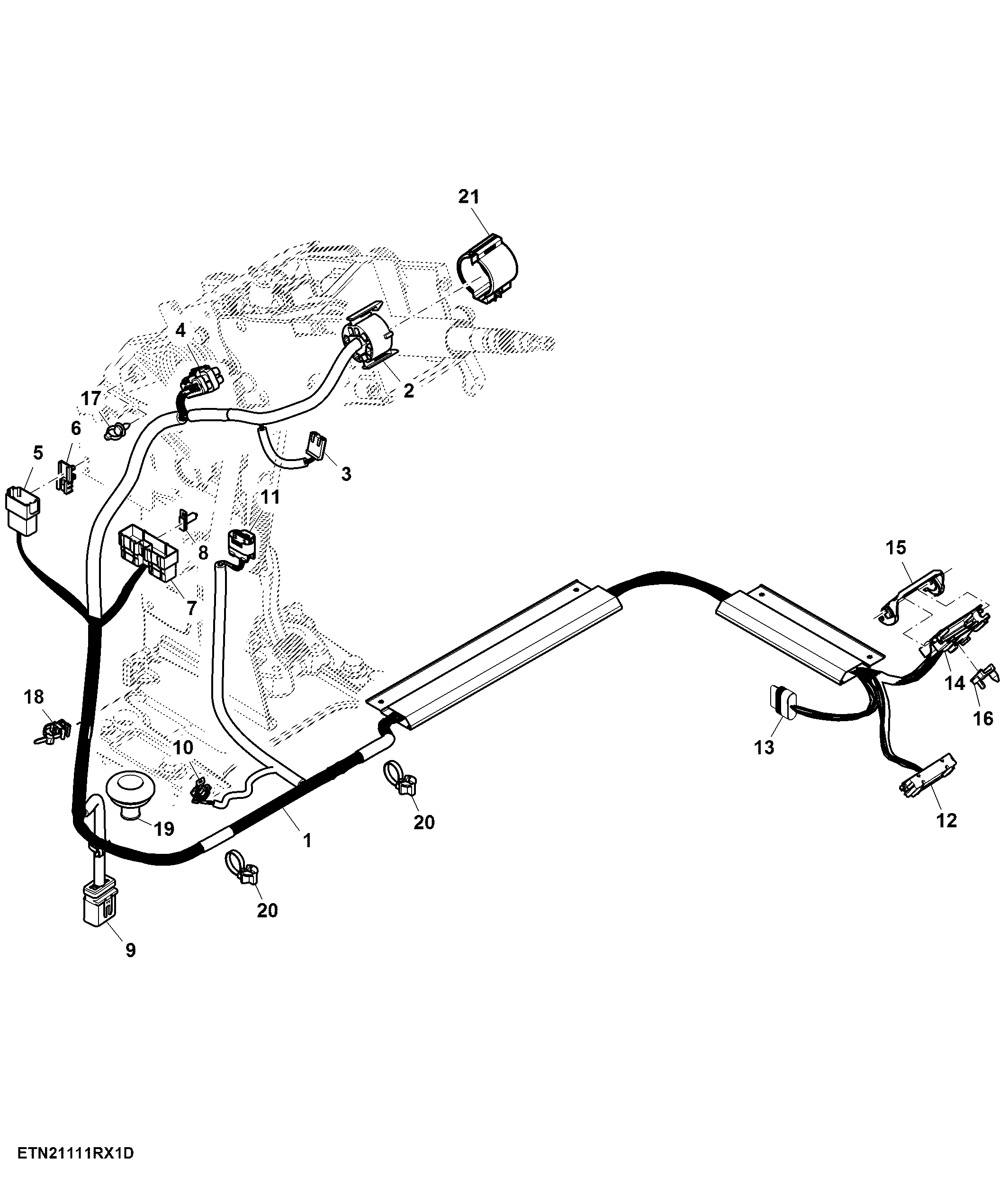

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574962	1	Wiring Harness	SUB FOR RE565545
2	R277657	1	Elec. Connector Housing	Key Switch S001
2	RWA11093	6	Repair Wire Assembly	Cavity 7, 5, 4, 6, 3, 1
3	R77480	1	Electrical Connector Assy	Start Aid S301
3	RWA11076	2	Repair Wire Assembly	Cavity A, B
4	57M9800	1	Elec. Connector Housing	Hand Wheel Position B258
4	RWA11029	10	Repair Wire Assembly	Cavity 1, 12, 9, 2, 6, 3, 7, 8, 4, 11
5	-	1	Part 8	Left Hand Reverser A574
5	57M7682	1	Elec.Connect Locking Device	-
5	RWA11056	11	Repair Wire Assembly	Cavity 8, 1, 5, 3, 7, 9, 4, 2, 11, 12, 6
6	57M9717	1	Elec.Connect Locking Device	-
7	57M8857	1	Elec. Connector Housing	07; Column Inline
7	RWA11077	17	Repair Wire Assembly	Cavity B, C, F, A, K, M, T, L, R, S, N, D, J, H, G, E, P
7	57M8860	1	Elec.Connect Locking Device	-
7	57M8859	2	Elec.Connect Locking Device	-
8	57M8910	1	Clip	-
9	57M9804	1	Elec. Connector Housing	06A; Chassis Inline
9	RWA11025	10	Repair Wire Assembly	Cavity 1, 7, 8, 3, 9, 5, 11, 6, 12, 2, 10, 4
10	RWA11083	2	Repair Wire Assembly	Cavity A, B
10	57M9712	1	Elec. Connector Accessory	-
10	57M7328	1	Elec. Connector Housing	Differential Lock Switch S503
11	57M8919	1	Elec. Connector Housing	Clutch Pedal A578
11	RWA10703	6	Repair Wire Assembly	Cavity C, A, E, B, F, D
12	57M11346	1	Elec. Connector Housing	02; Cab Inline 2
12	RWA11096	8	Repair Wire Assembly	Cavity A2, A3, A5, A6, A10, A11, A4, A14
13	57M8851	1	Elec. Connector Housing	Foot Throttle A577
13	RWA11084	6	Repair Wire Assembly	Cavity C, A, E, B, F, D
14	RWA11100	5	Repair Wire Assembly	Cavity A7, A8, B7, B8, B9
14	RWA11100	1	Repair Wire Assembly	Cavity A9
14	RWA11095	23	Repair Wire Assembly	Cavity A1, A10, A11, A12, A13, A14, A15, A3, A4, A5, A6, B1, B11, B12, B13, B14, B15, B2, B3, B4, B5, B6
14	57M11348	1	Elec. Connector Housing	01; Cab Inline 1
15	-	1	Part 32	-
16	57M11364	1	Elec. Connector Accessory	-
17	RE258807	5	Tie Band	-
18	57M9229	1	Clip	-
19	R343435	1	Grommet	-
20	57M11797	2	Elec. Connector Accessory	-
21	RE576503	1	Snap Ring	-

Wiring Harness, Front Control Support, W/ ACS™ ( - 804100)
