Открытый узел

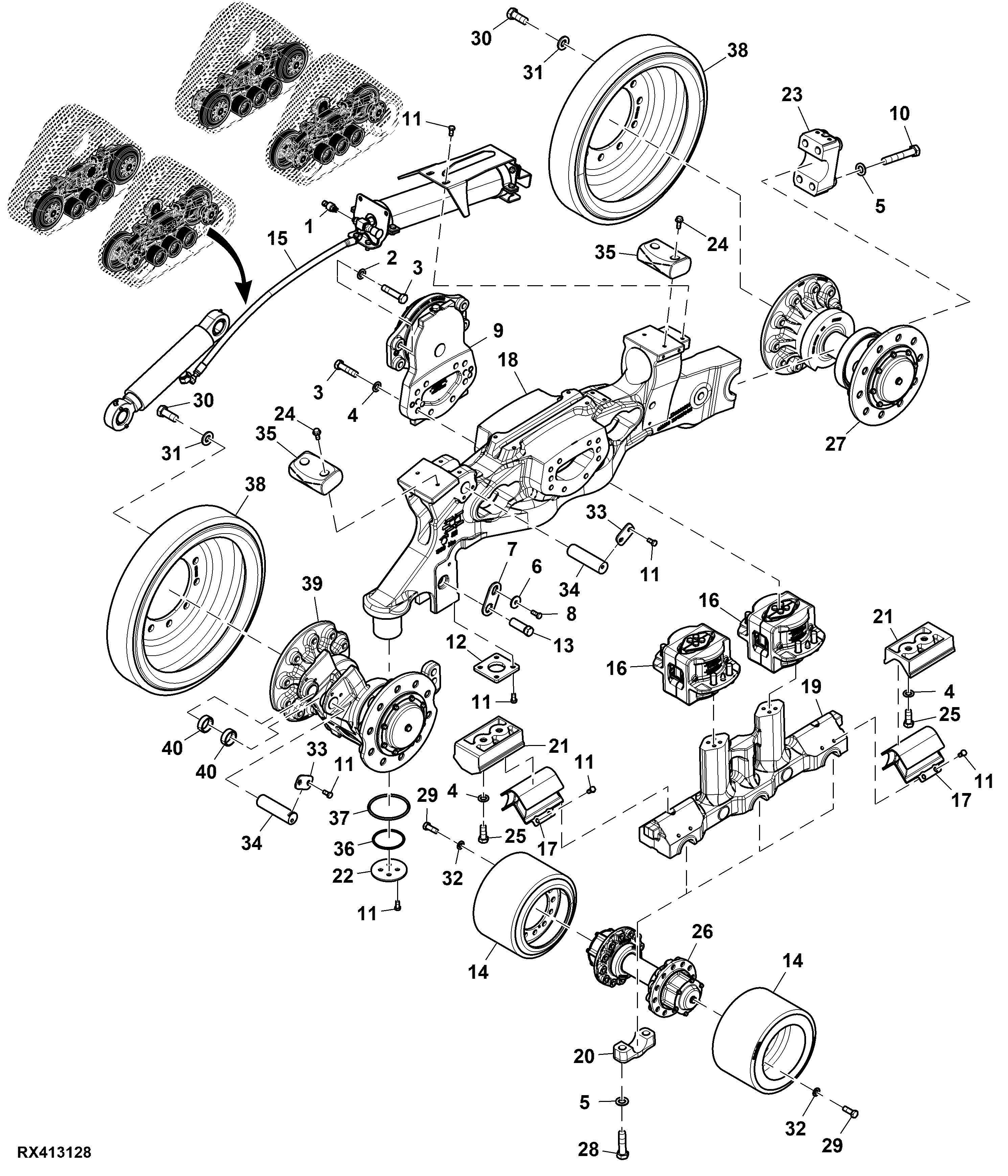

Track Frame and Support Assembly, 18" Width, Narrow Undercarriage (Front, LH Illustrated

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE204264	1	Trans Oil Pressure Sensor	B267, Front Right Track Tension Sensor (4-Track Only)
1	RE204264	1	Trans Oil Pressure Sensor	B266, Front Left Track Tension Sensor (4-Track Only)
1	RE204264	1	Trans Oil Pressure Sensor	B269, Rear Right Track Tension Sensor (4-Track Only)
1	RE204264	1	Trans Oil Pressure Sensor	B268, Rear Left Track Tension Sensor (4-Track Only)
2	24M7242	16	Washer	21.400 X 42 X 5 mm
3	19M9134	48	Cap Screw	M20 X 80
4	24M7344	48	Washer	22 X 37 X 3 mm
5	L113738	64	Washer	-
6	R273543	8	Spacer	-
7	AT364555	8	Plate	-
8	19M8011	8	Cap Screw	M12 X 30
9	-	4	Part 12	Pivot Mounting Components On Separate page
10	19M7781	16	Cap Screw	M24 X 150
11	19M7872	88	Cap Screw	M12 X 25
12	R553438	4	Plate	-
13	R556763	8	Set Screw	-
14	RE575988	24	Tire And Wheel Assembly	-
15	-	2	Part 18	LH Components On Separate page
15	-	2	Part 19	RH Components On Separate page
16	RE584724	8	Beam	-
17	RE583717	8	Mounting Parts	-
18	R559554	4	Center Frame	-
19	R559555	4	Beam	-
20	R559556	24	Half Clamp	-
21	R559558	8	Block Clamp	-
22	R553437	4	End Plate	-
23	R553428	4	Center Frame	-
24	19M7789	16	Screw	M12 X 30
25	19M7597	16	Cap Screw	M20 X 50
26	RE583715	12	Spindle	ORDER RE590084
26	RE590084	12	Spindle	-
27	-	4	Part 32	Track Idler Assembly Components On Separate page
28	19M8288	48	Cap Screw	M24 X 90
29	19M7489	288	Cap Screw	M16 X 45
30	19M7888	80	Cap Screw	M24 X 60
31	24M7243	80	Washer	25.400 X 50 X 6 mm
32	24M7338	288	Washer	17 X 30 X 3 mm
33	R136346	8	Plate	-
34	R254393	8	Pin	-
35	R543821	8	Stop	-
36	R553421	4	O-Ring	-
37	R553807	4	O-Ring	-
38	RE575989	8	Wheel	-
39	-	4	Part 44	Tensionlink Assembly Components On Separate page
40	R254407	8	Spacer	-

Track Frame and Support Assembly, 18" Width, Narrow Undercarriage (Front, LH Illustrated
