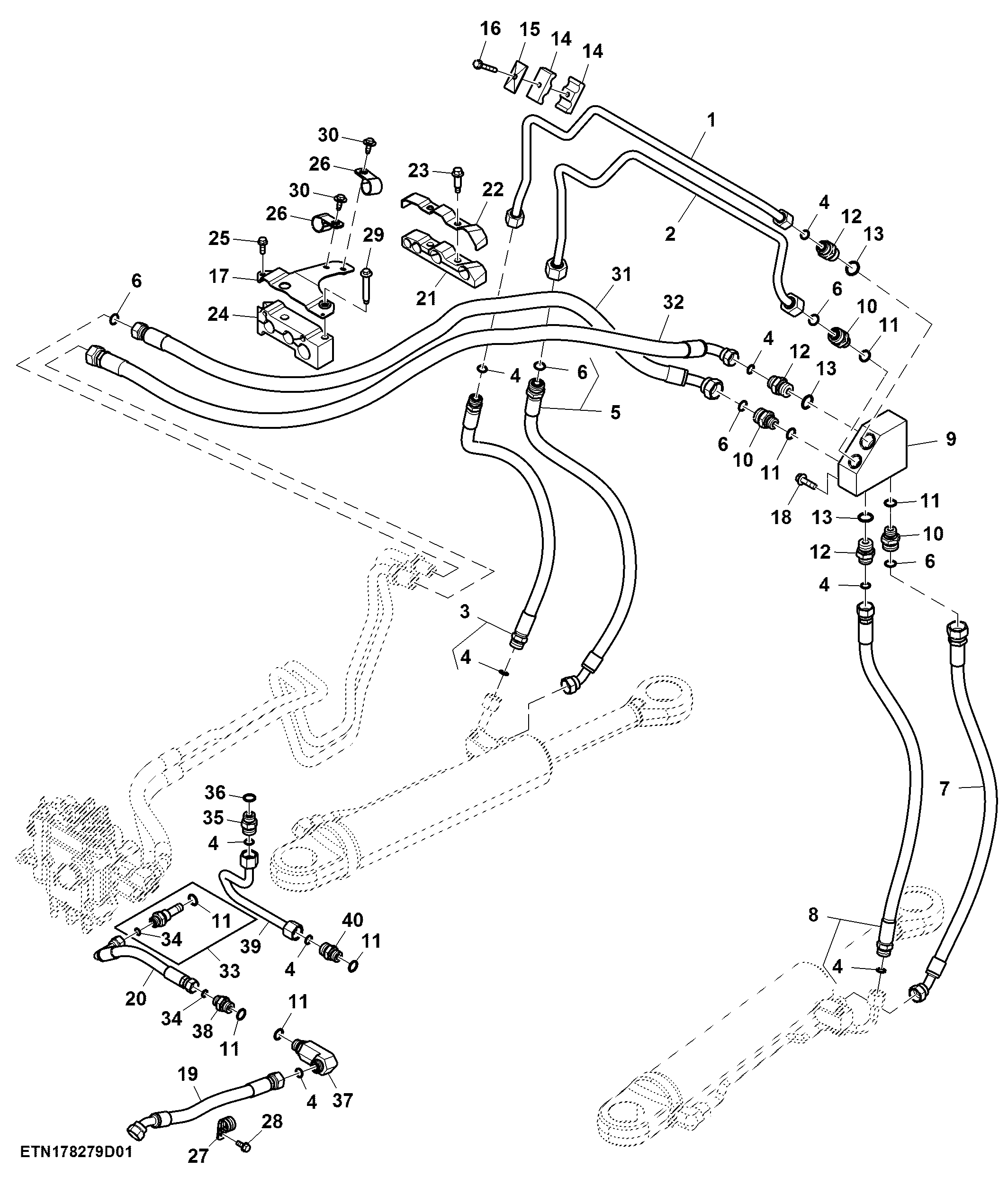

Steering System, ACS™ (1/2) (804101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE583818	1	Oil Line	-
2	RE583819	1	Oil Line	-
3	RE583824	1	Hydraulic Hose	INCLUDES T77932
4	T77932	6	O-Ring	-
5	RE583825	1	Hydraulic Hose	INCLUDES T77858
6	T77858	5	O-Ring	-
7	RE583829	1	Hydraulic Hose	-
8	RE583830	1	Hydraulic Hose	INCLUDES T77932
9	R560304	1	Manifold	-
10	38H5121	3	Adapter Fitting	INCLUDES 51M7047
11	51M7045	6	O-Ring	19.300 X 2.200 mm
12	38H5152	3	Adapter Fitting	INCLUDES 51M7047
13	51M7047	3	O-Ring	23.600 X 2.900 mm
14	R115772	4	Clamp	-
15	H112567	2	Plate	-
16	19M7801	2	Screw	M8 X 60
17	RE587581	1	Hose Clamp	-
18	19M7835	2	Screw	M10 X 35
19	RE588013	1	Hydraulic Hose	-
20	RE588012	1	Hydraulic Hose	-
21	R563500	1	Block Clamp	-
22	R563499	1	Hose Clamp	-
23	M145431	2	Screw	-
24	R563161	1	Block Clamp	-
25	19M7867	1	Screw	M8 X 25
26	R46667	2	Clamp	-
27	R114103	1	Clamp	-
28	19M7866	2	Screw	M8 X 20
29	R250832	1	Screw	-
30	R323614	2	Screw With Washer	-
31	RE587218	1	Hydraulic Hose	-
32	RE587219	1	Hydraulic Hose	-
33	RE341931	1	Adapter Fitting	INCLUDES 51M7045, T77857
34	T77857	1	O-Ring	-
35	38H1162	1	Adapter Fitting	-
36	R26906	1	O-Ring	-
37	38H5519	1	Adapter Fitting	-
38	38H5076	1	Adapter Fitting	-
39	RE588168	1	Oil Line	-
40	38H5004	1	Adapter Fitting	-

Steering System, ACS™ (1/2) (804101 - )

Нет текстового описания
