Selective Control Valve, W/O Hitch, 6 Rear SCV, High Flow, Double Reduction Axle (For Scraper) (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574695	1	Cover	Number I, Green, SCV Coupler
2	RE575267	1	Cover	Number II, Blue, SCV Coupler
3	RE575268	1	Cover	Number III, Brown, SCV Coupler
4	RE575269	1	Cover	Number IV, Black, SCV Coupler
5	RE575270	1	Cover	Number V, Violet, SCV Coupler
6	RE575271	1	Cover	Number VI, Gray, SCV Coupler
7	R310108	1	Plate	-
8	14M7299	3	Flange Nut	M12
9	R310205	1	Plate	ORDER R571280
9	R571280	1	Plate	-
10	38H5192	1	Fitting	-
11	19M7790	3	Screw	M12 X 35
12	R538336	3	Tie Rod Assembly	-
13	RE342468	6	Hydraulic Hose	-
14	RE342469	6	Hydraulic Hose	-
15	38H5004	11	Adapter Fitting	INCLUDES 51M7045
16	T77932	12	O-Ring	-
17	51M7045	12	O-Ring	19.300 X 2.200 mm
18	R267668	2	Hose Fitting	-
19	RE593895	6	Breakaway Coupler	-
19	RE573038	6	Breakaway Coupler	ORDER RE593895
20	RE581131	12	Breakaway Coupler	SUB FOR RE298945; USE WITH RE573038
20	RE593269	12	Breakaway Coupler	USE WITH RE593895
21	RE582546	12	Seal Kit	SUB FOR RE298953
22	R151702	12	O-Ring	-
23	T78784	12	O-Ring	-
24	RE327412	12	Seal Kit	-
25	R551313	6	Lever	INCLUDES R27564
26	R207188	12	Ring	-
27	R28776	12	O-Ring	-
28	R298956	12	Snap Ring	-
29	38H5005	12	Adapter Fitting	INCLUDES 51M7047
30	T77858	12	O-Ring	-
31	51M7047	12	O-Ring	23.600 X 2.900 mm
32	R551312	6	Lever	INCLUDES R27564
33	R27564	12	O-Ring	-
34	R235245	12	O-Ring	-

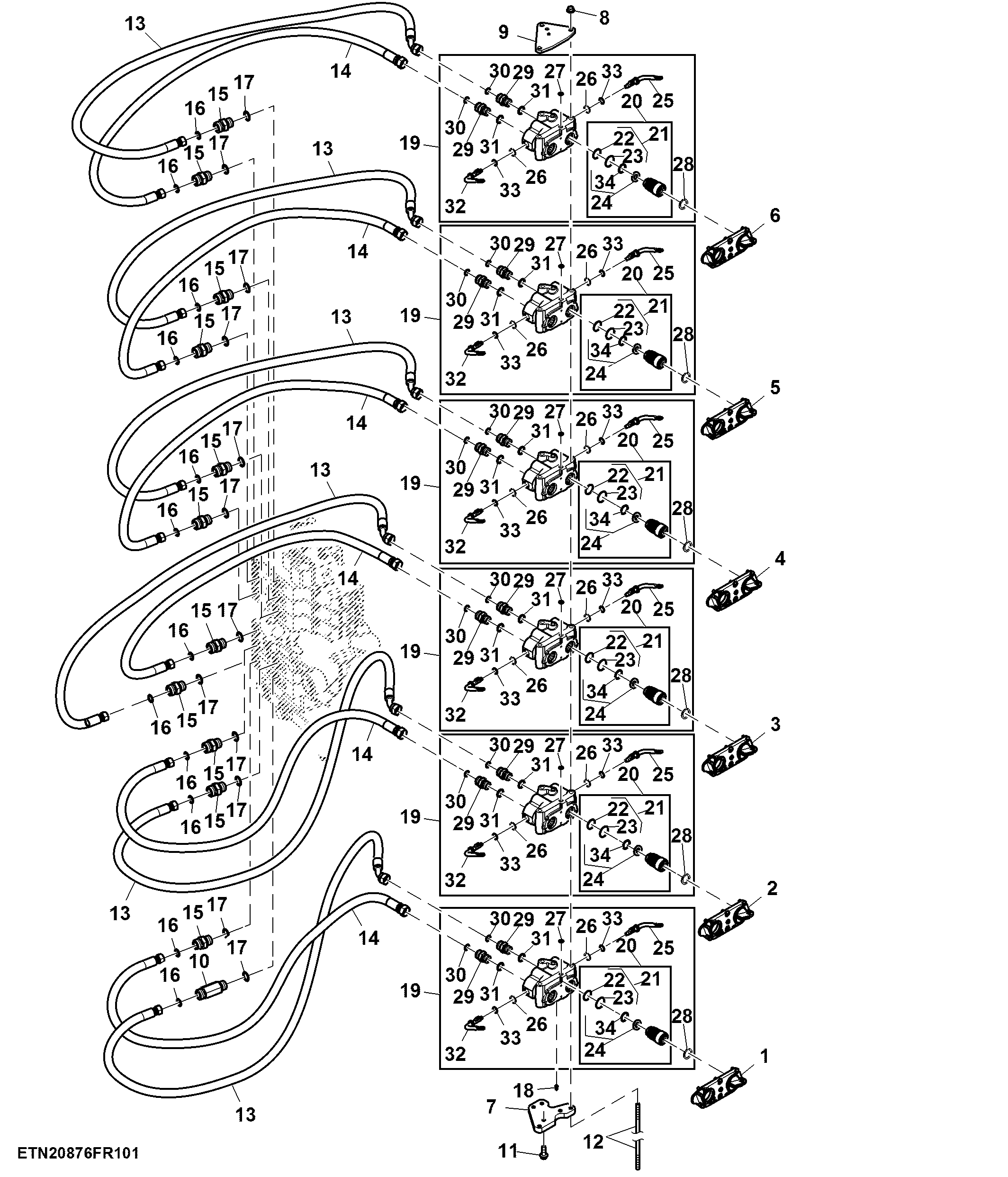

Selective Control Valve, W/O Hitch, 6 Rear SCV, High Flow, Double Reduction Axle (For Scraper) (1/2)
