Selective Control Valve, W/O Hitch, 4 Rear SCV, High Flow (For Scraper) (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574695	1	Cover	Number I, Green, SCV Coupler
2	RE575267	1	Cover	Number II, Blue, SCV Coupler
3	RE575268	1	Cover	Number III, Brown, SCV Coupler
4	RE575269	1	Cover	Number IV, Black, SCV Coupler
5	R310108	1	Plate	-
6	R320516	3	Tie Rod Assembly	-
7	14M7299	3	Flange Nut	M12
8	R310205	1	Plate	ORDER R571280
8	R571280	1	Plate	-
9	19M7790	3	Screw	M12 X 35
10	RE342469	4	Hydraulic Hose	-
11	RE342468	4	Hydraulic Hose	-
12	R267668	2	Hose Fitting	-
13	38H5004	7	Adapter Fitting	-
14	T77932	8	O-Ring	-
15	51M7045	8	O-Ring	19.300 X 2.200 mm
16	38H5192	1	Fitting	-
17	RE573038	4	Breakaway Coupler	ORDER RE593895
17	RE593895	4	Breakaway Coupler	-
18	RE581131	8	Breakaway Coupler	SUB FOR RE298945; USE WITH RE573038
18	RE593269	8	Breakaway Coupler	USE WITH RE593895
19	RE582546	8	Seal Kit	SUB FOR RE298953
20	R151702	8	O-Ring	-
21	T78784	8	O-Ring	-
22	RE327412	8	Seal Kit	-
23	R551313	4	Lever	INCLUDES R27564
24	R207188	8	Ring	-
25	R28776	8	O-Ring	-
26	R298956	8	Snap Ring	-
27	38H5005	8	Adapter Fitting	-
28	T77858	8	O-Ring	-
29	51M7047	8	O-Ring	23.600 X 2.900 mm
30	R551312	4	Lever	INCLUDES R27564
31	R27564	8	O-Ring	-
32	R235245	8	O-Ring	-

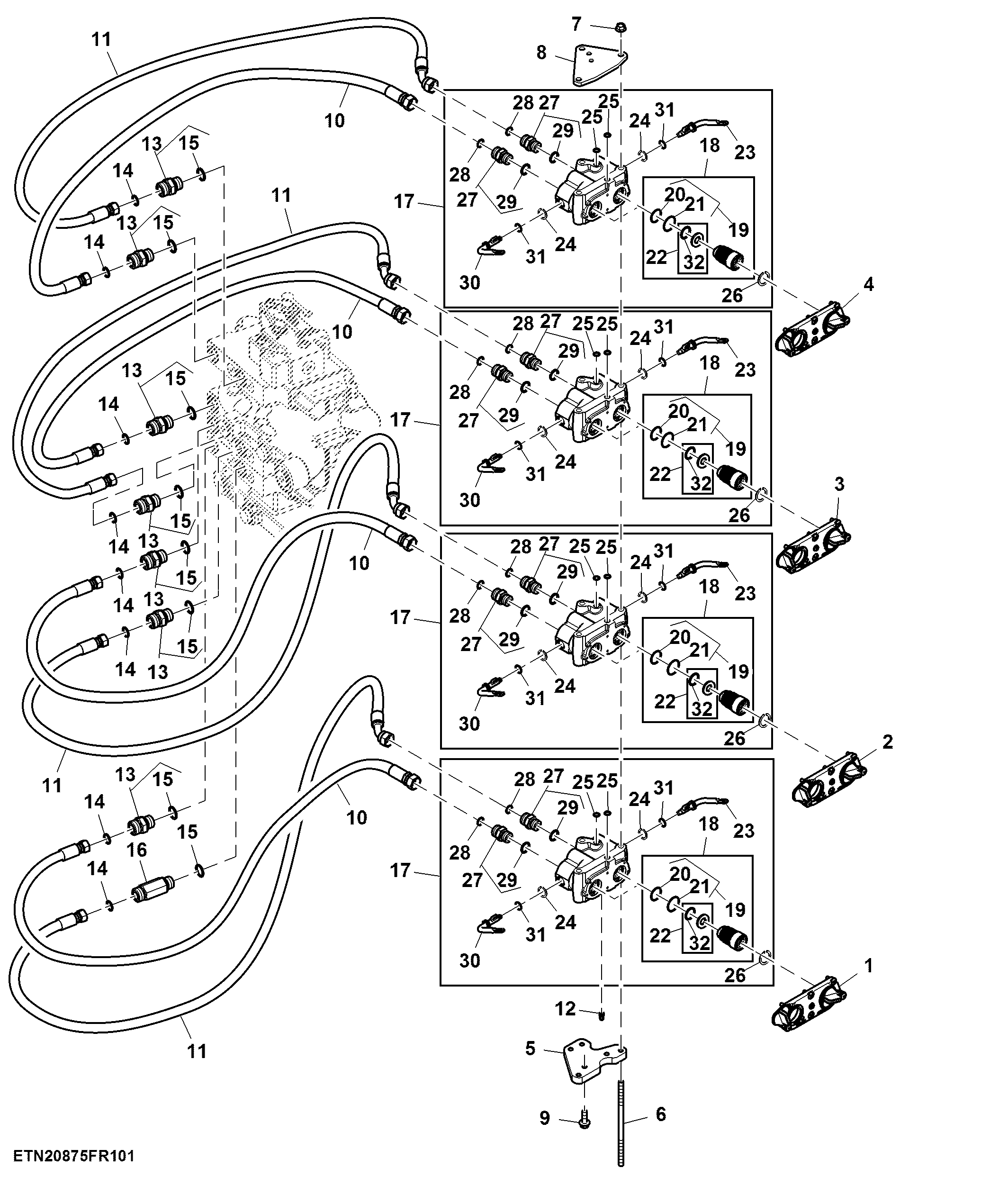

Selective Control Valve, W/O Hitch, 4 Rear SCV, High Flow (For Scraper) (1/2)
