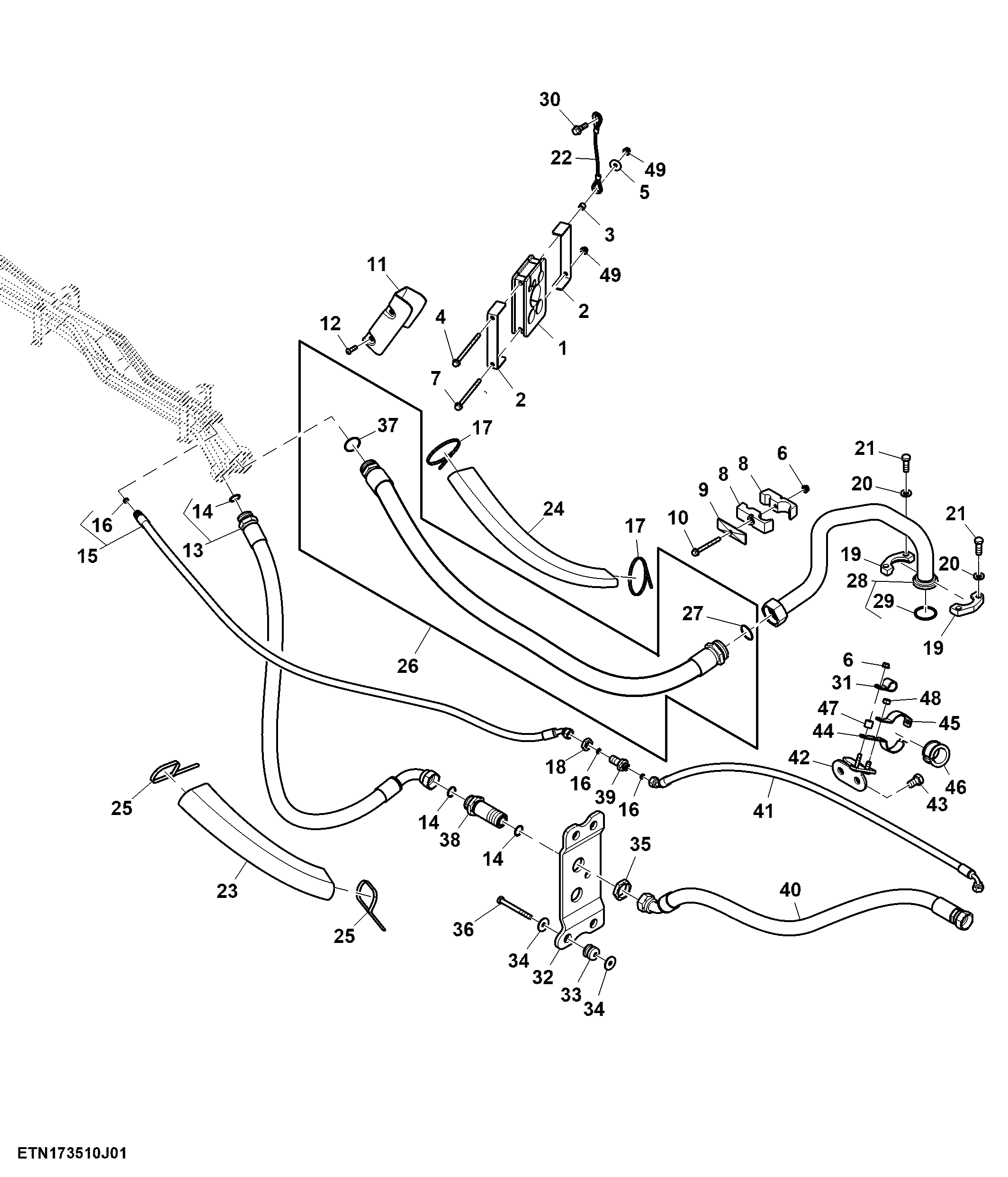

SCV Lines, Standard Flow, Hitch W/ 1/2" Rear Quick Coupler, PST (2/2) (807297 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R555596	1	Clamp	-
2	R544978	2	Cover	-
3	H159104	1	Washer	9.250 X 13.720 X 9.520 mm (0.364" X 0.540" X 3/8")
4	19M9915	1	Screw	M8 X 130
5	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
6	14M7298	2	Flange Nut	M8
7	19M8006	1	Screw	M8 X 120
8	R342142	2	Block Clamp	-
9	H114901	1	Plate	-
10	19M8039	1	Screw	M8 X 80
11	R543914	1	Guide	-
12	21M7580	2	Socket Head Screw	M8 X 25
13	RE587405	1	Hydraulic Hose	SCV Supply
14	T76938	3	O-Ring	-
15	RE597299	1	Hydraulic Hose	Load Sense Through Gudgeon SUB FOR APPL RE567489
15	RE567489	1	Hydraulic Hose	Load Sense
16	T77613	3	O-Ring	-
17	R105388	2	Tie Band	-
18	38H5091	1	Nut	11/16"
19	X51H-24	2	Flange Fitting	-
20	24M7240	4	Washer	13 X 25 X 3 mm
21	19M7403	4	Cap Screw	M12 X 35
22	RE570861	1	Cable	-
23	R551064	1	Hose Guard	-
24	R551065	1	Hose Guard	-
25	R76477	2	Tie Band	-
26	RE568221	1	Hydraulic Hose	SCV Return INCLUDES T78784
27	T78784	1	O-Ring	-
28	RE567130	1	Oil Line	SCV Return
29	T34248	1	O-Ring	-
30	R519426	1	Screw	-
31	R73291	1	Clamp	-
32	R565539	1	Bracket	-
33	R565664	4	Isolator	-
34	24M7101	8	Washer	11 X 34 X 3 mm
35	38H5095	1	Nut	1-7/16"
36	19M8241	4	Cap Screw	M10 X 100
37	T78612	1	O-Ring	-
38	R567883	1	Fitting	-
39	38H5100	1	Union Fitting	-
40	RE594115	1	Hydraulic Hose	SCV Supply
41	RE593319	1	Oil Line	Load Sense
42	RE593625	1	Bracket	-
43	19M7394	2	Cap Screw	M16 X 25
44	R568697	1	Half Clamp	-
45	R568698	1	Half Clamp	-
46	R568700	1	Grommet	-
47	R244801	1	Spacer	-
48	14M7274	1	Nut	M10
49	14M7573	2	Flange Nut	M8

SCV Lines, Standard Flow, Hitch W/ 1/2" Rear Quick Coupler, PST (2/2) (807297 - )
