SCV Lines, 3/4" High Flow 4/6 SCV, Short Drawbar Support, 0.75" Rear Coupler, PST (For Scraper) (2/2) ( - 805770)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE576775	1	Hydraulic Hose	Piston Pump, SCV Pressure INCLUDES T76938 AND T78313
2	T78313	1	O-Ring	-
3	T76938	3	O-Ring	-
4	RE587418	1	Oil Line	Piston Pump, Load Sense SUB FOR RE567139
5	T77613	4	O-Ring	-
6	RE577785	1	Oil Line	SCV Pressure
7	H61354	2	Flange Fitting	-
8	19M7662	4	Cap Screw	M10 X 30
9	24M7106	4	Washer	10 X 18 X 2.500 mm
10	38H5436	1	Adapter Fitting	-
11	51M7040	1	O-Ring	9.300 X 2.200 mm
12	H112567	4	Plate	-
13	R129325	6	Clamp	-
14	19M7801	1	Screw	M8 X 60
15	19M7803	2	Screw	M8 X 70
16	RE567130	1	Oil Line	SCV Return, At Filter
17	T34248	1	O-Ring	-
18	X51H-24	2	Flange Fitting	-
19	19M7403	4	Cap Screw	M12 X 35
20	24M7240	4	Washer	13 X 25 X 3 mm
21	R342142	2	Block Clamp	-
22	H114901	1	Plate	-
23	19M8039	1	Screw	M8 X 80
24	14M7298	3	Flange Nut	M8
25	38H5095	3	Nut	1-7/16"
26	38H5091	1	Nut	11/16"
27	RE575169	1	Hydraulic Hose	Load Sense Through Gudgeon
28	RE574609	1	Hydraulic Hose	SCV Return INCLUDES (2) T78784
29	T78784	2	O-Ring	-
30	RE587428	1	Hydraulic Hose	SCV Pressure SUB FOR RE574610
31	RE587405	1	Hydraulic Hose	SCV Supply SUB FOR RE566028
32	R551064	2	Hose Guard	-
33	R76477	4	Tie Band	-
34	R543914	1	Guide	-
35	21M7580	2	Socket Head Screw	M8 X 25
36	RE570861	1	Cable	-
37	R519426	1	Screw	-
38	R552360	1	Clamp	-
39	R544978	2	Cover	-
40	19M8006	1	Screw	M8 X 120
41	19M9915	1	Screw	M8 X 130
42	28H1513	1	Washer	0.364" X 0.540" X 3/8"
43	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"

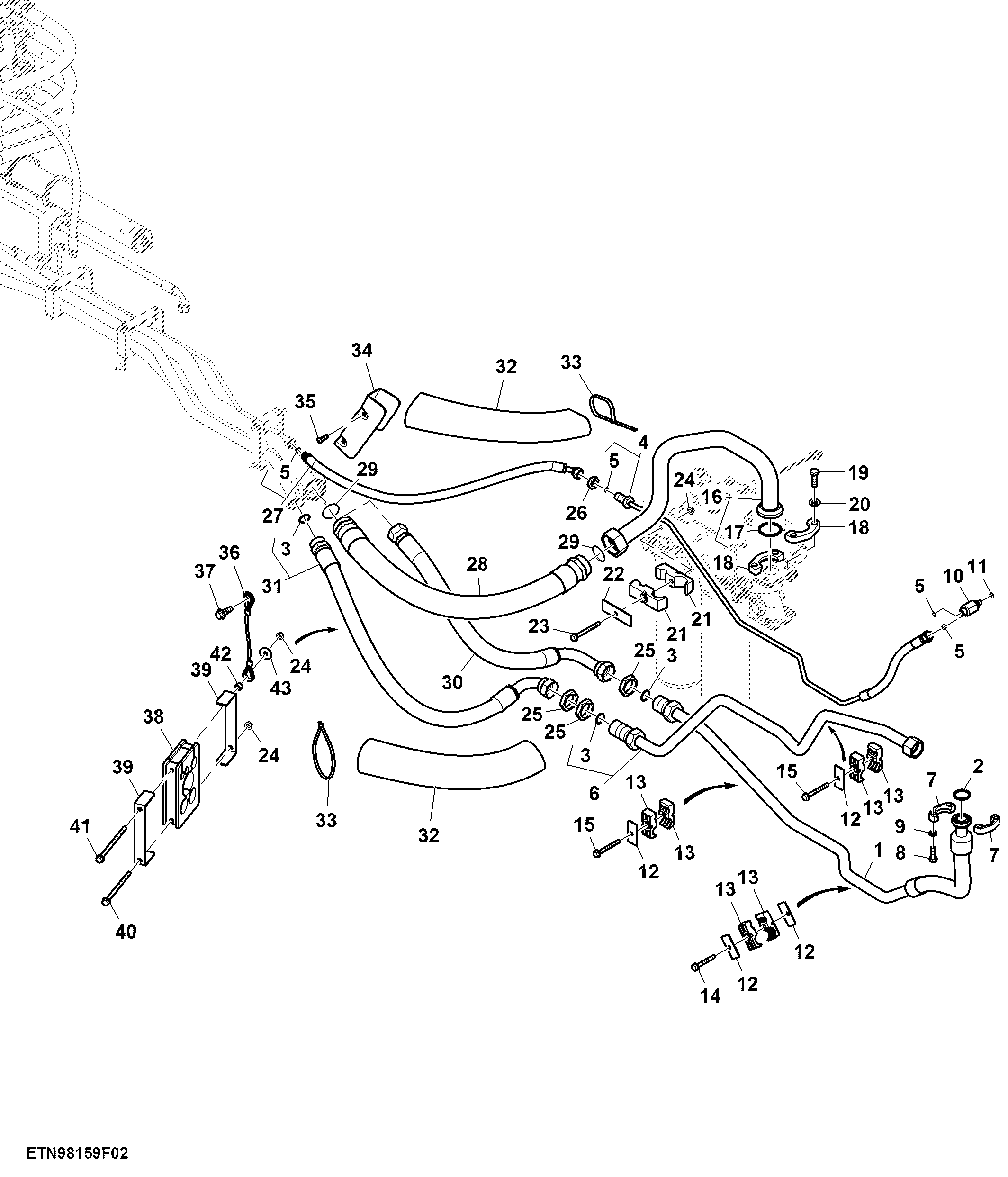

SCV Lines, 3/4" High Flow 4/6 SCV, Short Drawbar Support, 0.75" Rear Coupler, PST (For Scraper) (2/2) ( - 805770)
