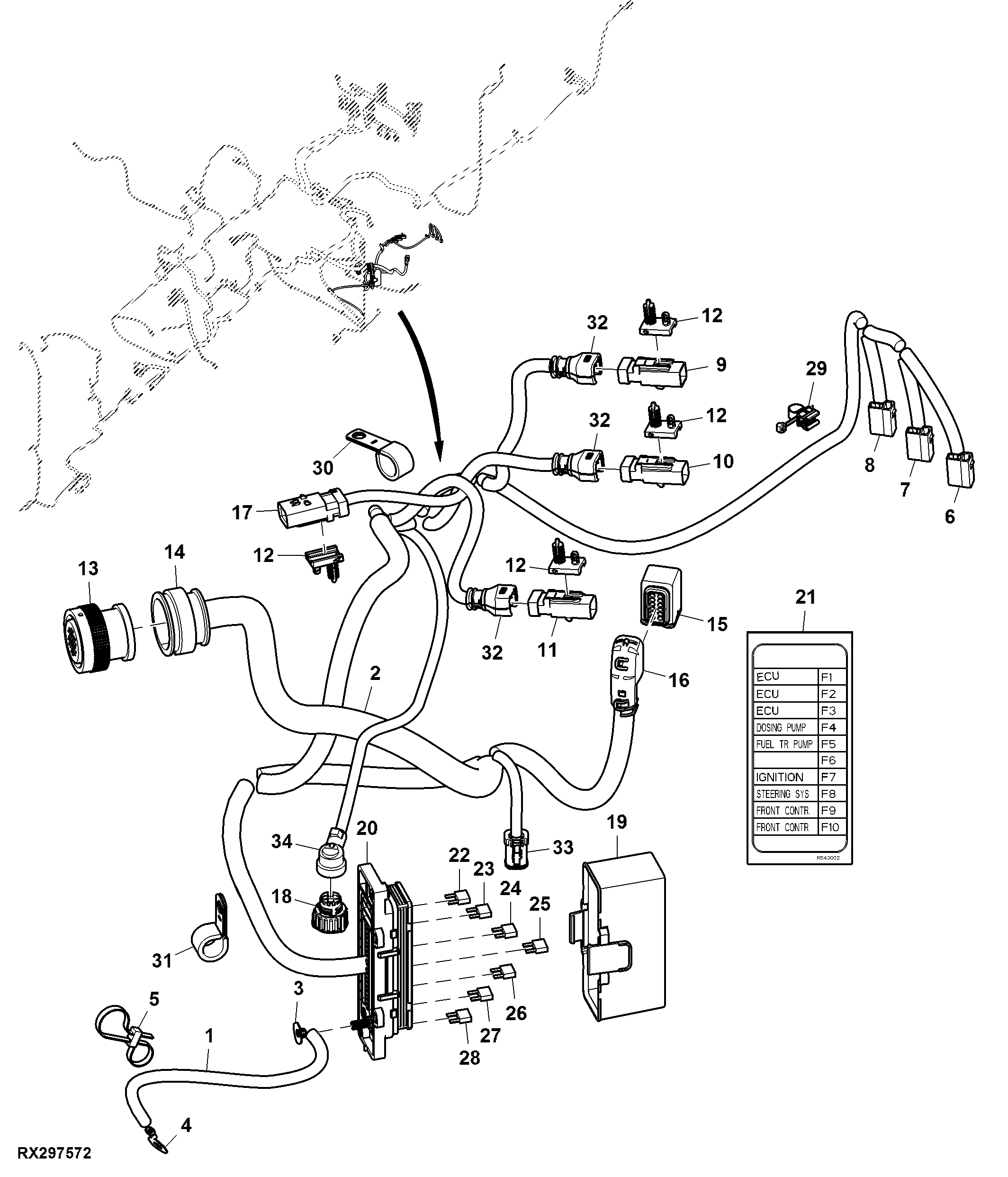

Load Center Wiring Harness, W/ Backup Pump, 13.5 L FT4 Engine (804101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE575979	1	Wiring Harness	-
2	RE580191	1	Chassis Wiring Harness	-
3	57M11530	1	Elec. Connector Terminal	FEXX-L1
4	57M8866	1	Elec. Connector Terminal	KSW2
5	57M10421	1	Elec. Connector Accessory	-
6	57M7144	1	Elec. Connector Housing	M01
6	RWA11076	1	Repair Wire Assembly	Cavity A, B
7	57M7144	1	Elec. Connector Housing	M02
7	RWA11076	1	Repair Wire Assembly	Cavity A, B
8	57M7144	1	Elec. Connector Housing	M03
8	RWA11076	1	Repair Wire Assembly	Cavity A, B
9	57M9730	1	Elec. Connector Housing	E5602
9	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
10	57M9732	1	Elec. Connector Housing	E5603
10	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
11	57M9731	1	Elec. Connector Housing	E5601
11	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
12	57M9940	4	Elec. Connector Accessory	-
13	57M9514	1	Elec. Connector Housing	X340B
13	RWA11058	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31
14	57M9383	1	Elec. Connector Accessory	-
15	57M10958	1	Elec. Connector Housing	B5501
15	RWA10718	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 8, 9, 10, 11, 12
16	57M11439	1	Elec. Connector Accessory	-
17	RWA11022	1	Repair Wire Assembly	Cavity 1
17	57M9784	1	Elec. Connector Housing	X339B
18	57M13137	1	Elec. Connector Housing	Y5019
18	RWA11105	1	Repair Wire Assembly	Cavity 1, 4
19	RE554428	1	Cover	-
20	RE554429	1	Fuse Holder	FEXX
20	RWA11045	1	Repair Wire Assembly	Cavity B10, B3, B4, B5, B6, B7, B9
21	R543092	1	Label	-
22	57M7691	1	Fuse	20 A, F1; ECU
23	57M7691	1	Fuse	20 A, F2; ECU
24	57M7691	1	Fuse	20 A, F3; ECU/DEF Heaters
25	57M7690	1	Fuse	15 A, F4; Dosing Pump/After-Treatment
26	57M7690	1	Fuse	15 A, F5; Fuel Transfer Pump/DEF
27	57M7689	1	Fuse	10 A, F7; Keyswitch
28	57M7690	1	Fuse	15 A, F8; Steering Controller
29	AH225363	1	Clip	-
30	57M12139	1	Clamp	-
31	57M12137	2	Clamp	SUB FOR 57M10837
32	57M9837	3	Elec. Connector Accessory	-
33	57M10530	1	Elec. Connector Housing	B5506
33	RWA11116	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
33	57M8016	1	Elec.Connect Locking Device	-
34	57M10711	1	Elec. Connector Accessory	-

Load Center Wiring Harness, W/ Backup Pump, 13.5 L FT4 Engine (804101 - )
