Открытый узел

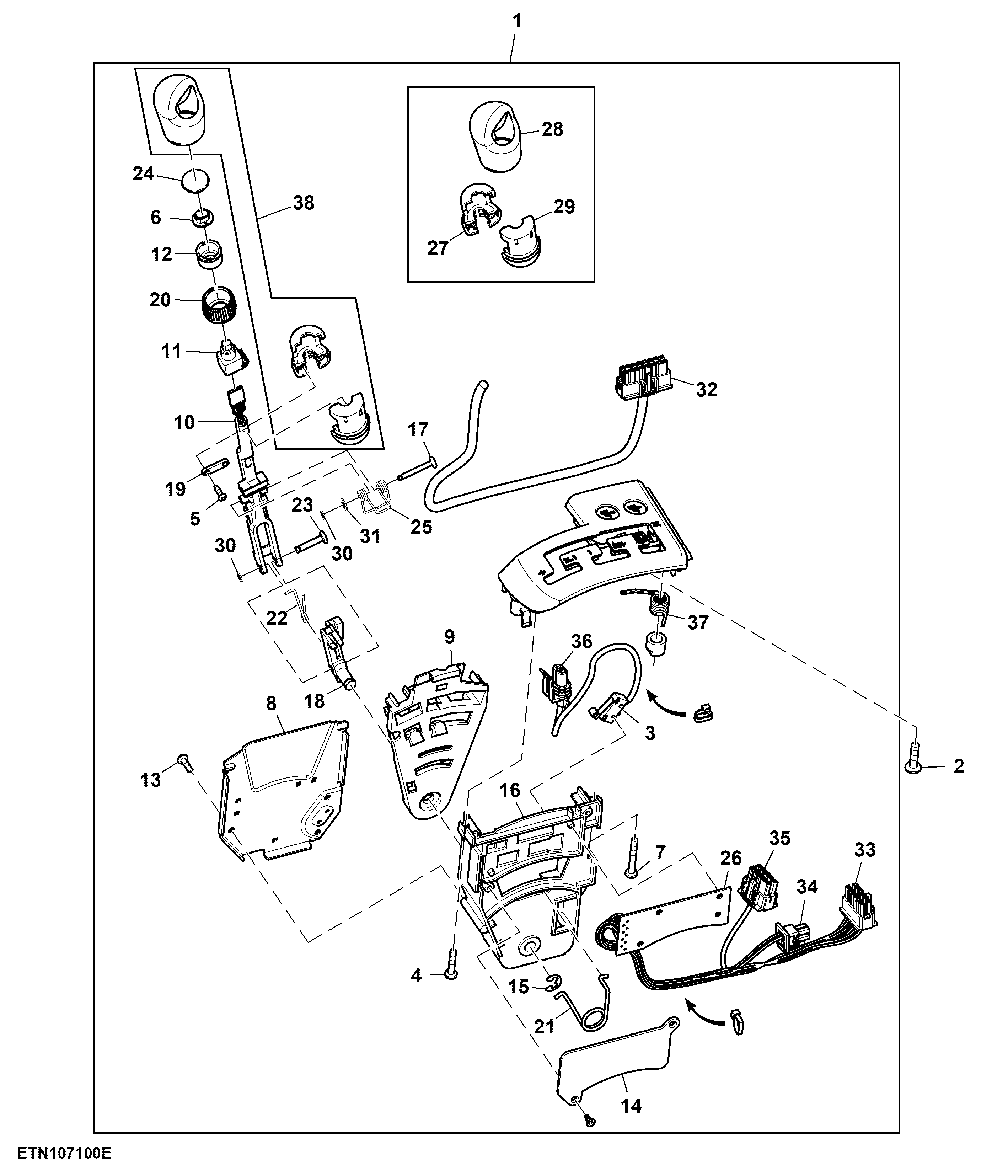

Control, W/ Right Hand Reverser, PST

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE593951	1	Control	SUB FOR RE583255 OR RE564620; ORDER RE594599
2	R542221	2	Screw	-
3	RE174520	1	Switch	Snap Action
4	21M7216	1	Screw	M4 X 20, USE WITH RE583255 OR RE593951
5	37M7342	2	Screw	USE WITH RE583255 OR RE593951
6	L116148	1	Spacer	USE WITH RE583255 OR RE593951
7	21M7276	1	Screw	M4 X 30, USE WITH RE583255 OR RE593951
8	R557168	1	Shield	USE WITH RE583255 OR RE593951
9	RE311400	1	Sector	USE WITH RE583255 OR RE593951
10	RE296819	1	Lever	USE WITH RE583255 OR RE593951
11	RE264614	1	Sensor	Set Speed USE WITH RE583255 OR RE593951
12	L173383	1	Bushing	USE WITH RE583255 OR RE593951
13	R542220	3	Screw	USE WITH RE583255 OR RE593951
14	R558740	1	Cover	USE WITH RE583255 OR RE593951
15	R72654	1	Snap Ring	USE WITH RE583255 OR RE593951
16	R296817	1	Housing	USE WITH RE583255 OR RE593951
17	R121919	1	Pin	USE WITH RE583255 OR RE593951
18	R123999	1	Pivot	USE WITH RE583255 OR RE593951
19	L114994	1	Strap	USE WITH RE583255 OR RE593951
20	R556613	1	Knob	USE WITH RE583255 OR RE593951
21	R569617	1	Spring	USE WITH RE583255 OR RE593951
21	R124241	1	Spring	ORDER R569617; USE WITH RE583255 OR RE593951
22	R124711	1	Spring	USE WITH RE583255 OR RE593951
23	R275315	1	Pin	USE WITH RE583255 OR RE593951
24	L116147	1	Cover	USE WITH RE583255 OR RE593951
25	R134449	1	Spring	USE WITH RE583255 OR RE593951
26	RE556548	1	Circuit Board	USE WITH RE583255 OR RE593951
27	R243380	1	Grip	USE WITH RE583255 OR RE593951; ORDER AL228942
28	R243382	1	Cover	USE WITH RE583255 OR RE593951; ORDER AL228942
29	R243381	1	Grip	USE WITH RE583255 OR RE593951; ORDER AL228942
30	R40687	2	Snap Ring	USE WITH RE583255 OR RE593951
31	24M7117	1	Washer	4.300 X 9 X 0.800 mm
32	57M7717	1	Electrical Connector Assy	A012X4, Armrest Control Unit Connector (16 Pin)
33	57M7716	1	Electrical Connector Assy	A012X3A, Armrest Control Unit Connector (12 Pin)
33	57M7721	1	Electrical Connector Assy	-
34	57M7712	1	Electrical Connector Assy	B068, Speed Control Lever Sensor
34	57M7718	1	Electrical Connector Assy	-
35	57M7470	1	Elec. Connector Housing	X075, Drive Lever Set Speed Connector
35	57M7474	1	Elec. Connector Terminal	-
36	57M7254	1	Elec. Connector Housing	S302, Neutral Start Switch
37	R187690	1	Spring	USE WITH RE583255 OR RE593951
38	AL228942	1	Knob	USE WITH RE583255 OR RE593951

Control, W/ Right Hand Reverser, PST

Нет текстового описания
