Открытый узел

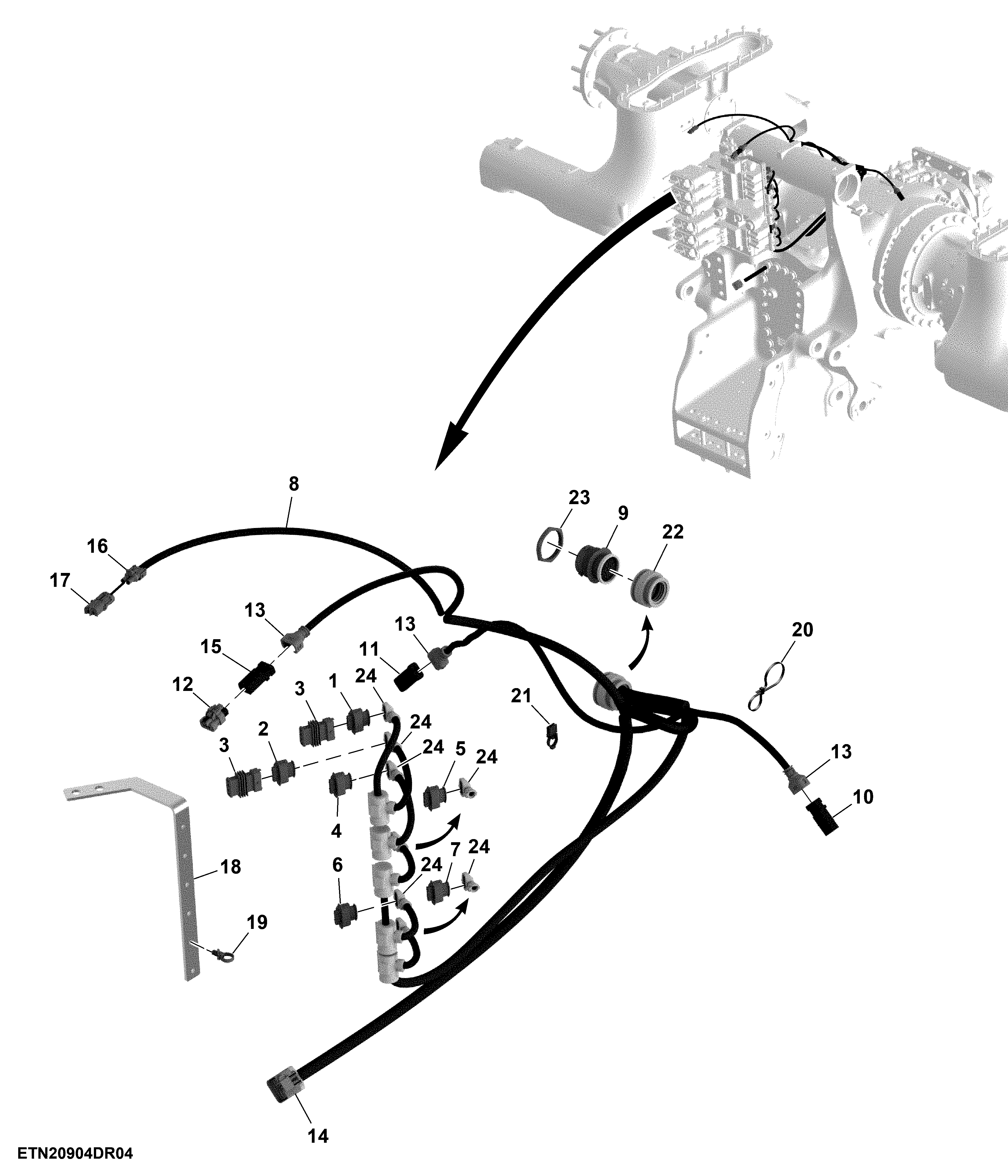

Chassis Wiring Harness, W/O Hitch, Double Reduction Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9500	1	Elec. Connector Accessory	-
1	57M9498	1	Elec. Connector Housing	A706, SCV 6
1	RWA11112	4	Repair Wire Assembly	-
2	57M9498	1	Elec. Connector Housing	A705, SCV 5
2	57M9500	1	Elec. Connector Accessory	-
2	RWA11112	4	Repair Wire Assembly	-
3	57M11354	2	Elec. Connector Housing	-
4	57M9498	1	Elec. Connector Housing	A704, SCV 4
4	RWA11112	4	Repair Wire Assembly	-
5	57M9498	1	Elec. Connector Housing	A703, SCV 3
5	RWA11112	4	Repair Wire Assembly	-
6	57M9498	1	Elec. Connector Housing	A702, SCV 2
6	RWA11112	4	Repair Wire Assembly	-
7	57M9498	1	Elec. Connector Housing	A701, SCV 1
7	RWA11112	4	Repair Wire Assembly	-
8	RE580842	1	Chassis Wiring Harness	-
9	57M11419	1	Elec. Connector Housing	X320B, Chassis to Rear Chassis Harness Interconnect 1
9	RWA10832	2	Repair Wire Assembly	Cavity 3, 4
9	RWA11056	19	Repair Wire Assembly	Cavity 6, 7, 8, 10, 11, 12, 13, 14, 15, 16, 17, 18, 22, 23, 25, 26, 27, 28, 29
10	57M9784	1	Elec. Connector Housing	X125, 4-Track Tension Right Rear
10	RWA11025	3	Repair Wire Assembly	-
11	57M9784	1	Elec. Connector Housing	X124, 4-Track Tension Left Rear
11	RWA11025	3	Repair Wire Assembly	-
12	57M9780	1	Elec. Connector Housing	-
13	57M9838	3	Elec. Connector Accessory	-
14	57M10299	1	Elec. Connector Housing	X017A, Trailer Lighting Connector 2
14	RWA11137	8	Repair Wire Assembly	-
15	57M9784	1	Elec. Connector Housing	X192, Outlet Rear Trailer Lighting and Accessories
15	RWA11025	3	Repair Wire Assembly	-
16	RE12363	1	Electrical Connector Assy	S549A, Implement Switch
16	RWA11147	2	Repair Wire Assembly	-
17	R78053	1	Electrical Connector Assy	-
18	R552932	1	Bracket	SUB FOR APPL R333767
19	57M10233	3	Tie Band	-
20	57M10421	1	Elec. Connector Accessory	-
21	57M10362	1	Clamp	-
22	57M9383	1	Elec. Connector Accessory	-
23	57M8035	1	Nut	-
24	57M11897	1	Elec. Connector Accessory	-

Chassis Wiring Harness, W/O Hitch, Double Reduction Axle
