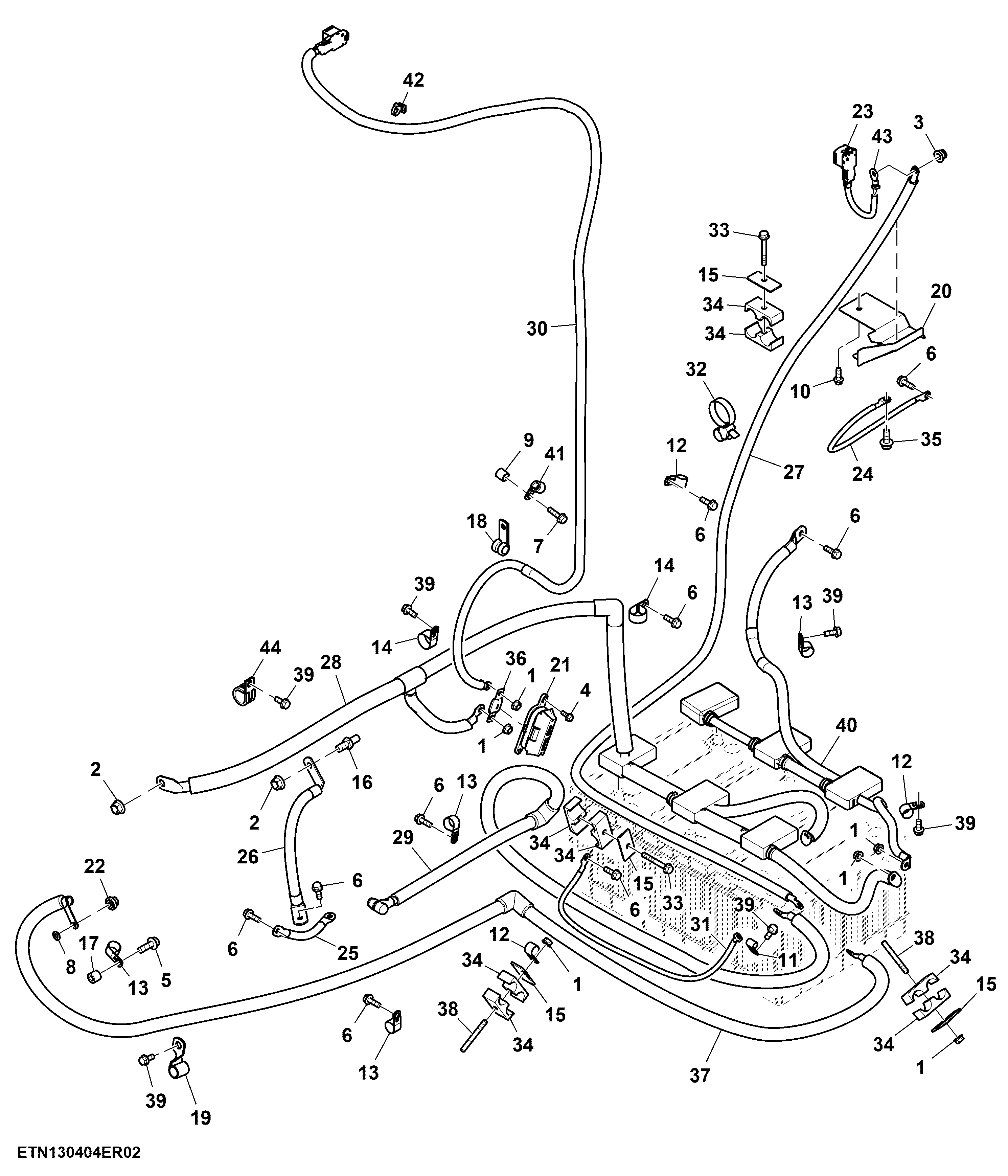

Battery Cable, W/ Back Up Pump, 13.5 L Engine ( - 804100)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	7	Flange Nut	M8
2	14M7299	2	Flange Nut	M12
3	14M7400	1	Lock Nut	M10
4	19M7775	2	Screw	M6 X 16
5	19M7786	1	Screw	M10 X 30
6	19M7867	17	Screw	M8 X 25
7	19M7868	1	Screw	M8 X 30
8	24M7055	1	Washer	8.400 X 16 X 1.600 mm
9	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
10	37M7084	1	Screw	M8 X 25
11	T102934	2	Clamp	-
12	57M9855	5	Clamp	-
13	57M9856	10	Clamp	-
14	57M9858	3	Clamp	-
15	H112567	4	Plate	-
16	R136052	1	Stud	-
17	R244801	1	Spacer	-
18	R343208	1	Clamp	-
19	R543182	1	Clamp	-
20	R553472	1	Bracket	-
21	RE239622	1	Junction Block	-
22	RE285712	1	Nut	-
23	RE304437	1	Battery Cable	(Cab Controller)
24	RE306703	1	Battery Cable	(Power Cable)
25	RE567731	1	Ground Cable	(Backup Pump)
26	RE574057	1	Ground Cable	(Starter)
27	RE575299	1	Battery Cable	(Cab Power)
28	RE575300	1	Battery Cable	(Positive)
29	RE580386	1	Battery Cable	(Positive Backup)
30	RE594427	1	Battery Cable	(Power Cable) INCLUDES (4) 57M9229; SUB FOR RE575307
31	RE575513	1	Battery Cable	(Power Module Ground)
32	T252445	1	Clamp	-
33	19M7801	2	Screw	M8 X 60
34	H115379	8	Clamp	-
35	19M7785	1	Screw	M10 X 25
36	57M9923	1	Elec. Connector Accessory	-
37	RE580383	1	Battery Cable	ORDER RE588463
37	RE588463	1	Battery Cable	-
38	42M7034	2	Stud	-
39	19M7866	7	Screw	M8 X 20
40	RE597671	1	Battery Cable	(Negative) SUB FOR RE581087
41	57M10901	1	Clamp	-
42	57M9229	4	Clip	-
43	57M8901	1	Elec. Connector Terminal	-
44	T120536	1	Clamp	-

Battery Cable, W/ Back Up Pump, 13.5 L Engine ( - 804100)
