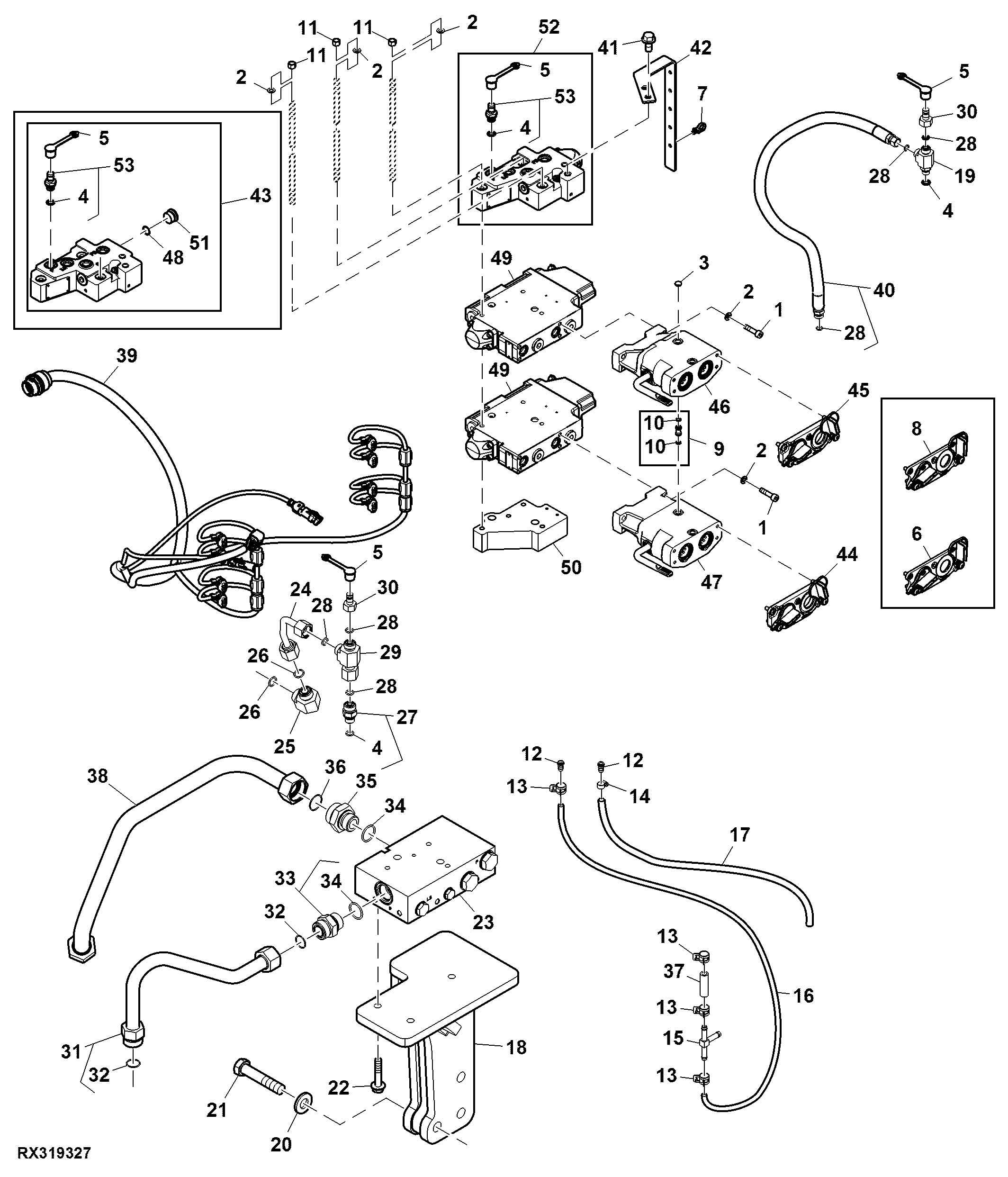

7th and 8th Remote SCV, High Flow, Double Reduction Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R266977	8	Socket Head Screw	-
2	24M7095	11	Washer	8.400 X 15 X 1.600 mm
3	R267667	2	Cap	-
4	51M7041	4	O-Ring	11.300 X 2.200 mm
5	R77175	4	Cover	-
6	RE564097	1	Cover	Number VII, White, SCV Coupler ORDER RE574946
7	57M10233	6	Tie Band	-
8	RE564098	1	Cover	Number VIII, Light Green, SCV Coupler ORDER RE574947
9	RE272882	2	Tube	-
10	R10093	4	O-Ring	-
11	14M7327	3	Lock Nut	M8
12	R267668	2	Hose Fitting	-
13	R202160	4	Clamp	-
14	RE187161	1	Clamp	-
15	N404296	1	Tee Fitting	-
16	R551248	1	Hydraulic Hose	-
17	R184956	1	Hose	-
18	RE566926	1	Bracket	-
19	38H5067	1	Tee Fitting	-
20	24M7242	3	Washer	21.400 X 42 X 5 mm
21	19M9135	3	Cap Screw	M20 X 100
22	19M7790	3	Screw	M12 X 35
23	RE557706	1	Manifold	-
24	RE560509	1	Line	-
25	38H1378	1	Elbow Fitting	-
26	T77857	2	O-Ring	-
27	38H5002	1	Adapter Fitting	-
28	T77613	6	O-Ring	-
29	38H5105	1	Tee Fitting	-
30	RE60701	2	Diagnostic Coupling	-
31	RE560507	1	Line	-
32	T76938	2	O-Ring	-
33	38H5006	1	Adapter Fitting	-
34	51M7048	2	O-Ring	29.600 X 2.900 mm
35	38H5172	1	Adapter Fitting	-
36	T78612	1	O-Ring	-
37	R551249	1	Hydraulic Hose	-
38	RE575426	1	Oil Line	SUB FOR RE560508
39	RE586858	1	Chassis Wiring Harness	SUB FOR RE574000
40	RE572441	1	Hydraulic Hose	-
41	19M7788	2	Screw	M12 X 25
42	R552932	1	Bracket	-
43	RE292728	1	Manifold	ORDER RE271469
44	RE574946	1	Cover	Number VII, White, SCV Coupler
45	RE574947	1	Cover	Number VIII, Light Green, SCV Coupler
46	RE559661	1	Breakaway Coupler	-
47	RE559660	1	Breakaway Coupler	-
48	51M7045	1	O-Ring	19.300 X 2.200 mm, USE WITH RE292728
49	RE308284	2	Selective Control Valve	-
49	RE588375	2	Selective Control Valve	140 LPM, SUB FOR RE580227
50	RE283453	1	Manifold	-
51	R116115	1	Fitting	ALSO ORDER 51M7045; USE WITH RE292728
52	RE271469	1	Manifold	-
53	RE190805	2	Diagnostic Coupling	-

7th and 8th Remote SCV, High Flow, Double Reduction Axle
