Открытый узел

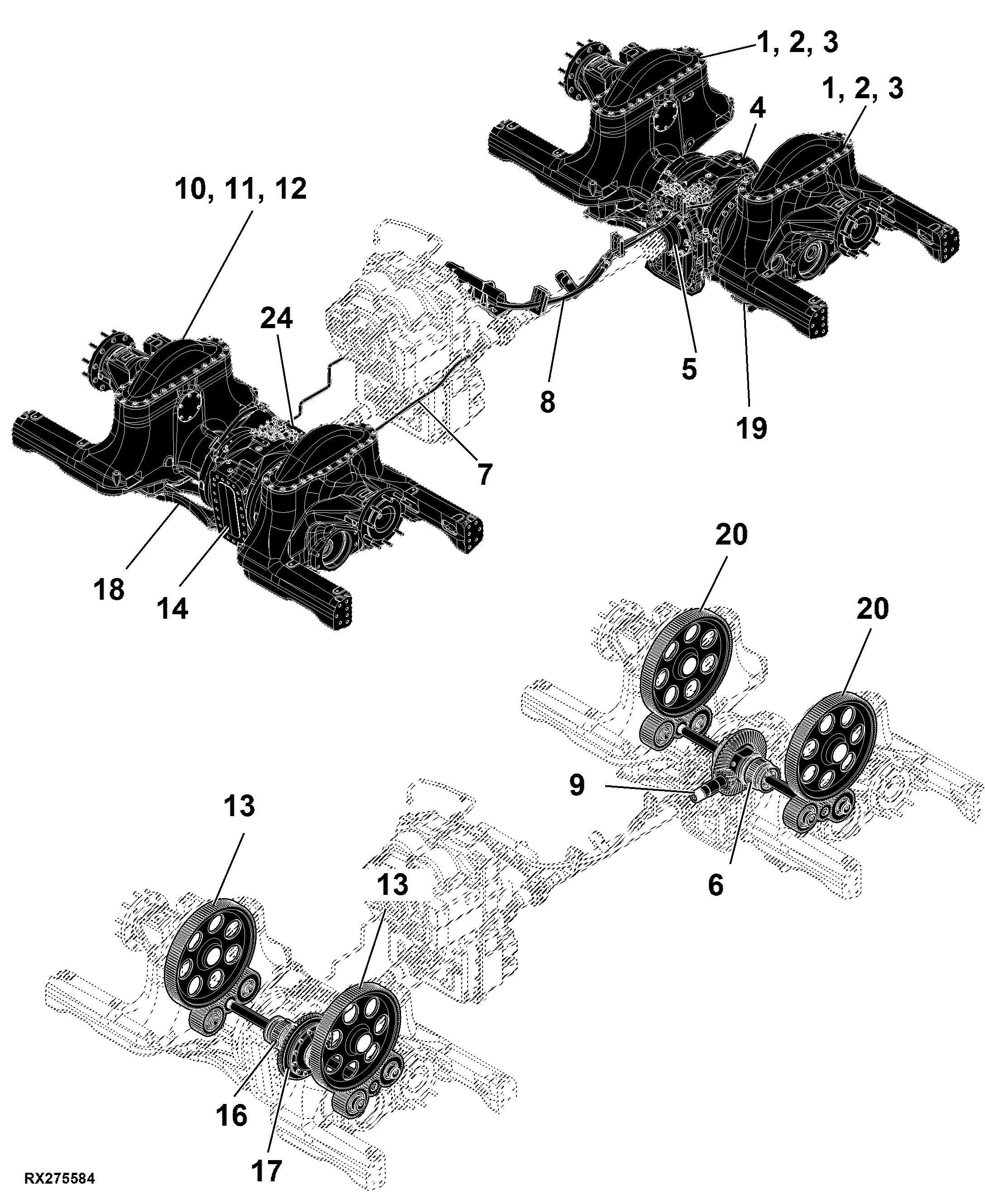

52 Front and Rear Axle

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Rear Axle Assembly, W/ 120" Axle Spacer, Narrow Undercarriage, RH	-
-	-	1	Front Axle Support, 30" Severe Duty Belt (For Scraper)	-
-	-	1	Front Axle, Final Drive, W/ 120" Axle Spacer, Wide Undercarriage (807001 - )	-
-	-	1	Front Axle, Narrow	-
-	-	1	Front Axle, Narrow, 120" Spacer	-
-	-	1	Front Axle, Narrow, 80" Spacer	-
-	-	1	Front Axle, Wide	-
-	-	1	Front Spiral Bevel Drive, Double Reduction	-
-	-	1	Input Cover, Double Reduction Rear Axle	-
-	-	1	Input Cover, Front Axle, Double Reduction	-
-	-	1	Oil Line, Differential Lock, PST, Double Reduction Axle	-
-	-	1	Rear Axle Assembly, 30" / 36" Standard / Severe Duty Belt, LH	-
-	-	1	Rear Axle Assembly, 30" / 36" Standard / Severe Duty Belt, RH	-
-	-	1	Rear Axle Assembly, W/ 120" Axle Spacer, Narrow Undercarriage, LH	-
-	-	1	Front Axle Assembly, W/ 88" Spacer, RH	-
-	-	1	Rear Axle Assembly, W/ 120" Axle Spacer, Wide Undercarriage, LH (807001 - )	-
-	-	1	Rear Axle Assembly, W/ 120" Axle Spacer, Wide Undercarriage, RH (807001 - )	-
-	-	1	Rear Axle Assembly, W/ 80" Spacer, LH	-
-	-	1	Rear Axle Assembly, W/ 80" Spacer, RH	-
-	-	1	Rear Axle Assembly, W/ 88" Spacer, LH	-
-	-	1	Rear Axle Assembly, W/ 88" Spacer, RH	-
-	-	1	Rear Axle Support, 30" / 36" Belt, Standard / Severe Duty, W/ Hitch	-
-	-	1	Rear Axle, Final Drive, W/ 120" Axle Spacer, Wide Undercarriage (807001 - )	-
-	-	1	Rear Axle, Narrow, 120" Spacer	-
-	-	1	Rear Axle, Narrow, 80" Spacer	-
-	-	1	Rear Axle, Narrow, 88" Spacer	-
-	-	1	Rear Axle, Wide	-
-	-	1	Rear Spiral Bevel Drive, Double Reduction	-
-	-	1	Final Drive, Rear Axle, 18" / 24" Belt, 120" Spacer	-
-	-	1	Axle Conversion Kit, 120" Tread Spacing, Attachment	-
-	-	1	Axle Conversion Kit, 18”/ 24” Track Belts, 80" Tread Spacing, Attachment	-
-	-	1	Axle Conversion Kit, 18”/ 24” Track Belts, 88" Tread Spacing, Attachment	-
-	-	1	Axle Conversion Kit, 30”/ 36” Track Belts, 88" Tread Spacing, Attachment	-
-	-	1	Axle Lubrication Line, Double Reduction, PST	-
-	-	1	Case, Front Differential, W/ Double Reduction Axle	-
-	-	1	Case, Rear Differential, Double Reduction Axle	-
-	-	1	Differential, Double Reduction Rear Axle	-
-	-	1	Differential, Front Axle, Double Reduction	-
-	-	1	Final Drive, Front Axle, 18" / 24" Belt, 120" Spacer	-
-	-	1	Final Drive, Front Axle, 18" / 24" Belt, 80" Axle Spacer	-
-	-	1	Final Drive, Front Axle, 18" / 24" Belt, 88" Spacer	-
-	-	1	Final Drive, Front Axle, 30" / 36" Belt, 88" Axle Spacer	-
-	-	1	120" Axle Conversion, W/ 30"/36" Track Belt, ( For North America, Australia and New Zealand ), Attachment	-
-	-	1	Final Drive, Rear Axle, 18" / 24" Belt, 80" Axle Spacer	-
-	-	1	Final Drive, Rear Axle, 18" / 24" Belt, 88" Spacer	-
-	-	1	Final Drive, Rear Axle, 30" / 36" Belt, 88" Axle Spacer	-
-	-	1	Front Axle Assembly, 30" / 36" Standard/Severe Duty Belt, LH	-
-	-	1	Front Axle Assembly, 30" / 36" Standard/Severe Duty Belt, RH	-
-	-	1	Front Axle Assembly, W/ 120" Axle Spacer, Narrow Undercarriage, LH	-
-	-	1	Front Axle Assembly, W/ 120" Axle Spacer, Narrow Undercarriage, RH	-
-	-	1	Front Axle Assembly, W/ 120" Axle Spacer, Wide Undercarriage, LH (807001 - )	-
-	-	1	Front Axle Assembly, W/ 120" Axle Spacer, Wide Undercarriage, RH (807001 - )	-
-	-	1	Front Axle Assembly, W/ 80" Spacer, LH	-
-	-	1	Front Axle Assembly, W/ 80" Spacer, RH	-
-	-	1	Front Axle Assembly, W/ 88" Spacer, LH	-

52 Front and Rear Axle

Нет текстового описания
