Line, Steering, W/O Hitch, 130 cc (2/2) (917101 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE345744	1	Hydraulic Hose	Steering Pump Supply SUB FOR RE583537
2	RE584518	1	Hydraulic Hose	Pump to Motor
3	RE584520	1	Hydraulic Hose	Pump to Motor
4	RE584567	1	Hydraulic Hose	Inlet of Filter to Pump
5	38H5005	1	Adapter Fitting	INCLUDES 51M7047
6	T77858	1	O-Ring	-
7	51M7047	2	O-Ring	23.600 X 2.900 mm
8	RE587769	1	Hydraulic Hose	Steering Motor Case Drain SUB FOR RE584616
9	RE587782	1	Hydraulic Hose	Pump to Tank SUB FOR RE583874
10	RE584121	1	Hydraulic Hose	Filter Outlet to Pump
11	38H5071	1	Elbow Fitting	-
12	T77857	3	O-Ring	-
13	51M7043	2	O-Ring	15.300 X 2.200 mm
14	Z102278	1	Clamp	-
15	19M7866	2	Screw	M8 X 20
16	28H3399	1	Spacer	0.493" X 0.675" X 2-3/4"
17	AH77714	3	Clip	-
18	19M7913	1	Screw	M8 X 90
19	H115379	2	Clamp	-
20	H112567	1	Plate	-
21	H114897	2	Clamp	SUB FOR APPL H135155
22	L173496	1	Stud	-
23	14M7298	1	Flange Nut	M8
24	38H5009	1	Adapter Fitting	INCLUDES 51M7041
25	51M7041	3	O-Ring	11.300 X 2.200 mm
26	38H5010	1	Adapter Fitting	-
27	T77932	2	O-Ring	-
28	38H5020	1	Elbow Fitting	-
29	51M7048	1	O-Ring	29.600 X 2.900 mm
30	T76938	6	O-Ring	-
31	38H5408	1	Adapter Fitting	-
32	38H1037	1	Elbow Fitting	-
33	R29936	1	O-Ring	-
34	RE584549	1	Hydraulic Hose	Lube Line
35	38H5002	1	Adapter Fitting	INCLUDES 51M7041
36	T77613	5	O-Ring	-
37	38H5076	1	Adapter Fitting	INCLUDES 51M7045
38	51M7045	1	O-Ring	19.300 X 2.200 mm
39	R559682	1	Block Clamp	-
40	R562964	1	Block Clamp	-
41	38H5208	1	Adapter Fitting	-
42	38H5022	2	Elbow Fitting	INCLUDES 51M7040
43	51M7040	3	O-Ring	9.300 X 2.200 mm
44	38H5008	1	Adapter Fitting	INCLUDES 51M7040
45	38H5152	1	Adapter Fitting	-
46	R560564	1	Block Clamp	-
47	RE584581	1	Bracket	-
48	19M7970	3	Screw	M8 X 100
49	RE584580	1	Bracket	-
50	RE587296	1	Hydraulic Hose	Filter Bypass
51	RE587298	1	Hydraulic Hose	Pump Control Drain
52	38H5504	1	Tee Fitting	-
53	51M7049	1	O-Ring	38.600 X 2.900 mm
54	RE583891	1	Hydraulic Hose	Charge Line Loop Over Ride Valve

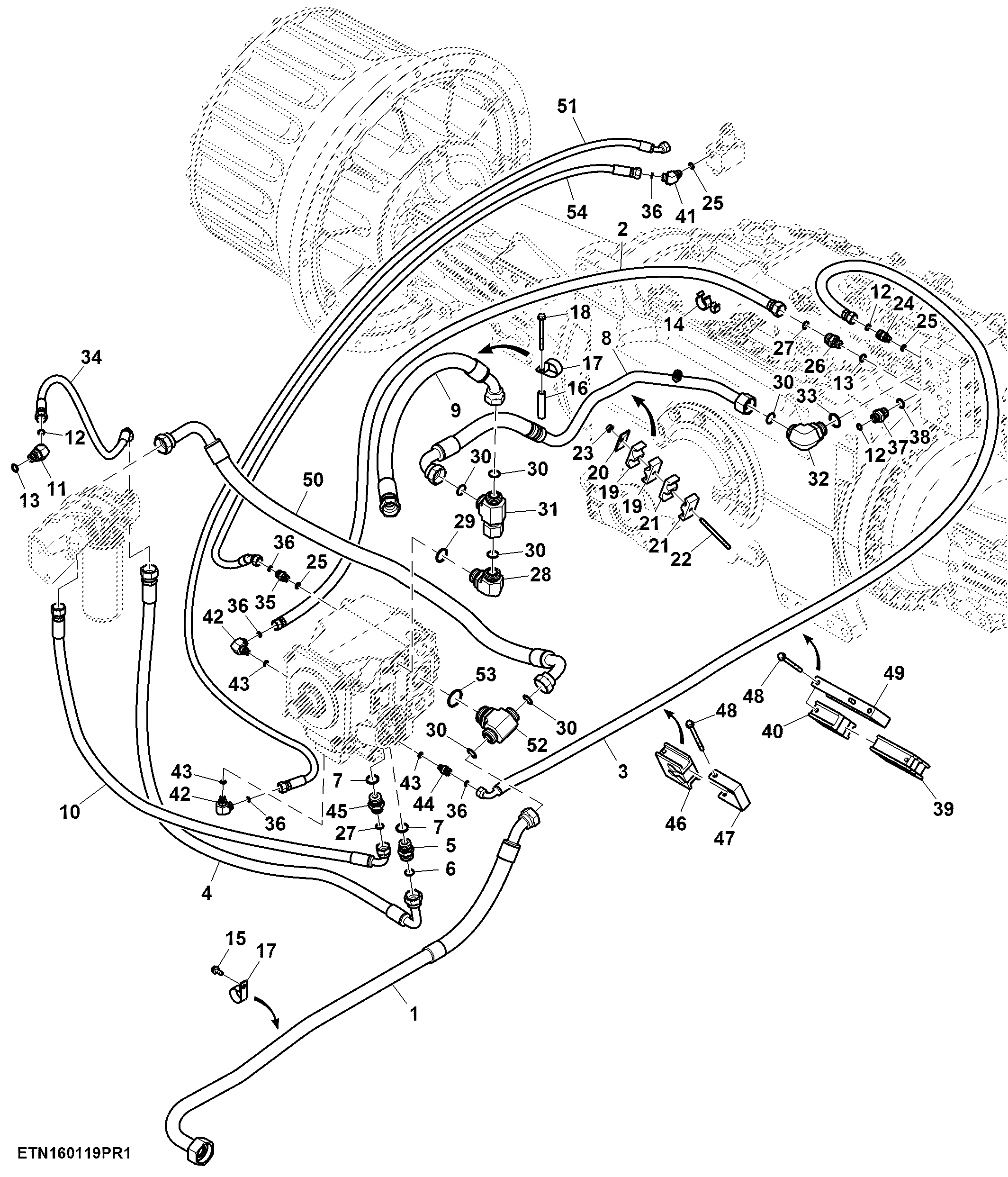

Line, Steering, W/O Hitch, 130 cc (2/2) (917101 - )
