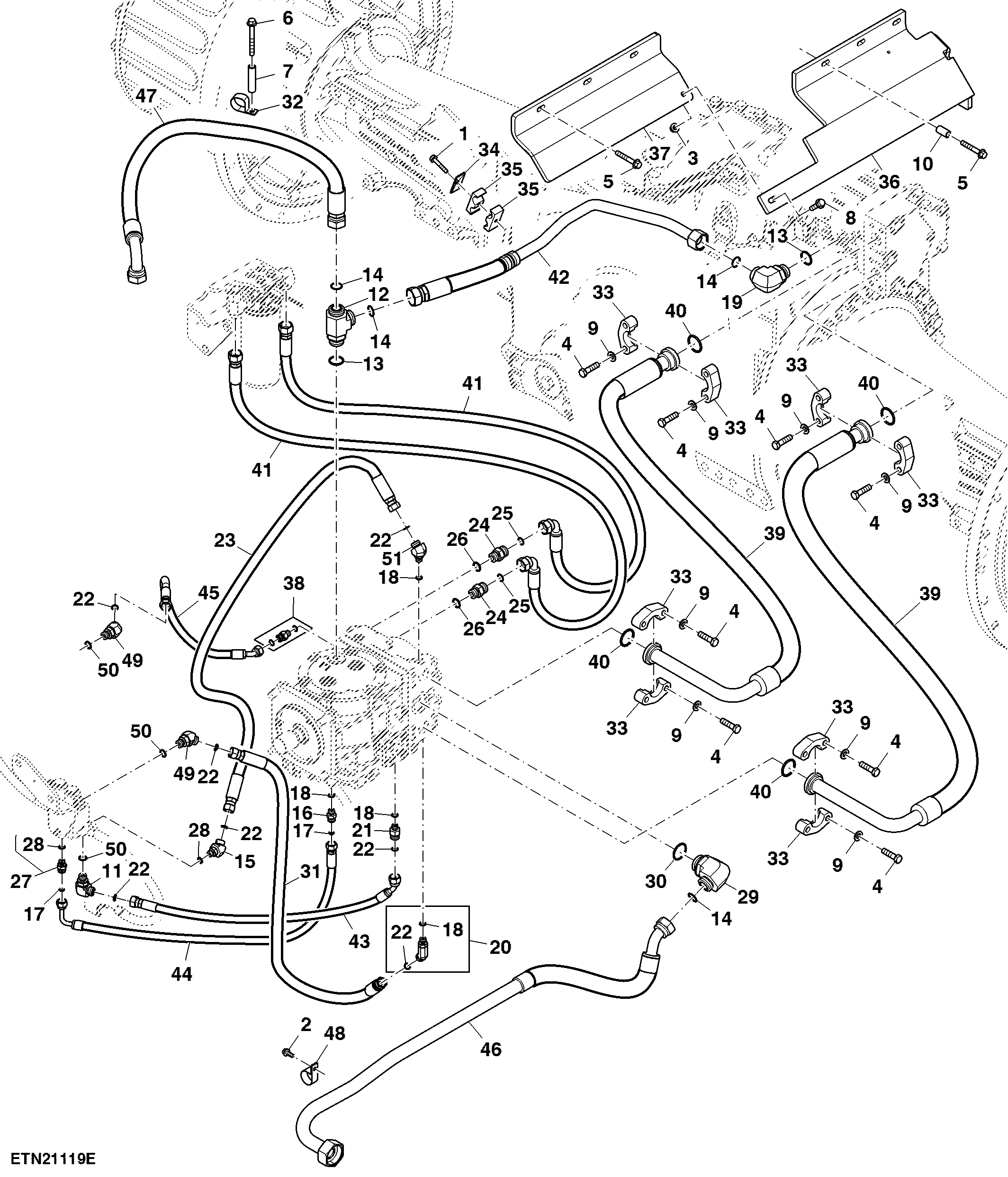

Line, Steering, W/ Hitch, 130 cc ( - 907347)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8318	1	Screw	M8 X 45
2	19M7866	2	Screw	M8 X 20
3	14M7296	1	Flange Nut	M10
4	19M7496	16	Cap Screw	M12 X 45
5	19M7808	6	Screw	M10 X 65
6	19M7913	1	Screw	M8 X 90
7	28H3399	1	Spacer	0.493" X 0.675" X 2-3/4"
8	19M8162	1	Screw	M10 X 40
9	24M7047	16	Washer	13 X 24 X 2.500 mm
10	28H3387	3	Bushing	0.493" X 0.675" X 1-1/4"
11	38H5017	1	Elbow Fitting	INCLUDES 51M7043
12	38H1027	1	Tee Fitting	-
13	R29936	2	O-Ring	-
14	T76938	4	O-Ring	-
15	38H5194	1	Elbow Fitting	-
16	38H1160	1	Adapter Fitting	-
17	T77613	2	O-Ring	-
18	R26448	4	O-Ring	-
19	38H1037	1	Elbow Fitting	-
20	RE569417	1	Fitting	-
21	38H1173	1	Adapter Fitting	-
22	T77857	7	O-Ring	-
23	RE566266	1	Hydraulic Hose	Loop Override Right
24	38H1162	2	Adapter Fitting	-
25	T77932	2	O-Ring	-
26	R26906	2	O-Ring	-
27	38H5002	1	Adapter Fitting	INCLUDES 51M7041
28	51M7041	2	O-Ring	11.300 X 2.200 mm
29	38H1325	1	Elbow Fitting	-
30	U13639	1	O-Ring	-
31	RE566265	1	Hydraulic Hose	Loop Override Left
32	AH77714	1	Clip	-
33	AT131685	8	Flange Fitting	-
34	H112567	1	Plate	-
35	H114897	2	Clamp	-
36	R307877	1	Cover	-
37	R307879	1	Cover	-
38	RE195863	1	Check Valve	-
39	RE296951	2	Hydraulic Hose	INCLUDES (2) T78393
40	T78393	4	O-Ring	-
41	RE296957	2	Hydraulic Hose	Steering Filter
42	RE296965	1	Hydraulic Hose	Steering Motor Case
43	RE314891	1	Hydraulic Hose	Steering Loop Override
44	RE314892	1	Hydraulic Hose	Steering Loop Override
45	RE331715	1	Hydraulic Hose	Steering Pump To Gear Box
46	RE345744	1	Hydraulic Hose	Steering Pump Supply
47	RE572072	1	Hydraulic Hose	Steering Pump Return
48	R112693	2	Clamp	-
49	38H5071	2	Elbow Fitting	-
50	51M7043	3	O-Ring	15.300 X 2.200 mm
51	38H1521	1	Elbow Fitting	-

Line, Steering, W/ Hitch, 130 cc ( - 907347)

Нет текстового описания
